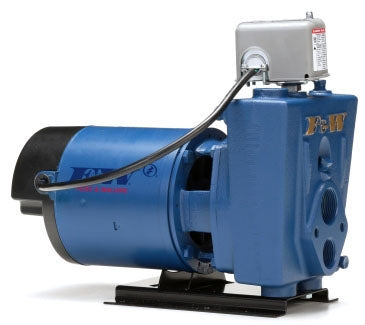

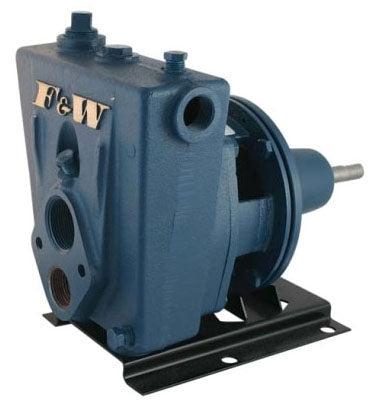

Flint & Walling CPJ07B Jet Pump 3/4 HP 115/230 VAC Convertible Horizontal Jet Pump

Product Description

Designed for reliability and efficiency, the Flint & Walling CPJ07B convertible jet pump is perfect for shallow or deep well applications. Manufactured with robust gray iron casing and featuring a powerful 3/4 HP double ball bearing motor, this pump operates at a speed of 3450 RPM and can manage pressures up to 150 PSI.

• Dual voltage support ensuring easy installation across varying electrical systems.
• Incorporation of silicon carbide self-adjusting shaft seals enhances durability and operational stability.
• Includes a pressure switch and pressure regulator for optimal control.

Product Highlights

The CPJ07B pump is expertly designed for both durability and performance, featuring a double ball bearing motor construction that promises a long operational lifespan and minimal maintenance needs. Its capacity to manage a wide range of applications from shallow to deep wells makes it versatile for various plumbing requirements.

Product Information

Standard Information

• Type: Convertible, Horizontal
• Flow Rate: 1800 GPH

Technical Specifications

• Power Rating: 3/4 HP
• Input Supply Rating: 14 Amp at 115 Volt AC/7 Amp at 230 Volt AC
• Pressure Switch Setting: 30 to 50 PSI
• Casing and Housing Material: Gray Iron
• Impeller Material: Molded Thermoplastic
• Shaft Seal Details: Silicon Carbide Face, Self-Adjusting
• Speed Rating: 3450 RPM
• Pressure Rating: 150 PSI
