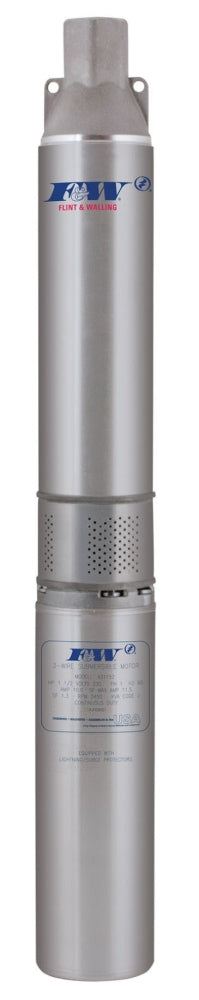

Flint & Walling 4F10S10305 1 HP 10 GPM 230 VAC Submersible Well Pump

Product Description

The Flint & Walling 4F10S10305 is a 1 HP submersible pump designed for efficient water transfer in various applications. This pump is perfect for home, farm, and industrial use.

• Discharge capability of ten gallons per minute (GPM)
• Can handle a discharge head of up to four hundred seventy feet
• Constructed from durable stainless steel for long-lasting service

Product Highlights

Efficient and reliable, the 4F10S10305 is a solution for deep well pumping needs. It features a fifteen-stage design to maximize flow rates and pressure.

Product Information

Standard Information

• Manufacturer: Flint & Walling
• MPN: 4F10S10305

Technical Specifications

• Product ID: 54107
• Flow Rate: 10 GPM
• Power Rating: 1 HP
• Input Voltage: 230 VAC
• Speed Rating: 3450 RPM
• Pressure Rating: 203 PSI
• Discharge Head: 470 Foot
• Discharge Size: 1-1/4 Inch
• Material: 304 Stainless Steel
• Shaft Material: 304 Stainless Steel
• Impeller Material: Noryl
• Well Diameter: 4 Inch
• Motor Lead Type: 2-Wire
• Application: Domestic and Commercial
