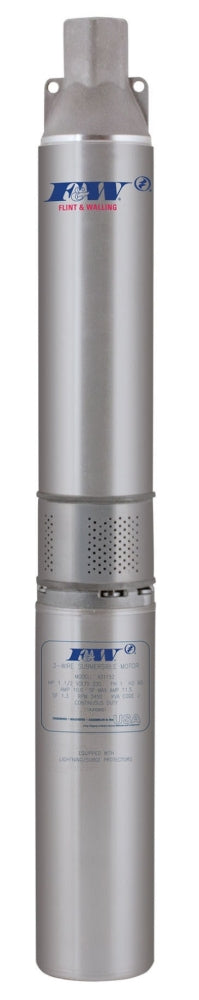

Flint & Walling 4F10S10301 Submersible Well Pump Stainless Steel 1HP 230V

Product Description

The Flint & Walling 4F10S10301 is a robust submersible well pump designed for efficient water extraction. Featuring a 1-1/4 inch NPT discharge and a powerful 1 HP motor, this pump is perfect for 4 inch well diameters, providing a sustainable flow rate of 10 gallons per minute up to a discharge head of 470 feet.

• High-strength 304 stainless steel construction ensures durability and corrosion resistance.
• Equipped with a 15-stage design for enhanced pressure stability.
• Three-wire motor lead setup promotes reliable and secure electrical connections.

Product Highlights

This pump incorporates advanced features like a safety rope eyelet, check valve poppet, and a heavy wall stainless steel pump shell. Ideal for diverse settings including homes, farms, and industrial applications, boasting CSA certification for both Canada and the US.

Product Information

Standard Information

• Brand Name: Flint & Walling
• Series/Model: 4F, S

Technical Specifications

• Type: 15-Stage Submersible Pump
• Discharge Size: 1-1/4 Inch
• Flow Rate: 10 GPM
• Power Rating: 1 HP
• Input Supply Rating: 230 Volt AC, 60 Hertz, 1-Phase
• Speed Rating: 3450 RPM
• Pressure Rating: 203 PSI
• Shaft Material: 304 Stainless Steel
• Housing Material: 304 Stainless Steel
• Impeller Material: Noryl
