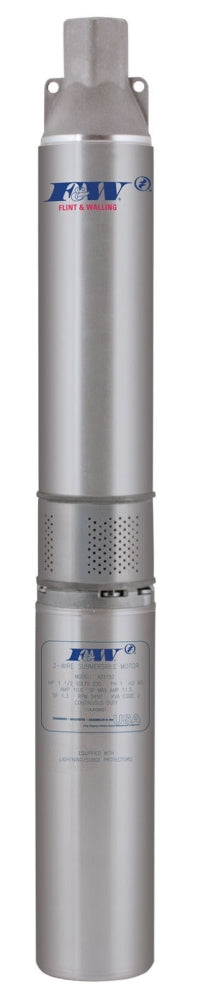

Flint & Walling 4F10S05301 1-1/4 NPT Discharge, 1/2 HP, 230 VAC 60 Hz Submersible Pump

Product Description

The Flint & Walling 4F10S05301 is a submersible pump designed for reliable performance in various applications. It features a discharge size of one and one-fourth inches and is suited for wells with a minimum diameter of four inches. This pump is capable of delivering a flow rate of ten gallons per minute against a maximum discharge head of two hundred fifty feet.

• Powerful 1/2 HP motor.
• Constructed with durable 304 stainless steel.
• Suitable for home, farm, and commercial applications.

Product Highlights

This submersible pump includes features such as a safety rope eyelet, check valve poppet, and elastomer sealing ring to provide enhanced reliability and performance.

Product Information

Standard Information

• Brand: Flint & Walling
• UPC: 05475704444

Technical Specifications

• Power Rating: 1/2 HP
• Input Supply Rating: 230 Volt AC 60 Hertz 1-Phase
• Speed Rating: 3450 RPM
• Flow Rate: 10 GPM
• Discharge Head: 250 Foot
• Pressure Rating: 108 PSI
• Overall Dimensions: 3.72 Inch Diameter
• Shaft Material: Stainless Steel
• Housing Material: 304 Stainless Steel
• Impeller Material: Noryl
• Applicable Standard: UL 778, CSA (Canada and US)
