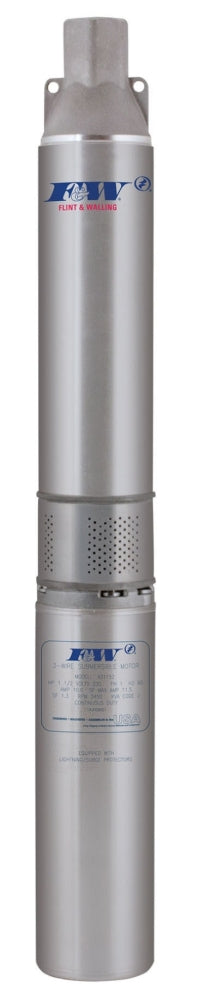

Flint & Walling 4F10S05001 Submersible Pump 1/2 HP 115V 10 GPM

Product Description

Engineered for reliability, the Flint & Walling 4F10S05001 is a high-performance submersible pump designed for deep wells. Ideal for home, farm, and commercial use, this pump features a robust stainless steel construction and delivers efficient water extraction capabilities.

• Effective 1-1/4 inch NPT threaded discharge for consistent water flow.
• Robust 304 stainless steel build enhances durability and longevity.
• Advanced 3-wire motor lead for optimal electrical conductivity.

Product Highlights

This submersible pump operates at a power rating of 1/2 HP, achieving a maximum flow rate of 10 gallons per minute (GPM) and a discharge head of 250 feet. Its 8-stage design ensures optimal performance for varying water depths and supply needs.

Product Information

Standard Information

• Dimensions: 3.72 Inch Diameter
• Pressure: 108 PSI

Technical Specifications

• Motor Type: 3-Wire, 115 Volt AC, 60 Hertz, 1-Phase
• Speed: 3450 RPM
• Material: Housing, Shaft, and Screen all made of 304 Stainless Steel
• Impeller Material: Noryl
• Features: Includes Safety Rope Eyelet, Check Valve Poppet, Heavy Wall Stainless Steel Pump Shell
• Applicable Standards: CSA Certified for Canada and US
