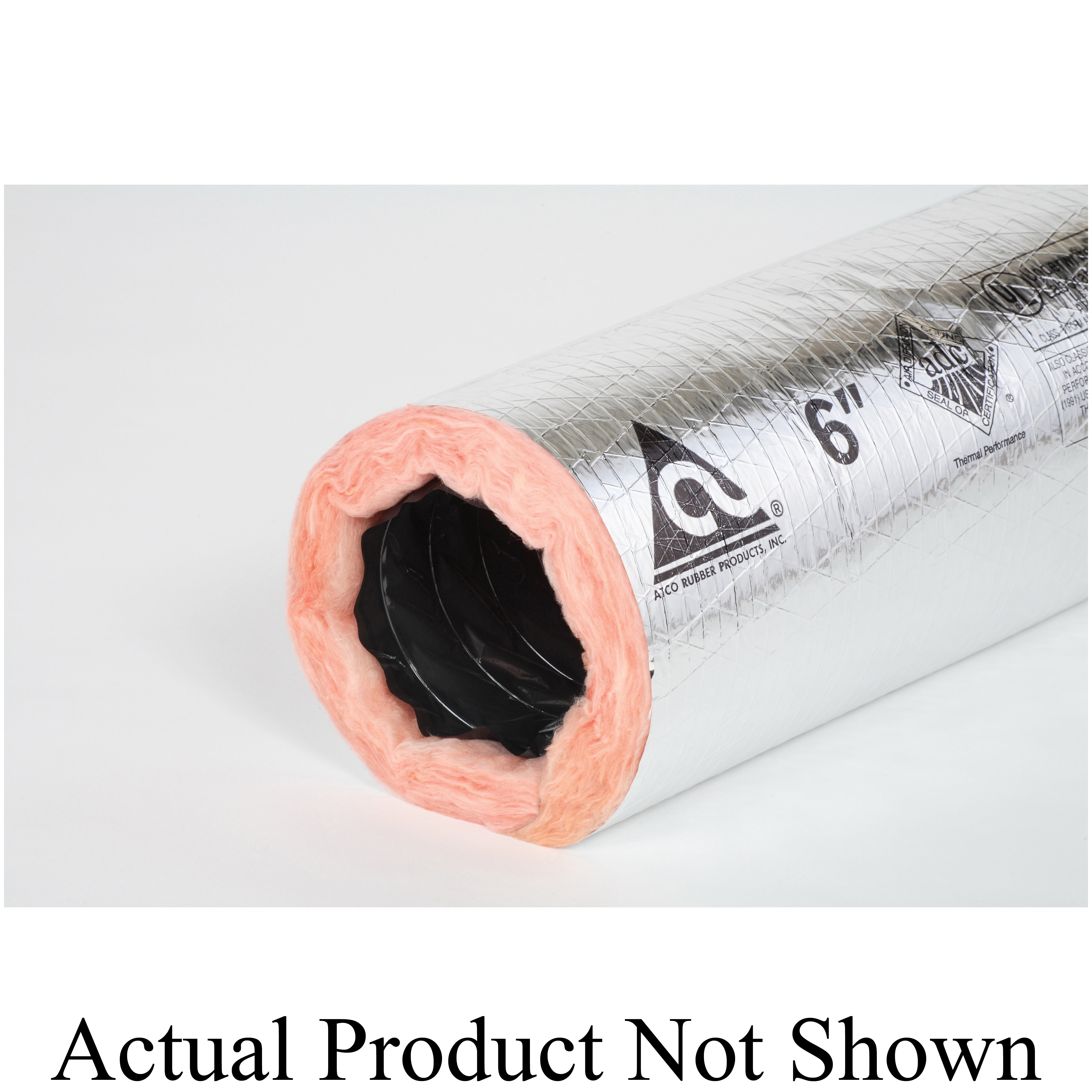

Atco 13602418 Insulated Flexible Air Duct 5000 fpm 18 in ID x 25 ft

Product Description

The Atco 13602418 is an insulated flexible air duct designed for residential and commercial HVAC systems. This product features an eighteen inch inside diameter with a length of twenty-five feet. It supports up to five thousand feet per minute flow rate and comes with R6 insulation for effective thermal management.

• Constructed from polyester, fiberglass, and metalized polyester
• UL 181 Class 1 certification ensures safety and reliability
• Suitable for both supply and return air applications

Product Highlights

This flexible duct is engineered for low-to-medium pressure systems.

Product Information

Standard Information

• Brand: Atco
• Manufacturer: Atco Rubber Products

Technical Specifications

• Type: Insulated
• Inside Diameter: 18 in
• Length: 25 ft
• Flow Rate: 5000 fpm
• Insulation Value: R6
• Material: Polyester/Fiberglass/Metalized Polyester
• Pressure Rating: -3/4 to 4 in-WG
• Temperature Rating: -20 to 140 deg F
• Vapor Transmission: 0.05 perm
