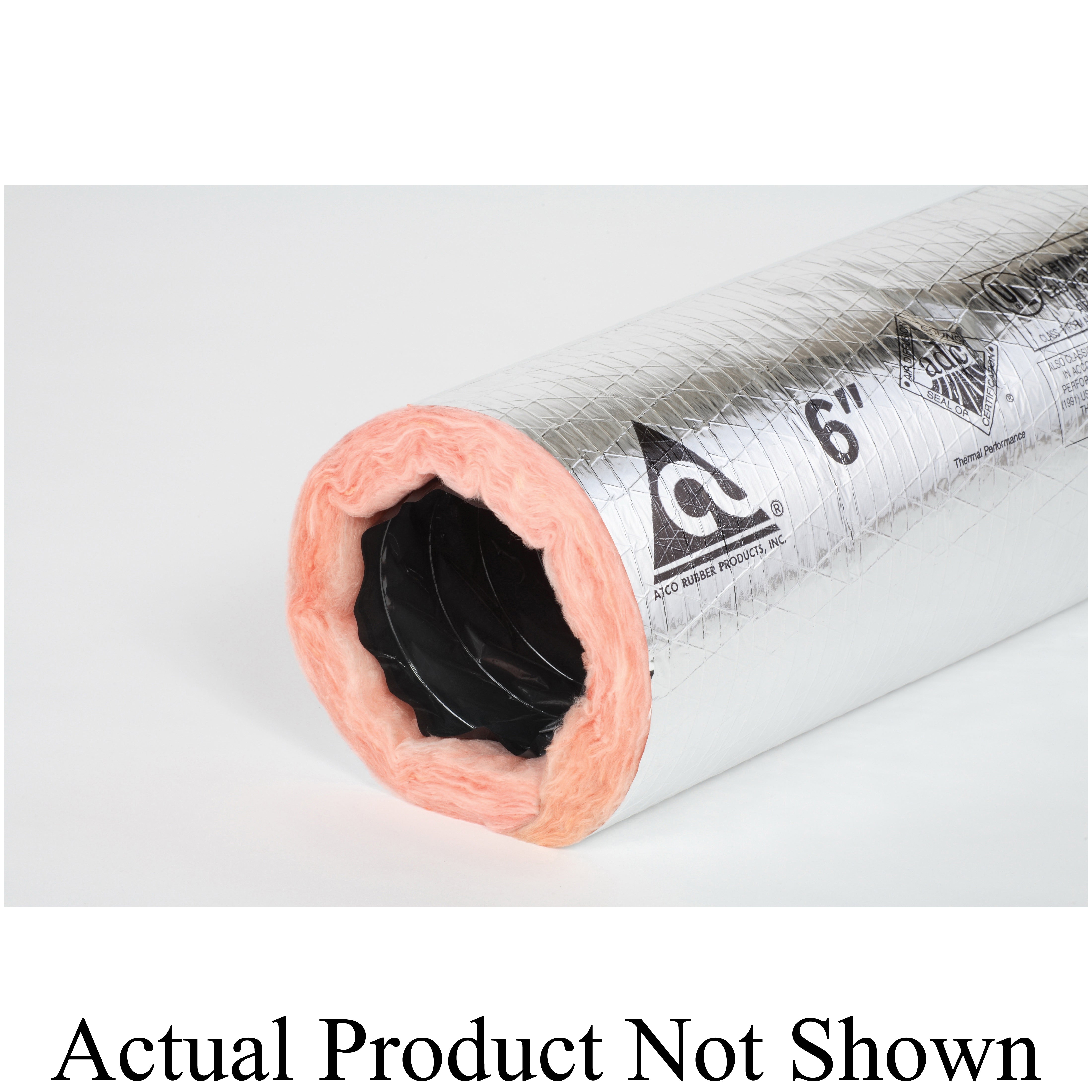

Atco 13602405 Insulated Flexible Air Duct 5 in ID x 25 ft L R6 Insulation

Product Description

The Atco 13602405 is an insulated flexible air duct designed for both residential and commercial HVAC applications. With a five-inch inside diameter and a length of twenty-five feet, this duct facilitates efficient air distribution in low-to-medium pressure systems. It features a robust construction comprising polyester, fiberglass, and a metalized polyester outer layer.

• Type: Insulated Flexible Air Duct
• Flow Rate: 5000 fpm
• R6 Insulation Value

Product Highlights

This flexible air duct is suitable for use in complete air duct systems or branch ducts connecting to terminal devices. Its effective insulation helps maintain temperature, promoting energy efficiency.

Product Information

Standard Information

• Brand: Atco
• Manufacturer: Atco Rubber Products

Technical Specifications

• Material: Polyester/Fiberglass/Metalized Polyester
• Length: 25 feet
• Inside Diameter: 5 inches
• Pressure Rating: -1 to 6 in-WG
• Temperature Rating: -20 to 140 degrees F
• Insulation Value: R6
• Vapor Transmission: 0.05 perm
• Suitable For Use With: Complete air duct system and terminal devices
