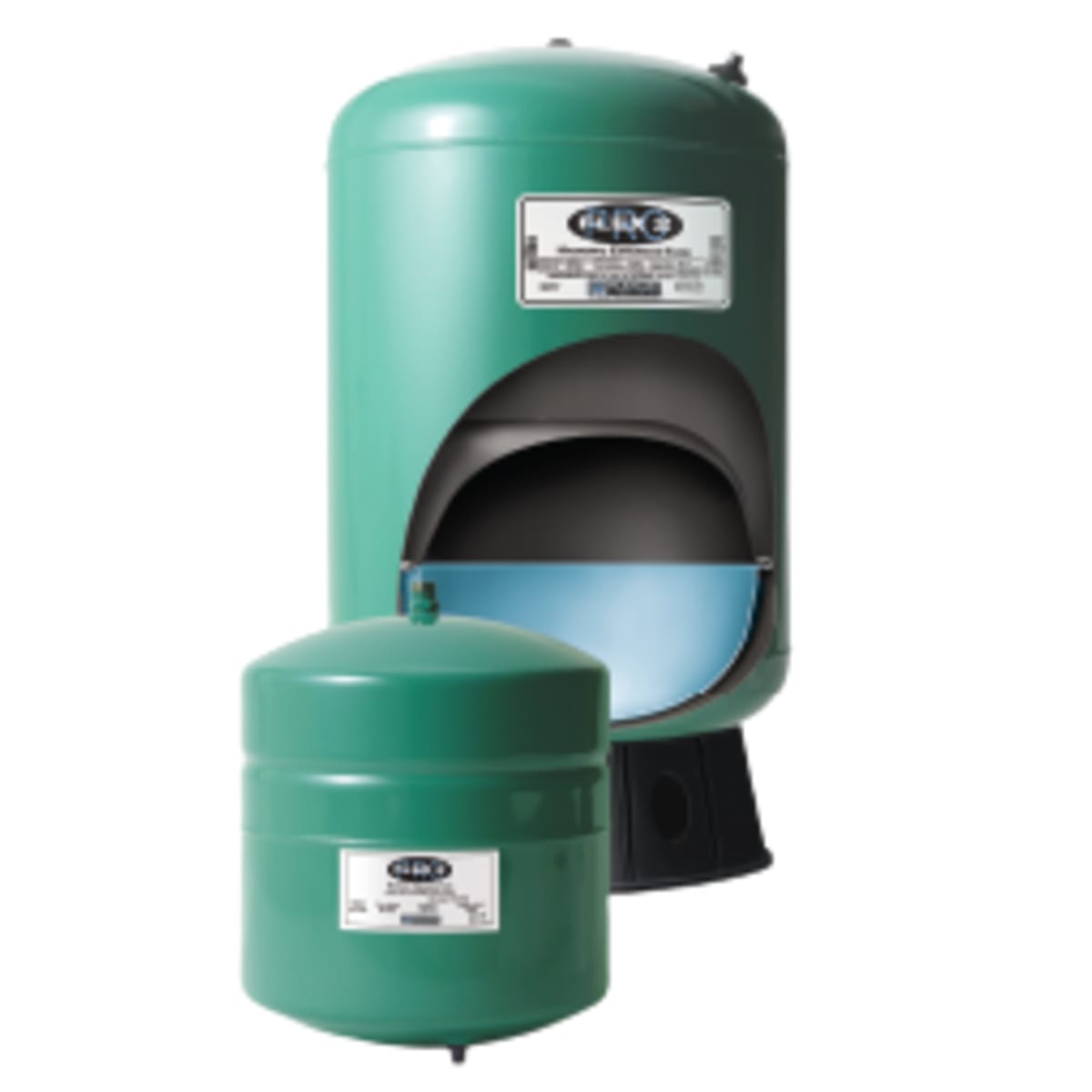

Flexcon SXHT90 Flex2Pro SXHT Hydronic Expansion Tank 44 Gallon

Product Description

The Flexcon SXHT90 is a hydronic expansion tank designed for use in heating systems. This tank has a capacity of forty-four gallons and features a one and one-fourth inch FIP connection. The Flexcon SXHT90 operates effectively under a maximum pressure of one hundred psi and is constructed from durable cold rolled steel. Its diaphragm is made of butyl rubber, ensuring a long service life.

• Capacity: 44 gallons
• Maximum Working Pressure: 100 psi
• Temperature Rating: 240 degrees Fahrenheit

Product Highlights

This expansion tank supports hydronic heating systems by absorbing excess pressure and providing additional water capacity. Its design incorporates an oversized diaphragm to maximize drawdown and minimize wear.

Product Information

Standard Information

• Brand: Flexcon
• MPN: SXHT90

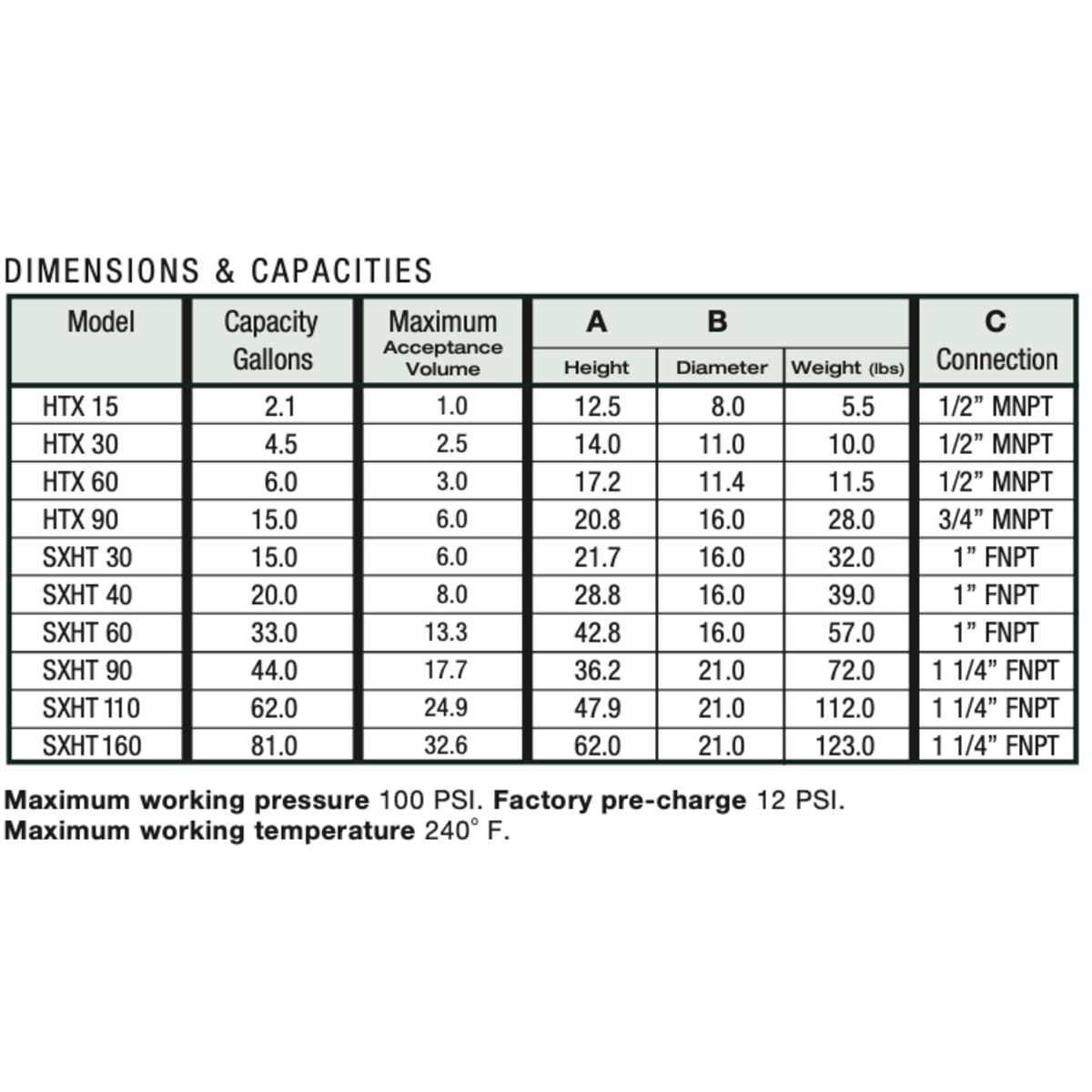

Technical Specifications

• Type: Hydronic Expansion Tank
• Material: Steel
• Height: 36.2 inches
• Diameter: 21 inches
• Acceptance Capacity: 17.7 gallons
• Finish Color: Green
• Warranty: 5 Years
• Maximum Working Water Pressure: 100 psi
• Maximum Working Water Temperature: 240F Degrees
