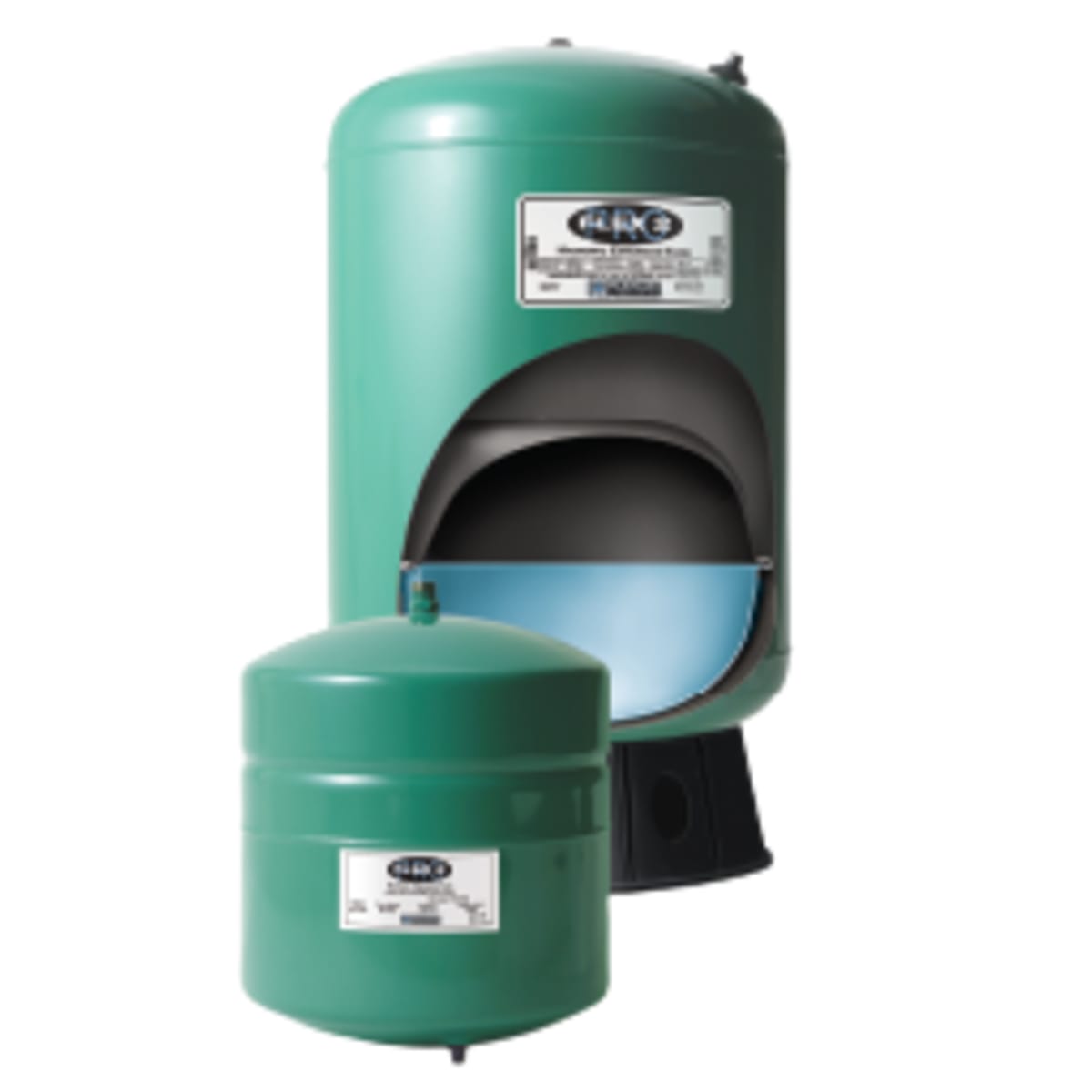

Flexcon SXHT40 Expansion Tank SXHT Hydronic Vertical 20GAL 100PSI 1 FNPT

Product Description

The Flexcon SXHT40 is a hydronic expansion tank with a twenty-gallon capacity and a maximum pressure rating of one hundred PSI. Designed for use in heating systems, this tank features a one inch FNPT connection. The construction utilizes cold rolled steel and employs a butyl rubber diaphragm for durability and performance. This expansion tank helps maintain system pressure and accommodate thermal expansion in hydronic heating systems.

• Tank capacity: 20 gallons
• Pressure rating: 100 PSI
• Dimensions: 28.8 inches height x 16 inches diameter

Product Highlights

This tank is suitable for both residential and commercial hydronic heating applications. Its oversized diaphragm allows for maximum drawdown while minimizing wear, prolonging the lifespan of the tank.

Product Information

Standard Information

• Brand: Flexcon
• Model Number: SXHT40

Technical Specifications

• Material: Steel
• Precharge Pressure: 12 PSI
• Inlet/Outlet Connection: 1 inch FNPT
• Temperature Rating: 220 degrees Fahrenheit
• Shipping Weight: 43 pounds
