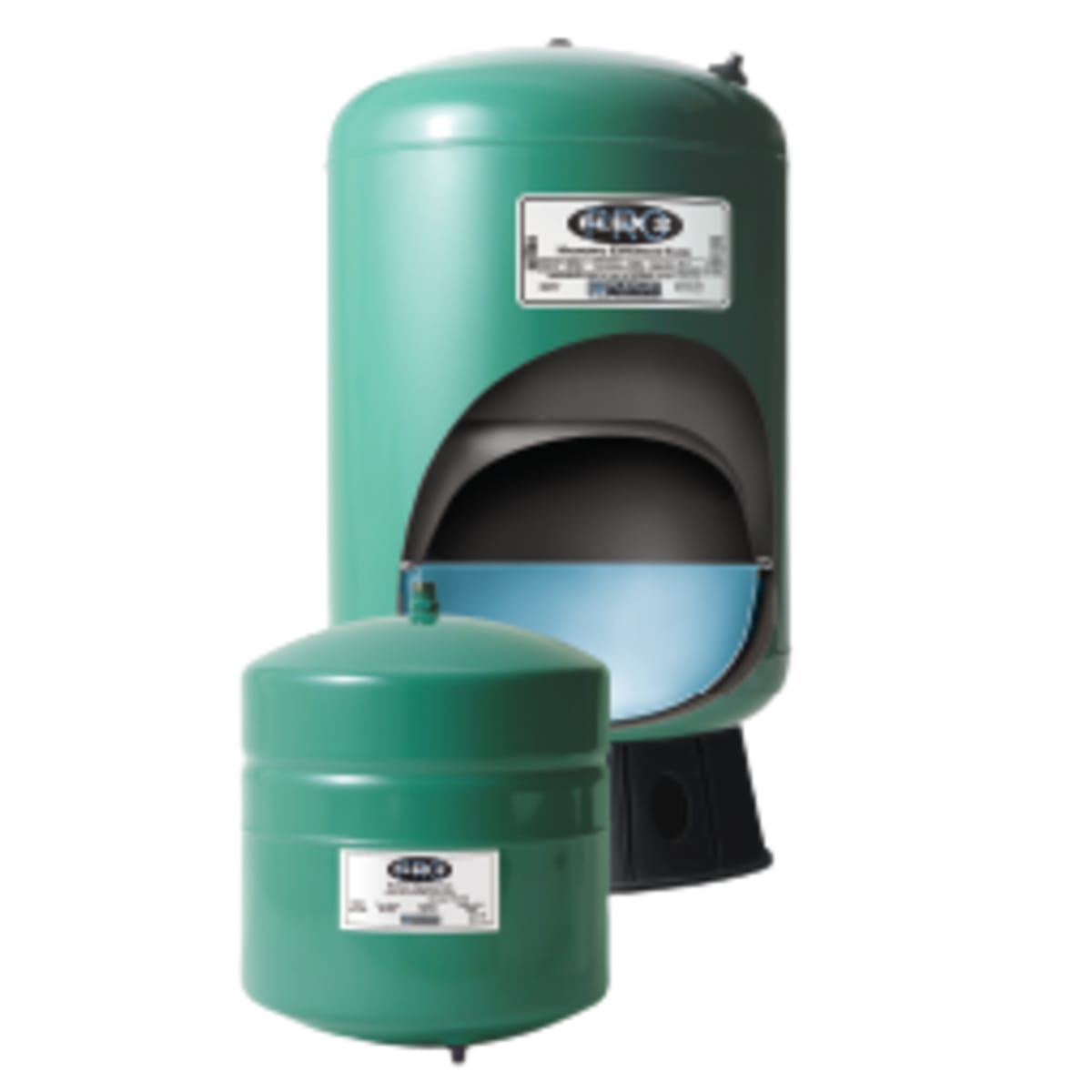

Flexcon HTX30 4.5 Gallon Expansion Tank 1/2 - FIP Connections

Product Description

The Flexcon HTX30 is a hydronic expansion tank designed for effective pressure management in water heating systems. With a capacity of four point five gallons and a connection size of one half inch FIP, this tank helps to accommodate thermal expansion and maintain system pressure.

• Constructed from high-quality cold rolled steel
• Features a butyl rubber diaphragm for optimal performance
• Rated for a maximum pressure of one hundred psi

Product Highlights

This expansion tank is suitable for use in hydronic heating applications. It features an oversized diaphragm to maximize drawdown and minimize wear over time.

Product Information

Standard Information

• Brand: Flexcon
• MPN: HTX30

Technical Specifications

• Type: Hydronic Expansion Tank
• Height: 14 inches
• Diameter: 11 inches
• Material: Steel
• Capacity: 4.5 gallons
• Acceptance Capacity: 2.5 gallons
• Maximum Working Pressure: 100 psi
• Maximum Working Temperature: 240 degrees F
• Warranty: 5 Years
