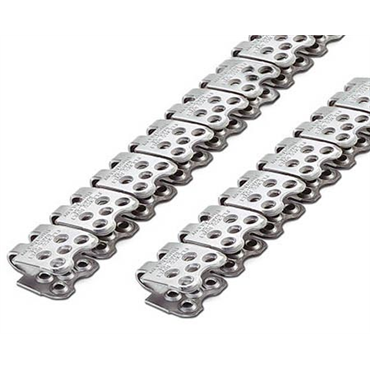

Flexco R5-SE-18/450 | Flexco® SR™ Scalloped Edge™ Fastener

Product Description

The Flexco SR Scalloped Edge fastener, model R5-SE-18/450, provides a reliable fastening solution for conveyor belts. The scalloped design helps reduce the profile exposure to return idlers and cleaner blades, which helps to extend the life of the belt splice. This fastener is straightforward to install and ideal for frequent adjustments to belt lengths.

• Scalloped edge design minimizes wear from belt cleaners
• Self-setting rivets allow quick and easy installation
• Ideal for applications with regular length modifications

Product Highlights

Flexco® SR™ Scalloped Edge™ fasteners reduce wear and are designed for quick installation.

Product Information

Standard Information

• Brand: Flexco
• MPN: R5-SE-18/450

Technical Specifications

• Belt Thickness Range: 7/32 in to 7/16 in
• Belt Width: 18 in
• Minimum Pulley Diameter: 9 in
• Fastener Type: Scalloped Edge, Rivet Hinged
• Material: Steel
• Weight: 2.4 LB
• EAN or UPC: 697598413147
