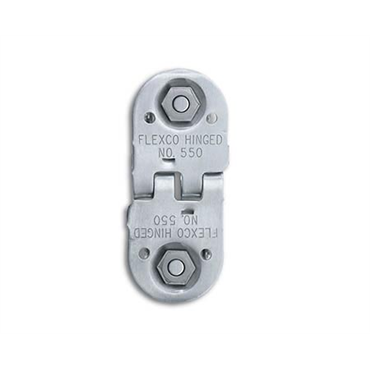

Flexco 550J42SC Bolt Hinged Fastener Steel Material 42 in 40070

Product Description

The Flexco Bolt Hinged Fastener with MPN 550J42SC is designed for use in conveyor systems. This fastener provides a secure and reliable connection for belt applications. It is suitable for belts with a width of forty-two inches and can accommodate belt thicknesses ranging from one-quarter inch to five-eighths inch.

• Made from durable steel.
• Supports a maximum belt tension of three hundred pounds per inch.
• Includes a hinge pin made of bare steel cable.

Product Highlights

This fastener is ideal for maintaining the integrity of conveyor belts in various industrial settings. It is easy to install and provides long-lasting performance.

Product Information

Standard Information

• Brand: Flexco
• Part Number: 550J42SC

Technical Specifications

• Material: Steel
• Belt Width: 42 inches
• Belt Thickness Range: 1/4 inch to 5/8 inch
• Maximum Belt Tension: 300 lb/in
• Minimum Pulley Diameter: 9 inches
• Hinge Pin Diameter: 0.25 inches
• Hinge Pin Included: Yes
• Fastener Type: Bolt Hinged
