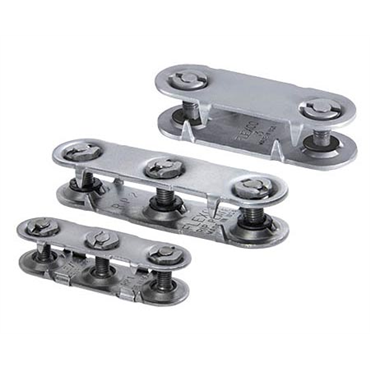

Flexco 2-1/4E Bolt Solid Plate Fastener Steel Material

Product Description

The Flexco 2-1/4E is a bolt solid plate fastener made from steel. It is designed for heavy-duty material handling applications. This fastener provides a strong, sift-free splice for various belt thicknesses from nine-sixteenths of an inch to one and three-sixteenths of an inch.

• Suitable for belt thickness range of 9/16 inches to 1 3/16 inches.
• Maximum belt tension capacity of 620 lb/in.
• Easily installed with portable hand tools.

Product Highlights

This fastener is engineered to meet tough demands in various applications including sand, gravel, crushed stone, grain, coal, cement, and salt.

Product Information

Standard Information

• Brand: Flexco
• MPN: 2-1/4E

Technical Specifications

• Material: Steel
• Fastener Type: Bolt Solid Plate
• Fastener Series: 2 1/4
• Belt Thickness Range: 9/16 in to 1 3/16 in
• Minimum Pulley Diameter: 36 in
• Weight: 7.35 LB
• EAN or UPC: 697598200068
• Alternate Part No. or Item Code: 20006
