Flange Wizard 8920-P-1.200 Deluxe Combo Burning Guide Set

Product Description

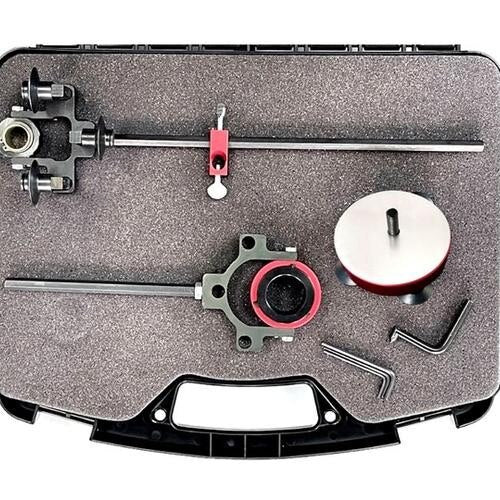

The FLANGE WIZARD 8920-P-1.200 is a deluxe combo burning guide kit designed for fabricators who work with both plasma and conventional cutting torches. The set ships in a lockable polypropylene case and includes three professional-grade tools: a Chariot Beveling Guide (24219-CBG), a Plasma Beveling Guide (PBG-601-1.xxx), and a Plasma Guide Magnetic Base with suction cups and straight pin (77352). Together these tools deliver consistent, repeatable bevel cuts on pipe and plate. Matching the correct bushing size to the plasma torch body ensures tight fitment and clean cuts without drift or wander.

This kit is built for professional pipe fabricators, structural steel fabricators, and welding shops that run both plasma cutting systems and conventional oxy-fuel or cutting-torch setups. It is well-suited for field pipe work, shop fabrication, and any application requiring precise bevel preparation ahead of welding. The lockable case keeps all three tools organized and protected during transport between job sites or in a service vehicle.

Key Features

• Includes Chariot Beveling Guide 24219-CBG for conventional torch beveling
• Includes Plasma Beveling Guide PBG-601-1.xxx sized to match plasma torch bushing diameter
• Includes Plasma Guide Magnetic Base 77352 with suction cups and straight pin for secure workpiece attachment
• Lockable polypropylene case 8900 stores and protects all three tools
• Covers both plasma and conventional cutting torch workflows in a single kit

Compatibility

Designed for use with plasma and conventional cutting torches across fabrication applications. Match the PBG-601-1.xxx bushing size to the specific plasma torch body for proper fitment and accurate cuts.

Installation Notes

Installation and setup should be performed by a qualified fabricator or pipefitter familiar with plasma and oxy-fuel cutting equipment. Always power down the plasma cutter or shut off gas supply before attaching or adjusting guides. Verify the magnetic base seats firmly against a clean, scale-free surface before initiating a cut. Follow applicable AWS and shop safety standards when operating cutting equipment.

Technical Specifications

• Weight: 4.4 pounds
• Case Length: 12.375 inches
• Case Width: 12.375 inches
• Case Height: 12.375 inches
• Case Material: Polypropylene
• Sold As: Each
• UPC: 672435089204

Standard Information

• Brand: FLANGE WIZARD
• Manufacturer Part Number: 8920-P-1.200
