Flange Wizard 8910-P-1.275 Plasma Burning Guide Kit

Product Description

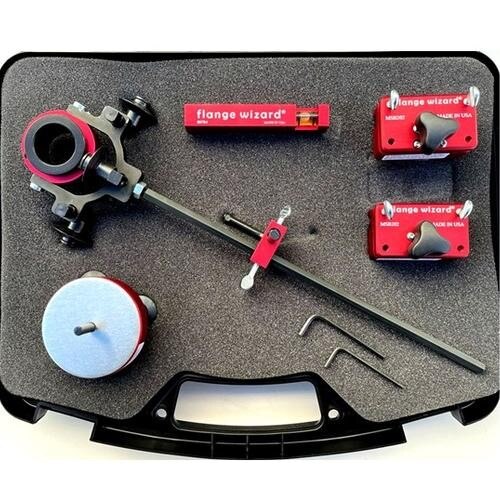

The FLANGE WIZARD 8910-P-1.275 is a plasma cutting guide kit designed for fabricators and pipefitters who need accurate, repeatable cuts on flanges and structural steel. The kit centers on a plasma cutting guide bushing sized at 1.275 inches to match compatible plasma torch barrels, allowing the torch to track a magnetic base assembly for clean, consistent cuts. The complete set ships in a lockable polypropylene case measuring 12.375 inches on each side and weighing 4.24 pounds. This is a professional-grade layout and burning tool used in pipe fabrication, structural steel, and mechanical trade work.

This kit is suited for field and shop use by pipefitters, ironworkers, and welding fabricators working with plasma cutting torches. The 1.275-inch bushing designation matches specific plasma torch barrel diameters, so verify torch compatibility before ordering. The magnetic base with straight pin and suction cups allows the guide assembly to secure to steel plate or pipe for guided torch travel. The included magnetic blocks and tape holder support layout and marking tasks alongside the cutting operation.

Key Features

• Plasma Cutting Guide PG-601-1.275 sized for 1.275-inch plasma torch barrels
• Magnetic Base with straight pin and suction cups for secure attachment to steel workpieces
• Magnetic Blocks MSB202 included as a set of two for layout support
• Magnetic Tape Holder 89754 for on-tool tape measure access during layout
• Lockable polypropylene case 8900 keeps components organized and protected on the jobsite
• Flange Wizard catalog included for reference on additional compatible tooling

Compatibility

The plasma cutting guide in this kit is sized for plasma torch barrels with a 1.275-inch barrel diameter. Match the bushing size to the specific torch model before use to ensure proper fit and cut quality.

Installation Notes

This kit is used by qualified fabricators and pipefitters — not an installed component, but a cutting and layout tool requiring proper plasma cutting safety practices. Always follow plasma torch manufacturer operating procedures, wear appropriate PPE including a welding hood and leather gloves, and ensure the work area is clear of flammable materials before cutting. Secure the magnetic base firmly to the workpiece before initiating a cut to prevent guide movement.

Technical Specifications

• Bushing Size: 1.275 inches
• Package Weight: 4.24 pounds
• Package Length: 12.375 inches
• Package Width: 12.375 inches
• Package Height: 12.375 inches
• Case Material: Polypropylene
• UPC: 672435891005
• Sold As: Each

Standard Information

• Brand: FLANGE WIZARD
• Manufacturer Part Number: 8910-P-1.275
