Flange Wizard 62-1.430 Plasma Bushing 1.400-1.425 in

Product Description

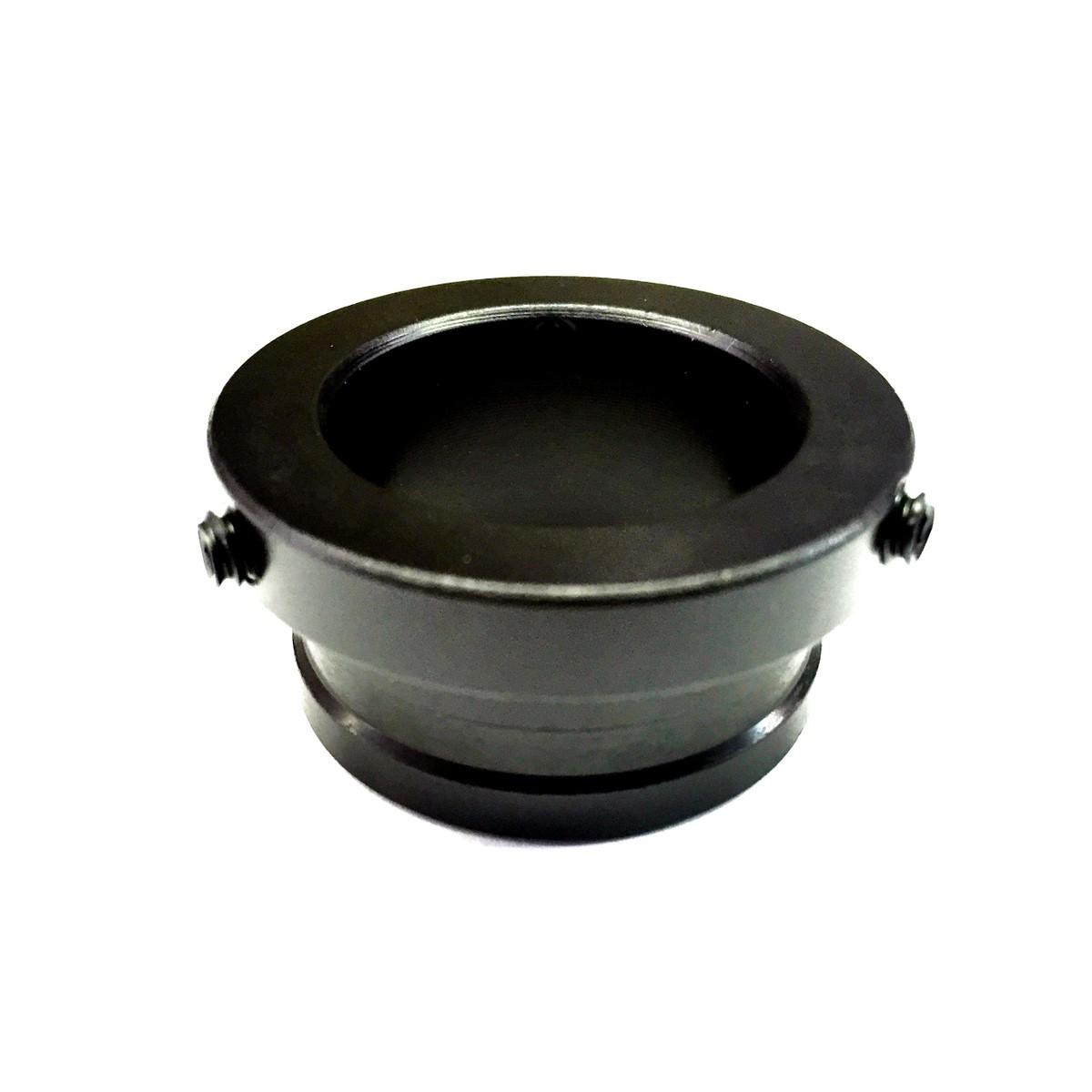

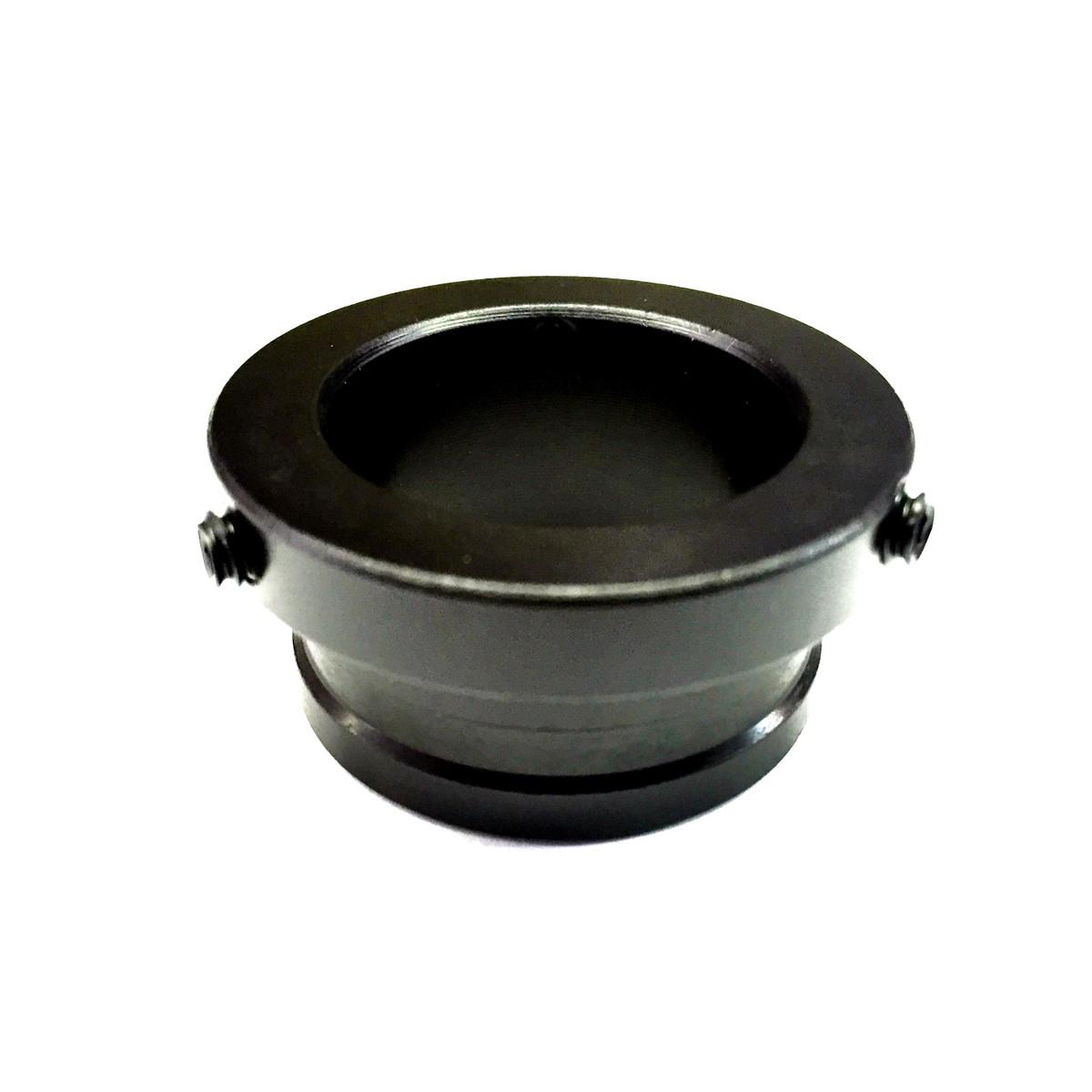

The FLANGE WIZARD 62-1.430 is a plasma bushing designed to guide and stabilize a plasma torch head during pipe and flange cutting operations. It fits torch heads with an outside diameter ranging from 1.400 to 1.425 inches, providing a precise, snug fit that keeps the torch centered on the cut line. The bushing is machined from aluminum and then anodized, giving it a hard, corrosion-resistant surface that holds up to repeated field use. Pipe fitters, fabricators, and welding professionals use this bushing as part of a flange wizard cutting or marking tool assembly to produce clean, accurate cuts on pipe flanges.

This bushing fits into standard Flange Wizard tool systems and is suited for use in pipe fabrication shops, industrial construction, and field welding applications. It is used wherever a plasma torch must be guided around a pipe or flange in a controlled arc. The 1.400 to 1.425 inch diameter range matches specific torch head models that fall within that sizing window. It is sold individually and is a direct replacement or spare component for shop or field tool kits.

Key Features

• Fits plasma torch heads with outside diameters from 1.400 to 1.425 inches
• Machined aluminum construction for precise dimensional tolerances
• Anodized finish provides corrosion resistance and surface hardness for extended service life
• Compact form factor — 4.125 x 4.125 x 4.125 inches packaged
• Lightweight at 0.3 pounds for easy handling and minimal tool weight addition

Compatibility

Designed for use with plasma torch heads measuring 1.400 to 1.425 inches in outside diameter when used with Flange Wizard pipe cutting and marking tool systems.

Installation Notes

Installation is performed by pipe fabricators or welding professionals familiar with Flange Wizard tool assemblies. Ensure the plasma torch is fully powered down and the gas supply is shut off before inserting or removing the bushing. Verify the torch head diameter falls within the 1.400 to 1.425 inch range before seating the bushing to avoid a loose fit or binding. Follow all applicable hot-work permit and site safety procedures when operating plasma cutting equipment.

Technical Specifications

• Torch Head Diameter Range: 1.400 to 1.425 inches
• Material: Aluminum, anodized
• Package Dimensions: 4.125 x 4.125 x 4.125 inches
• Weight: 0.3 pounds
• Sold As: Each
• UPC: 672435014305

Standard Information

• Brand: FLANGE WIZARD
• Manufacturer Part Number: 62-1.430
