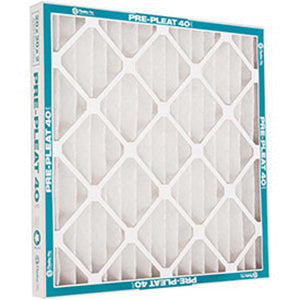

Flanders Filters 80055.012025 Pleated Air Filter 20 in x 25 in x 1 in (Actual 19-1/2 x 24-1/2 x 3/4 in)

Product Description

Flanders Filters 80055.012025 is a pleated air filter using 100% synthetic non-woven media rated MERV 8. The V-pleat design and expanded metal on the air-leaving side provide pleat stability and reduced pressure drop, with a two-piece heavy-duty 24-point moisture-resistant frame and diagonal and horizontal supports bonded to the media. The filter is rated to 180�F and has an actual nominal size of 19-1/2 x 24-1/2 x 3/4 inches.

• 100% synthetic non-woven media, V-pleat design, 5.7 sq ft media area and 13 pleats per linear foot for increased dust holding capacity
• Performance: MERV 8 rating, 30�35% filter efficiency, average arrestance 93%, initial resistance 0.17 in-WG at 300 fpm and final resistance 1 in-WG
• Construction: expanded metal support on air-leaving side, two-piece heavy-duty 24-point moisture-resistant frame, rated velocity 300/500 fpm and temperature rating 180�F

Product Highlights

Pleated MERV 8 air filter with synthetic non-woven media, V-pleat geometry, expanded metal support, 19-1/2 x 24-1/2 x 3/4 in actual size, rated to 180�F.

Product Information

Standard Information

• Brand: FLANDERS FILTERS
• Manufacturer Part Number: 80055.012025

Technical Specifications

• Brand: Flanders Filters
• MPN: 80055.012025
• Series: 80055 Series
• Product Type: Pleated air filter
• Media Material: 100% synthetic non-woven
• Filtration Rating (MERV): 8
• Filter Efficiency: 30 to 35 %
• Average Arrestance: 93 %
• Media Area: 5.7 sq ft
• Pleats per Linear Foot: 13
• Pleat Design: V-pleat
• Support Material: Expanded metal laminated on air-leaving side
• Frame: Two-piece heavy-duty 24-point moisture-resistant frame with diagonal and horizontal support members bonded to media
• Rated Velocity: 300/500 fpm
• Initial Resistance: 0.17 in-WG at 300 fpm
• Final Resistance: 1 in-WG
• Air Flow Capacity: 1042 cfm; 1736 cfm
• Nominal Size: 20 in x 25 in x 1 in
• Actual Size: 19-1/2 in x 24-1/2 in x 3/4 in
• Temperature Rating: 180 deg F
• Filter Life: 3 Months
• Number in Pack: 12
• GTIN/UPC: 0031949570088
• Item Weight: 3.9 lbs
