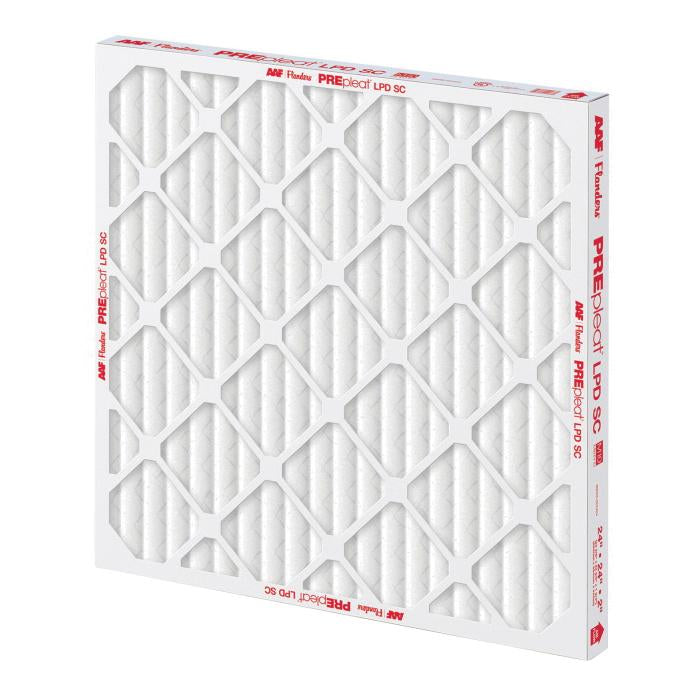

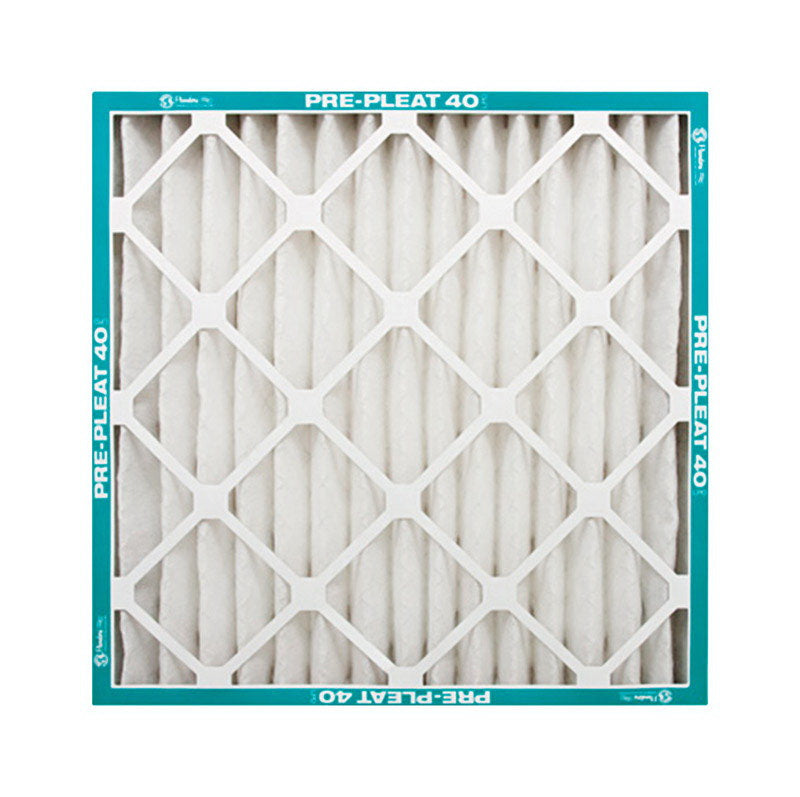

Flanders Filters 80055.011625 Polyester synthetic MERV 8 pleated air filter 16 x 25 x 1 (1 pk) 80055.011625

Product Description

Flanders Filters 80055.011625 is a pleated HVAC air filter constructed with 100% hydrophobic polyester synthetic media bonded to a corrosion-resistant expanded metal backing and enclosed in a clay-coated chipboard frame. The filter is pleated with a MERV 8 rating and measures 16 x 25 x 1 inches; it is non-electrostatic and is designed to capture common airborne particles such as pollen and dust while providing structural strength for HVAC applications.

• 100% hydrophobic polyester synthetic media bonded to 1-1/4 inch mesh expanded metal backing
• Heavy-duty die-cut clay-coated chipboard frame with pleated design and MERV 8 rating
• Non-electrostatic; suitable for HVAC pleated filtration; captures larger airborne particles such as pollen and dust

Product Highlights

MERV 8 pleated synthetic media; clay-coated chipboard frame; 1-1/4 inch corrosion-resistant expanded metal backing; 16 x 25 x 1 inches

Product Information

Standard Information

• Brand: FLANDERS FILTERS
• Manufacturer Part Number: 80055.011625

Technical Specifications

• Manufacturer: American Air Filter Company, Inc
• Brand: Flanders Filters
• Manufacturer Part Number: 80055.011625
• MPN: 80055.011625
• Dimensions: 16 in x 25 in x 1 in
• Depth: 1 in
• Filter Material: Polyester synthetic (100% hydrophobic)
• Frame Material: Chipboard (clay-coated)
• Backing: 1-1/4 inch mesh expanded metal (corrosion-resistant)
• Filter Type: Pleated
• MERV Rating: 8
• Electrostatic: No
• Filters Pollen: Yes
• Filters Bacteria: No (limited capture of larger bacteria-carrying particles; not rated for microbial filtration)
• Filters Smoke: No (limited for fine smoke particles)
• Media Area: 5.2 sq-ft
• Pleats per Linear Feet: 13
• Rated Velocity: 300 fpm, 500 fpm, 625 fpm
• Initial Resistance: 0.22 in-WG
• Final Resistance: 1 in-WG
• Air Flow Capacity: 850 scfm, 1400 scfm
• Temperature Rating: 180 0F
• SKU: GPE-4594537
• UPC: 031949190064
• CPN / Part #: PPS16251N
