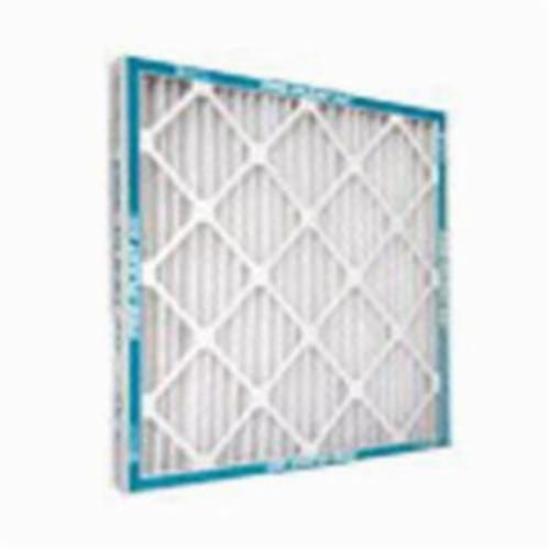

Flanders Filters 80055.011620 Pre-Pleat 40 LPD Pleated Air Filter (19-1/2 x 15-1/2 x 3/4 in)

Product Description

Flanders Filters 80055.011620 is a Pre-Pleat 40 LPD standard capacity pleated air filter that provides mechanical MERV 8A filtration using 100% synthetic non-woven media. It features a V-pleat design with expanded metal grid for pleat stability and reduced media flutter, a heavy-duty moisture-resistant two-piece frame with interlocking corners, and is rated to 180�F with a recommended final pressure drop of 1 in WG. Typical airflow: 667 cfm at 300 fpm; 1111 cfm at 500 fpm.

• Mechanical MERV 8A filtration using 100% synthetic non-woven proprietary media
• V-pleat design and expanded metal grid for increased surface area and pleat stability
• Heavy-duty moisture-resistant two-piece frame with diagonal and horizontal supports and interlocking corners

Product Highlights

MERV 8A pleated filter; recyclable synthetic media; rated to 180�F; typical airflow up to 1111 cfm at 500 fpm; recommended final pressure drop 1 in WG.

Product Information

Standard Information

• Brand: FLANDERS FILTERS
• Manufacturer Part Number: 80055.011620
• Country of Origin: United States

Technical Specifications

• Manufacturer: Flanders Corp
• Brand: Flanders Filters
• MPN: 80055.011620
• UPC: 031949570057
• Series: 80055
• Type: Standard Capacity Pleated Air Filter
• Media Material: 100% synthetic non-woven proprietary media
• MERV Rating: MERV 8A
• Final Resistance: 1 in WG
• Airflow Performance: 667 cfm at 300 fpm; 1111 cfm at 500 fpm
• Temperature Rating: 180 deg F
• Dimensions: 19.5 in H x 15.5 in W x 0.75 in D
• Frame Construction: Heavy-duty moisture-resistant two-piece frame with diagonal and horizontal supports and interlocking corners
• Design Features: V-pleat design; expanded metal grid to prevent media flutter; sealed media pack to eliminate bypass
• Type Description: Pre-Pleat 40 LPD
