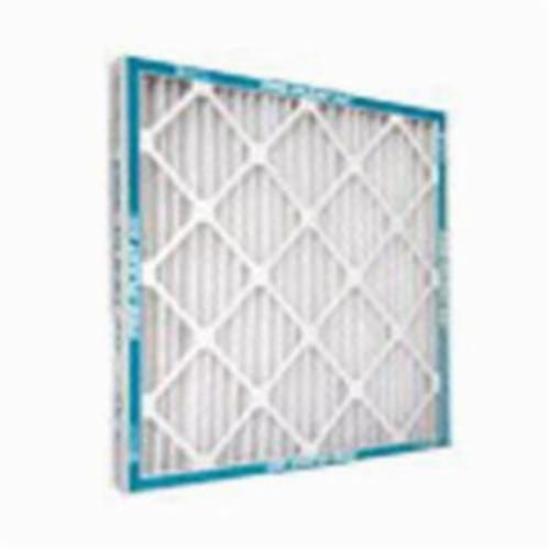

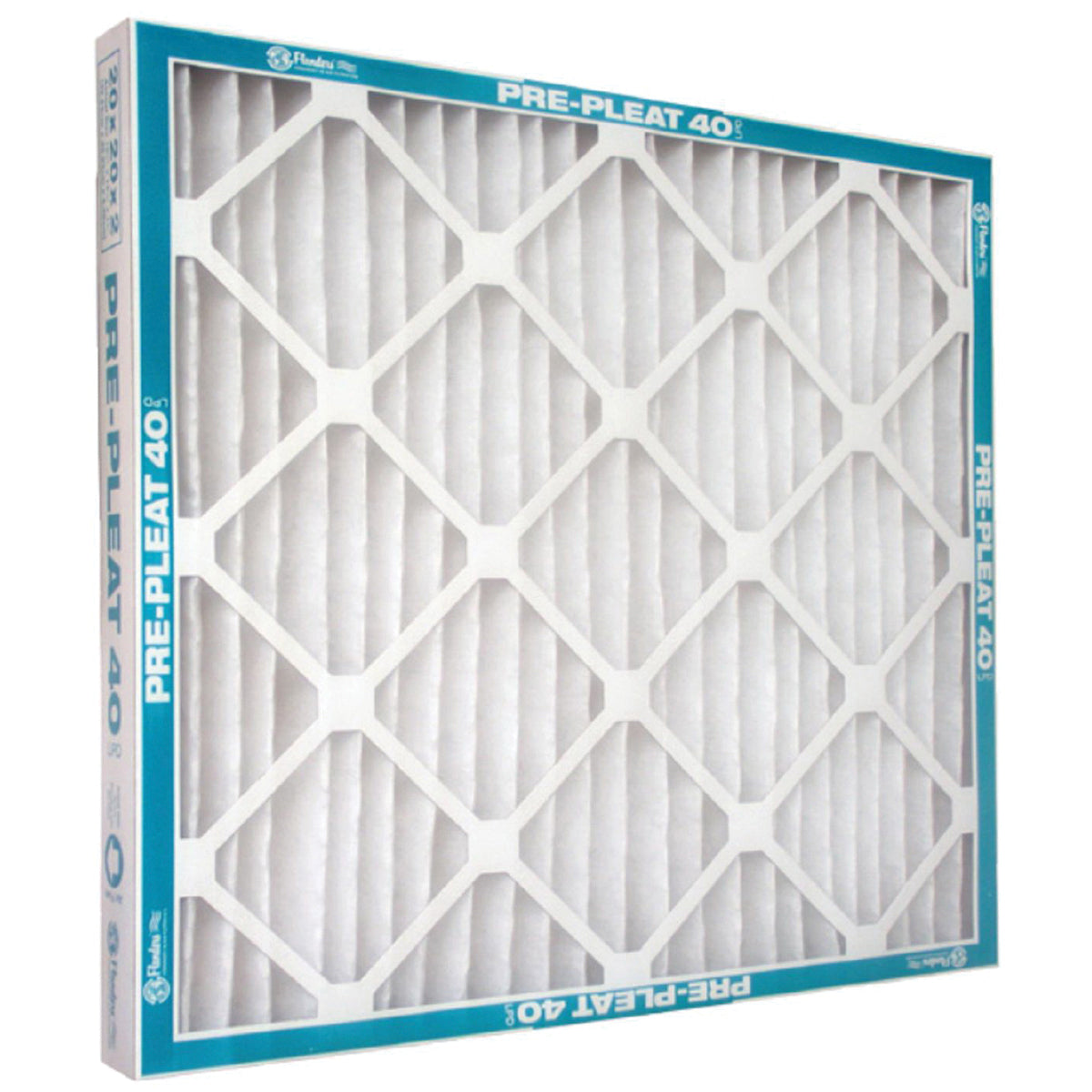

Flanders Filters 80055.011420 Pleated Air Filter 14 x 20 x 1 in (PPS14201N)

Product Description

Flanders Filters 80055.011420 is a pleated air filter constructed with 100% non-woven synthetic media and rated MERV 8. It provides 30�35% filter efficiency, 3.3 sq ft media area and 13 pleats per linear foot in a V-pleat geometry supported by expanded metal and a two-piece moisture-resistant frame. Rated for 583 cfm (300 fpm) and 972 cfm (500 fpm), it has initial resistance 0.17 in-WG at 300 fpm, final resistance 1 in-WG and a temperature rating up to 180�F. Average arrestance is 93%.

• 100% non-woven synthetic media with 3.3 sq ft media area and 13 pleats per linear foot
• V-pleat geometry with expanded metal on air leaving side and media sealed to minimize bypass
• Two-piece moisture-resistant frame with diagonal and horizontal supports for pleat stability

Product Highlights

MERV 8 pleated filter, nominal 14 x 20 x 1 in; 583/972 cfm; initial resistance 0.17 in-WG (300 fpm), final 1 in-WG; rated to 180�F.

Product Information

Standard Information

• Brand: FLANDERS FILTERS
• Manufacturer Part Number: 80055.011420
• Country of Origin: United States
