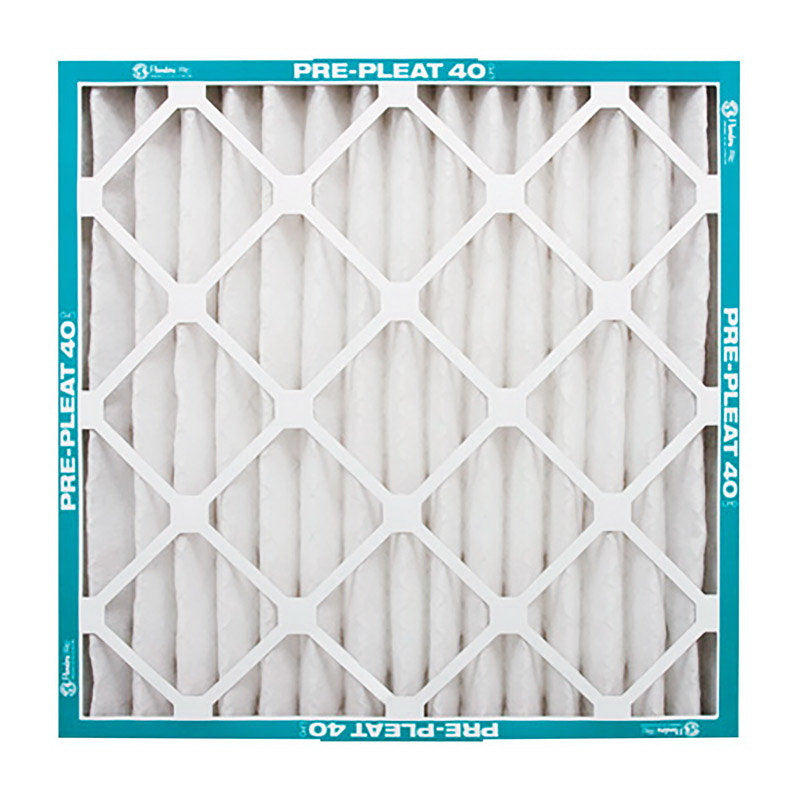

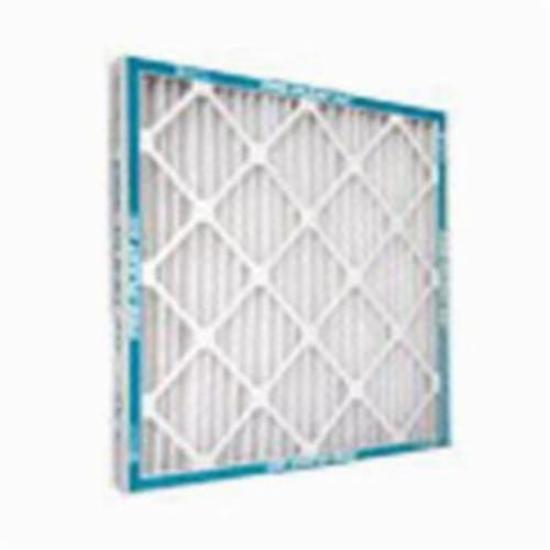

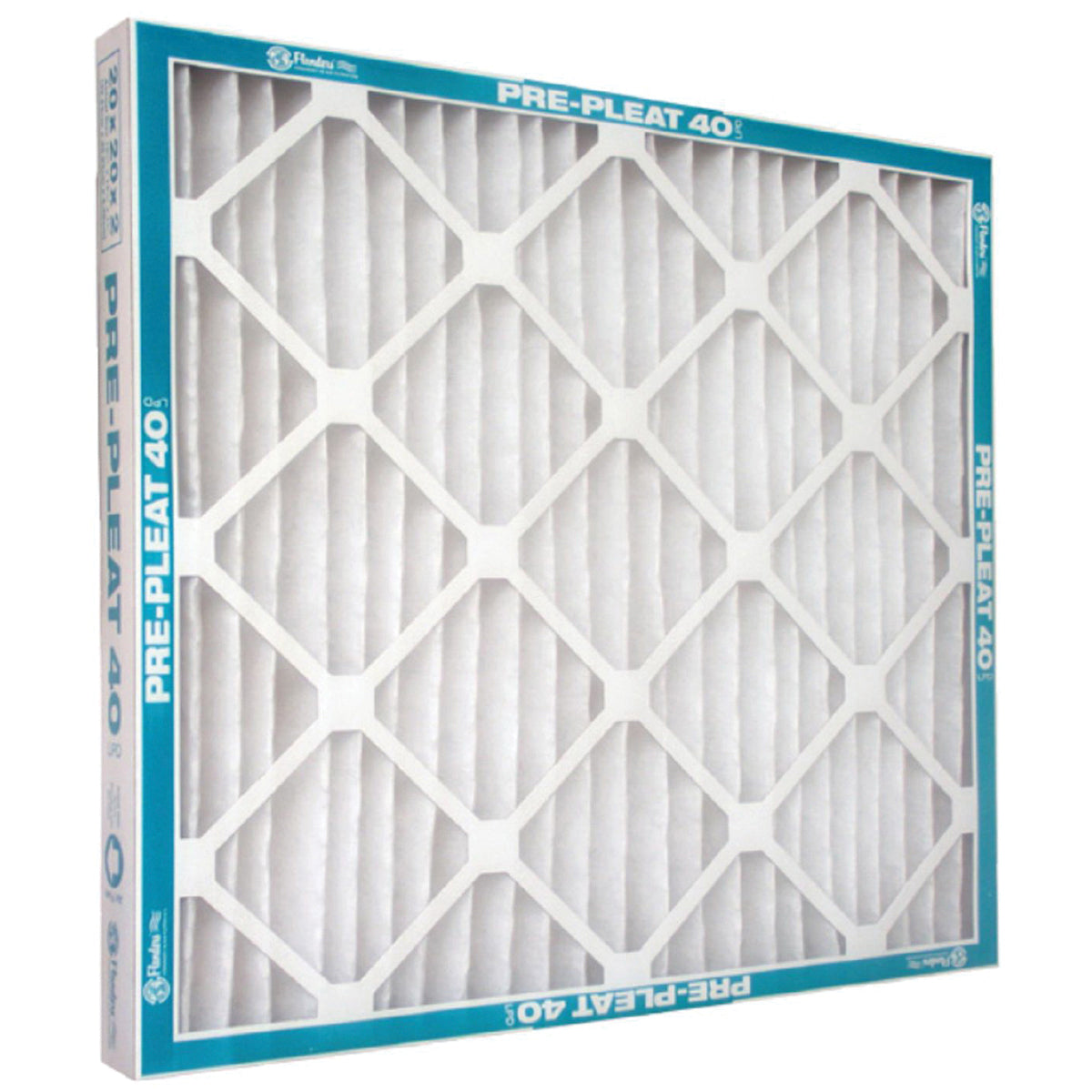

Flanders 80055.011425 Pleated Air Filter (13-1/2 x 24-1/2 x 3/4 in)

Product Description

The Flanders 80055.011425 pleated air filter uses 100% synthetic non-woven media and a V-pleat design to provide MERV 8 filtration with a media area of 4.1 sq-ft and 13 pleats per linear foot. It is rated for air velocities of 300/500 fpm with initial resistance of 0.17 in-WG at 300 fpm and a recommended final resistance of 1 in-WG. Average arrestance is 93% and temperature rating is 180 deg F.

• 100% synthetic non-woven media with 4.1 sq-ft media area and 13 pleats per linear foot
• V-pleat design with expanded metal support for pleat stability and reduced pressure drop
• Rated velocity 300/500 fpm; initial resistance 0.17 in-WG at 300 fpm; final resistance 1 in-WG; average arrestance 93%

Product Highlights

MERV 8 pleated filter, low pressure drop V-pleat design, actual size 13-1/2 x 24-1/2 x 3/4 in, rated to 180 deg F

Product Information

Standard Information

• Brand: FLANDERS FILTERS
• Manufacturer Part Number: 80055.011425
• Country of Origin: Domestic

Technical Specifications

• Brand: Flanders
• MPN: 80055.011425
• Series: 80055
• Type: Pleated air filter
• Media Material: 100% synthetic non-woven
• MERV Rating: MERV 8
• Filter Efficiency: 30 to 35 %
• Media Area: 4.1 sq-ft
• Pleats per Linear Foot: 13
• Rated Velocity: 300/500 fpm
• Initial Resistance: 0.17 in-WG at 300 fpm
• Final Resistance: 1 in-WG
• Average Arrestance: 93 %
• Air Flow Capacity: 729 cfm; 1215 cfm
• Actual Size: 13-1/2 x 24-1/2 x 3/4 in
• Temperature Rating: 180 deg F
• Frame Construction: Two-piece heavy-duty 24 point moisture-resistant material
• Design: V-pleat with expanded metal support on air leaving side
