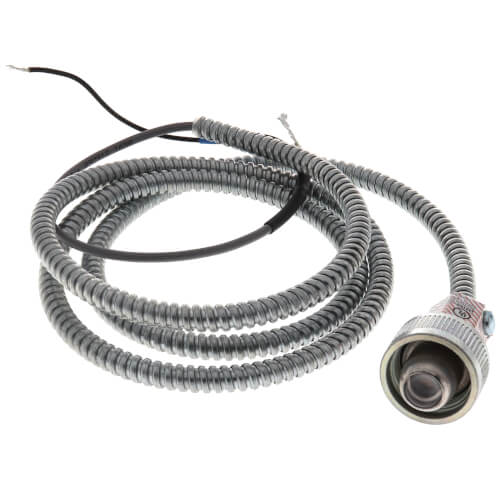

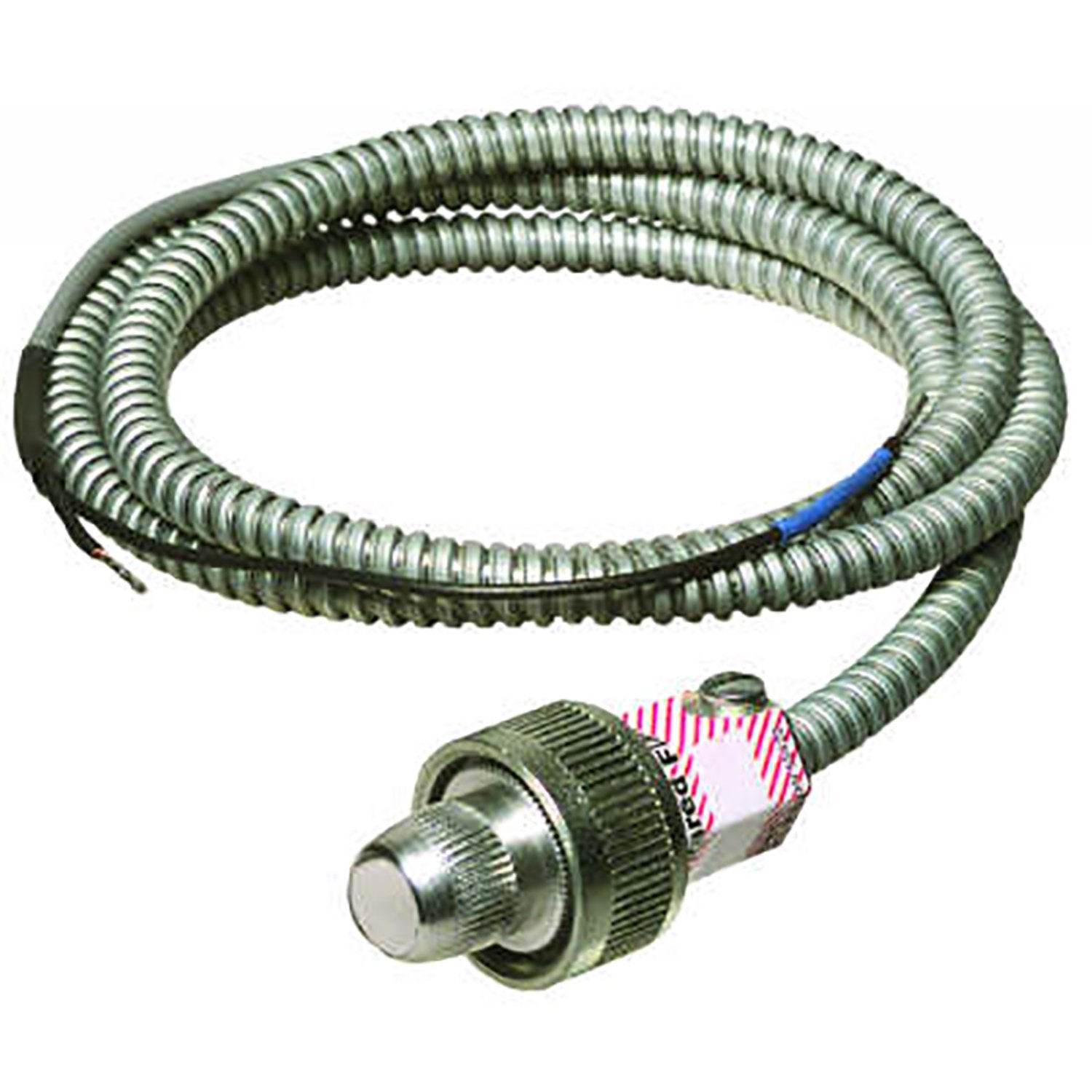

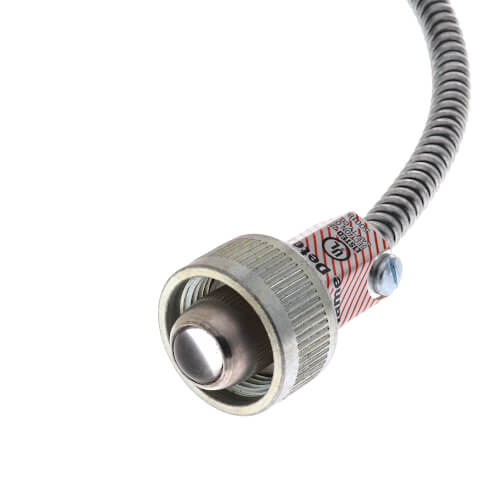

Honeywell C7915A1028 Solid State Infrared Scanner 48 Leads Replaces C7015A

Product Description

The Honeywell C7915A1028 is a solid-state infrared scanner, designed for detecting flame presence. This unit uses a lead sulfide photocell to sense the infrared radiation from burning fuels.

• Detects pilot and main flame
• Mounts easily on a standard 3/4 inch sighting pipe
• For dual-fuel applications using natural gas, oil, and coal

Product Highlights

The Honeywell C7915A1028 infrared scanner ensures reliable flame detection in challenging environments. Its lead sulfide cells enable sensitivity to the infrared spectrum of burning fuels.

Product Information

Standard Information

• Brand: Honeywell
• MPN: C7915A1028
• Category: Controls & Indicators
• Weight: 0.77 pounds

Technical Specifications

• Dimensions: 6.6 x 4.3 x 2.2 inches
• Lead Length: 48 inches
• Max Temperature: 125°F
• Min Temperature: -40°F
• Shipping Weight: 0.77 pounds
• Detects: Infrared radiation from natural gas, oil, and coal flames
• Mounting: Standard 3/4 inch sighting pipe
• Replacement Part Numbers: C7015A1126, C7015A1142, C7015A1035, C7015A1118
• Used With: R7852 Series Amplifier
