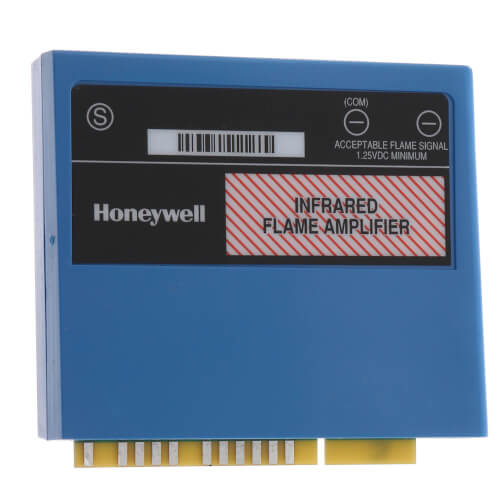

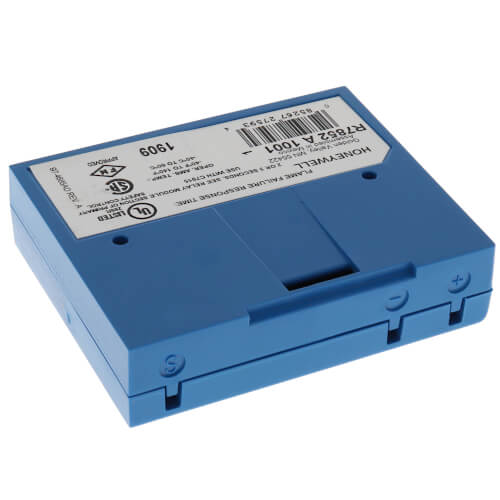

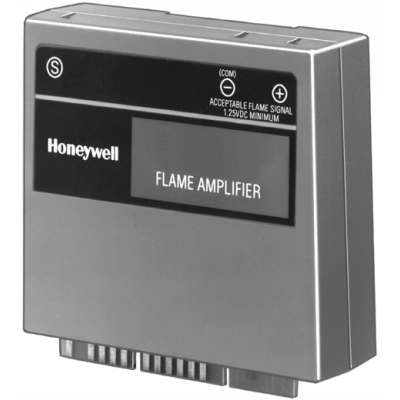

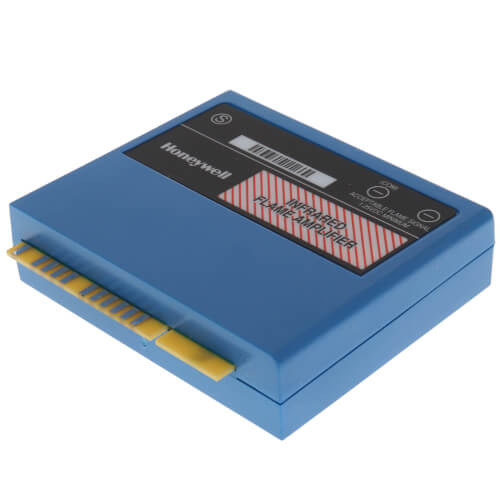

Honeywell R7852A1001 Flame Amplifier Infrared 7800 Series Relay Modules

Product Description

The Honeywell Flame Amplifier R7852A1001 is designed for use with the 7800 Series and R7140 Relay Modules. This flame amplifier features a flame failure response time of either 2.0 seconds or 3.0 seconds. It measures flame signal strength ranging from 0.0 to 5.0 Vdc and offers reliable infrared detection for various industrial applications.

• Used with 7800 Series Relay Modules
• Infrared flame detection
• Flame failure response time: 2.0 or 3.0 seconds

Product Highlights

Durable construction ensures long-lasting performance. The amplifier plugs into the 7800 relay module via a printed circuit board edge connector keyed for proper orientation. Flame signal test jacks are included to measure amplifier flame signal voltage. Color-coded labels help identify flame detection types, and the dynamic self-check amplifier tests both detectors and electronic components in the flame detection system. The 7800 Series relay module automatically locks out on safety shutdown if a flame detection system failure occurs.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell Thermal Solutions FS

Technical Specifications

• MPN: R7852A1001
• Flame Failure Response Time: 2.0 sec or 3.0 sec
• Flame Signal Strength: 0.0 to 5.0 Vdc
• Use With: 7800 Series Relay Modules, C7915 Flame Sensors
• Dimensions: Width 5.38 inches, Height 2 inches, Length 3.69 inches
• Weight: 0.31 lbs
• Color: Blue
• Country of Origin: Mexico
