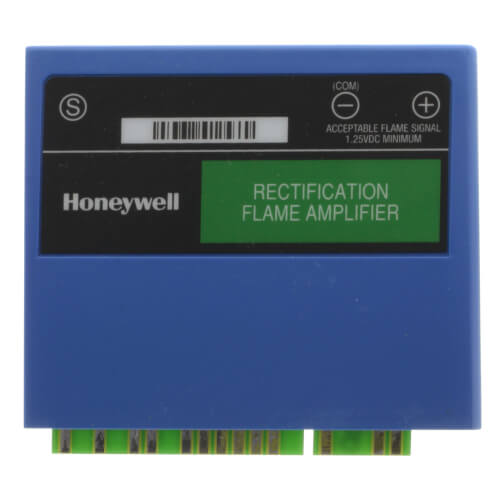

Honeywell R7852B1009 Amplifier Solid State Detector

Product Description

The Honeywell R7852B1009 Amplifier is designed for the 7800 Series and R7140 Relay Modules. This device ensures reliable flame detection with a flame failure response time of 2 or 3 seconds. It operates with a flame signal strength ranging from 0.0 to 5.0 Vdc. The amplifier plugs into the 7800 relay module through a printed circuit board edge connector.

• Fast flame failure response time
• Compatible with Honeywell flame detectors
• Dynamic self-checking capability

Product Highlights

Provides reliable flame detection for industrial applications, ensuring safety and efficiency in flame monitoring systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• Type: Solid State, Infrared, Ampli-Check
• Overall Dimension: 3-9/16 inches width x 7/8 inches depth x 3 inches height
• Voltage Rating: 5 Volt DC
• Flame Failure Response Time: 2 or 3 seconds
• Color: Red/White
• Operating Temperature Range: -40 to 140 degrees Fahrenheit
• Used On: 7800 Series Relay Module, C7915 Infrared Ampli-Checking Flame Sensor (Gas/Oil/Coal)
