Flagro FVNP-200RC Indirect Fired Dual Fuel Heater 200000 Btu/h

Product Description

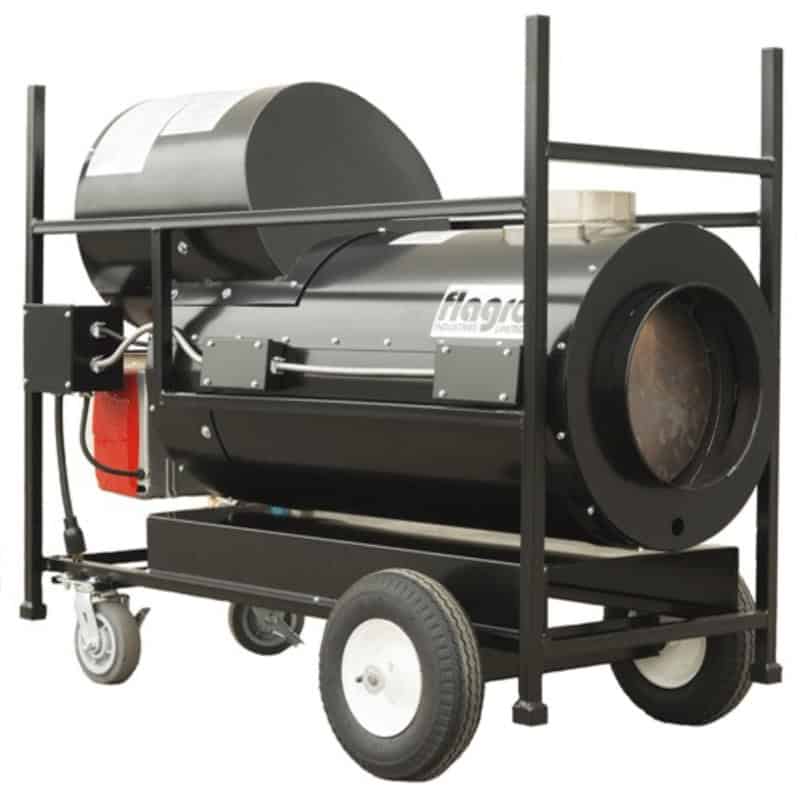

The FLAGRO FVNP-200RC is a portable indirect fired dual-fuel heater rated at 200,000 BTU/h, built for temporary heating on construction sites, industrial facilities, and large-scale temporary enclosures. A Riello burner fires on natural gas or propane, and all combustion exhaust is routed externally through a sealed 304 stainless steel heat exchanger. Combustion gases never enter the heated airspace, making this unit appropriate for occupied work areas where air quality must be maintained. Air output reaches 2,600 CFM, ductwork runs extend up to 150 feet, and the power supply is 115 volts, single phase, 60 Hz at a 6-amp operating draw on a 15-amp circuit.

This heater targets demanding temporary heating in residential, commercial, and industrial construction as well as event tenting, plant maintenance shutdowns, and disaster recovery work. A recirculating hood configuration allows conditioned air to be returned and redistributed rather than exhausted. The dual-fuel selector valve allows field switching between natural gas at 190 cubic feet per hour and propane at 9.25 pounds per hour without burner component changes. Flat-free wheels and a stackable frame support transport and storage for rental fleets and service contractors who move equipment frequently between job sites.

Key Features

• Riello burner with dual-fuel selector valve field switchable between natural gas and propane without burner component changes
• 304 stainless steel heat exchanger keeps combustion gases fully isolated from the supply airstream
• Ductable up to 150 feet for heated air distribution across large or subdivided spaces
• 2,600 CFM maximum airflow with recirculating hood option
• Flat-free wheels and stackable frame built for rental-industry durability and transport
• Thermostatic control for automatic temperature maintenance

Compatibility

Designed for use with standard temporary heating duct accessories accepting 12-inch or 16-inch air outlet connections. Compatible with external natural gas supply lines and external propane tanks; no internal fuel tank is included.

Installation Notes

Installation and commissioning should be performed by a qualified HVAC technician or licensed gas fitter holding the appropriate trade credentials for the jurisdiction. Shut off the fuel supply at the source before connecting or disconnecting gas lines, and verify all connections with an approved leak-detection solution before firing. Exhaust must be vented to the outdoors through the unit's external exhaust port in accordance with local codes and the authority having jurisdiction. Do not operate the unit without confirming that intake and exhaust clearances meet the requirements stated in the operations manual.

Technical Specifications

• Heating Capacity: 200,000 BTU/h
• Airflow: 2,600 CFM (max)
• Fuel Type: Natural Gas or Propane (dual fuel)
• Natural Gas Consumption: 190 cubic feet per hour
• Propane Consumption: 9.25 pounds per hour
• Power Supply: 115 volts, 1-phase, 60 Hz
• Amperage: 15-amp circuit, 6-amp operating draw
• Heat Exchanger Material: 304 stainless steel
• Air Outlet: 1 x 12 inches or 1 x 16 inches
• Air Inlet: 1 x 12 inches
• Maximum Duct Run: 150 feet
• Wheels: 2 x 16 inches flat-free
• Dimensions: 52 x 27 x 48 inches
• Weight: 350 pounds

Standard Information

• Brand: FLAGRO
• Manufacturer Part Number: FVNP-200RC
