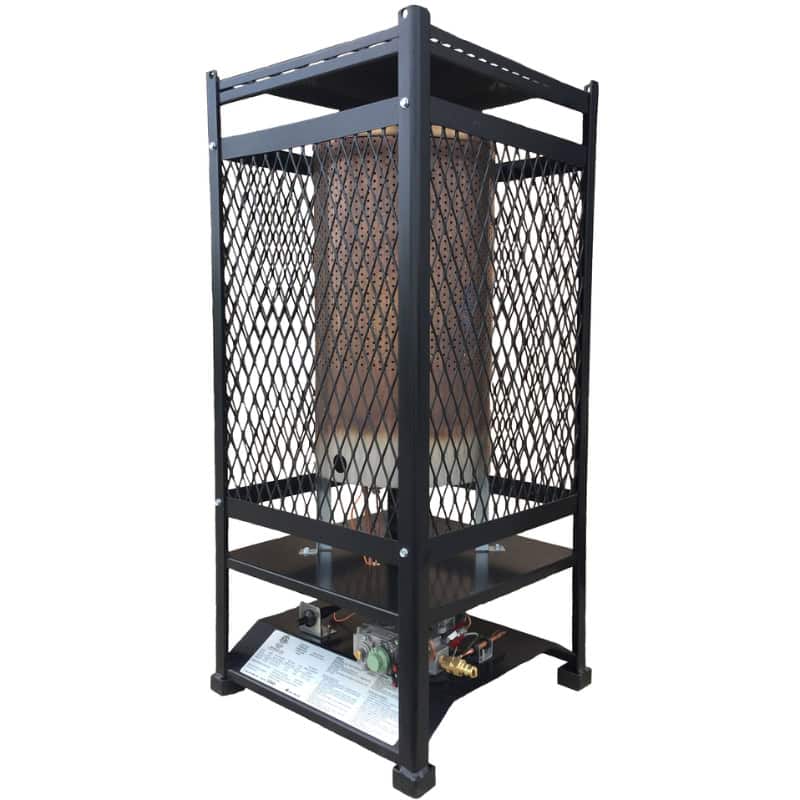

Flagro FRHR-100PQD Radiant Heater 90000 Btu/h Propane

Product Description

The FLAGRO FRHR-100PQD is a 90,000 BTU/h direct-fired radiant heater built for vapor propane service in industrial and construction environments. It delivers infrared radiant heat through a piezo ignitor system and a built-in thermostat, enabling hands-free temperature regulation without forced-air delivery. Fuel consumption runs at 5 pounds per hour at a manifold pressure of 10.0 inches W.C. The unit weighs 47 pounds and mounts on a heavy-duty frame measuring 16 inches x 16 inches x 33 inches. Qualified LP gas technicians and construction heating contractors are the typical installers and service personnel for this class of equipment.

The FRHR-100PQD is suited for temporary and permanent space heating on construction sites, in warehouses, garages, industrial facilities, and other large open-area applications where radiant heat is preferred over forced-air delivery. The filterless design reduces maintenance demands in dusty job-site conditions. A 3/8-inch male quick-disconnect inlet simplifies connection to an onsite propane supply. Thermostatically controlled operation makes the unit well suited for sustained heating cycles where holding a target ambient temperature is required.

Key Features

• 90,000 BTU/h radiant heating output on vapor propane
• Piezo ignitor system for reliable, tool-free ignition
• Built-in thermostat for automatic temperature regulation
• Filterless design reduces maintenance in dusty environments
• 3/8-inch male quick-disconnect fuel inlet for fast hookup
• Heavy-duty frame with recessed controls for jobsite durability

Compatibility

Designed for use with vapor propane supply systems. Minimum supply pressure is 11 inches W.C. and maximum supply pressure is 14 inches W.C. per the manufacturer operating manual. Compatible with standard 3/8-inch male quick-disconnect propane fittings.

Installation Notes

Installation and service should be performed by a qualified technician familiar with LP gas equipment and applicable codes including the IFGC. Shut off and depressurize the propane supply line before making or breaking the quick-disconnect fuel connection. Verify supply pressure falls within the 11 to 14 inches W.C. operating range before ignition. Keep the heater on a stable, level surface away from flammable materials and ensure adequate ventilation per local codes when operating in enclosed spaces.

Technical Specifications

• Heating Capacity: 90,000 BTU/h
• Fuel Type: Vapor Propane
• Fuel Consumption: 5 pounds per hour
• Manifold Pressure: 10.0 inches W.C.
• Minimum Supply Pressure: 11 inches W.C.
• Maximum Supply Pressure: 14 inches W.C.
• Fuel Inlet: 3/8-inch male quick disconnect
• Ignition: Piezo ignitor system
• Control Type: Thermostatically controlled
• Dimensions: 16 inches x 16 inches x 33 inches
• Weight: 47 pounds

Standard Information

• Brand: FLAGRO
• Manufacturer Part Number: FRHR-100PQD
