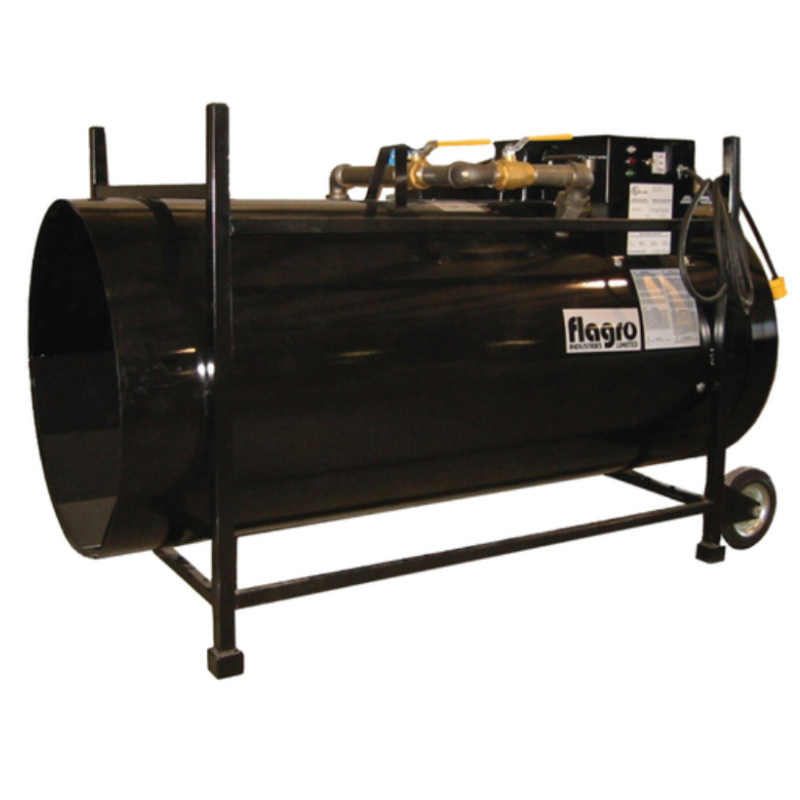

Flagro F-1000T Direct Fired Construction Heater 1000000 Btu/h

Product Description

The FLAGRO F-1000T is a direct-fired forced-air construction heater rated at 1,000,000 BTU/h, built for large-scale commercial and industrial temporary heating applications. It operates on propane or natural gas, with field selection available based on job-site fuel supply. The unit delivers 7,000 CFM of heated airflow, covers approximately 12,000 square feet, and runs on a 115-volt, 60 Hz, single-phase, 20-amp circuit with a 1 HP blower motor. Electronic ignition provides reliable startup in field conditions. Licensed HVAC technicians and commercial heating contractors are the primary installers and service personnel for equipment of this class.

The F-1000T is suited to large-volume temporary heat jobs including construction sites, industrial facilities, warehouses, aircraft hangars, and other open or semi-enclosed structures requiring substantial heat input. Its dual-fuel capability adapts to changing job-site fuel availability without requiring a separate unit. A built-in thermostat supports automated temperature regulation during extended operation. Where multiple smaller heaters would otherwise be required, the F-1000T consolidates heat delivery into a single high-output unit.

Key Features

• 1,000,000 BTU/h heat output rated for large commercial and industrial spaces
• Dual-fuel design accepts propane or natural gas with a selector valve for field switching
• 7,000 CFM airflow capacity covering approximately 12,000 square feet
• Electronic ignition for dependable startup in field conditions
• 115-volt, single-phase, 20-amp electrical requirement with 1 HP blower motor
• Includes thermostat for automated temperature regulation during extended runs

Compatibility

Designed for use with propane supply at 46 pounds per hour or natural gas supply at 952 CFH. Suitable for large temporary heating applications on commercial construction sites and industrial job sites where a direct-fired forced-air heater is required.

Installation Notes

Installation and servicing must be performed by a qualified heating contractor or licensed HVAC technician familiar with commercial direct-fired equipment and applicable fuel-gas codes, including the IFGC. Shut off and disconnect the fuel supply before performing any service or making fuel connections. Position the unit on a stable, level surface away from combustible materials, gas cylinders, and other hazards as specified in the operating manual. Verify that the electrical supply circuit is properly rated for 115 volts, single phase, 20 amps before connecting the unit.

Technical Specifications

• Heat Output: 1,000,000 BTU/h
• Fuel Type: Propane or Natural Gas (Dual Fuel)
• Propane Consumption: 46 pounds per hour
• Natural Gas Consumption: 952 CFH
• Airflow: 7,000 CFM
• Approximate Heating Coverage: 12,000 square feet
• Power Supply: 115 volts, 60 Hz, 1-phase, 20 amps
• Motor: 1 HP
• Ignition Type: Electronic
• Dimensions: 61 x 29 x 38 inches
• Weight: 356 pounds

Standard Information

• Brand: FLAGRO
• Manufacturer Part Number: F-1000T
