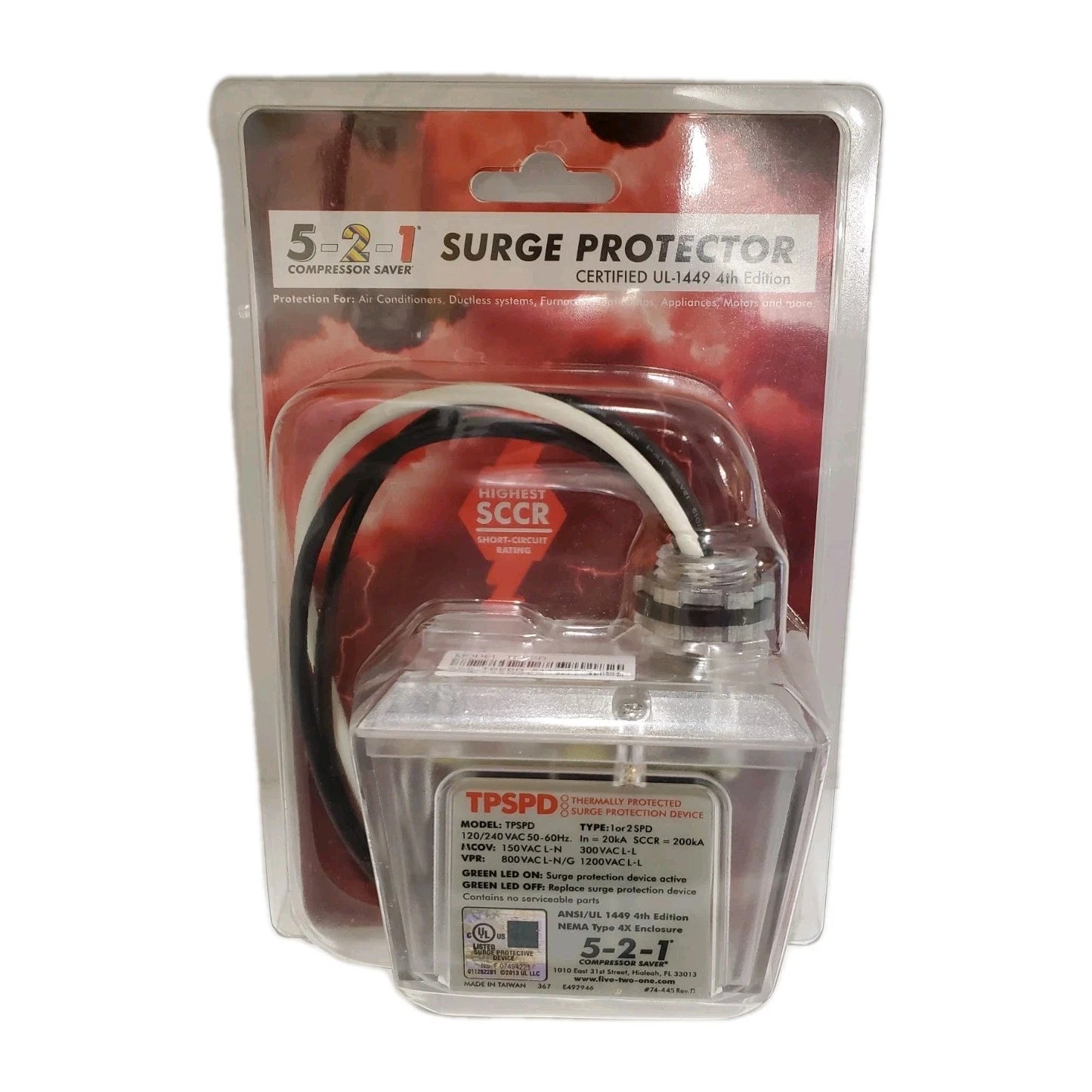

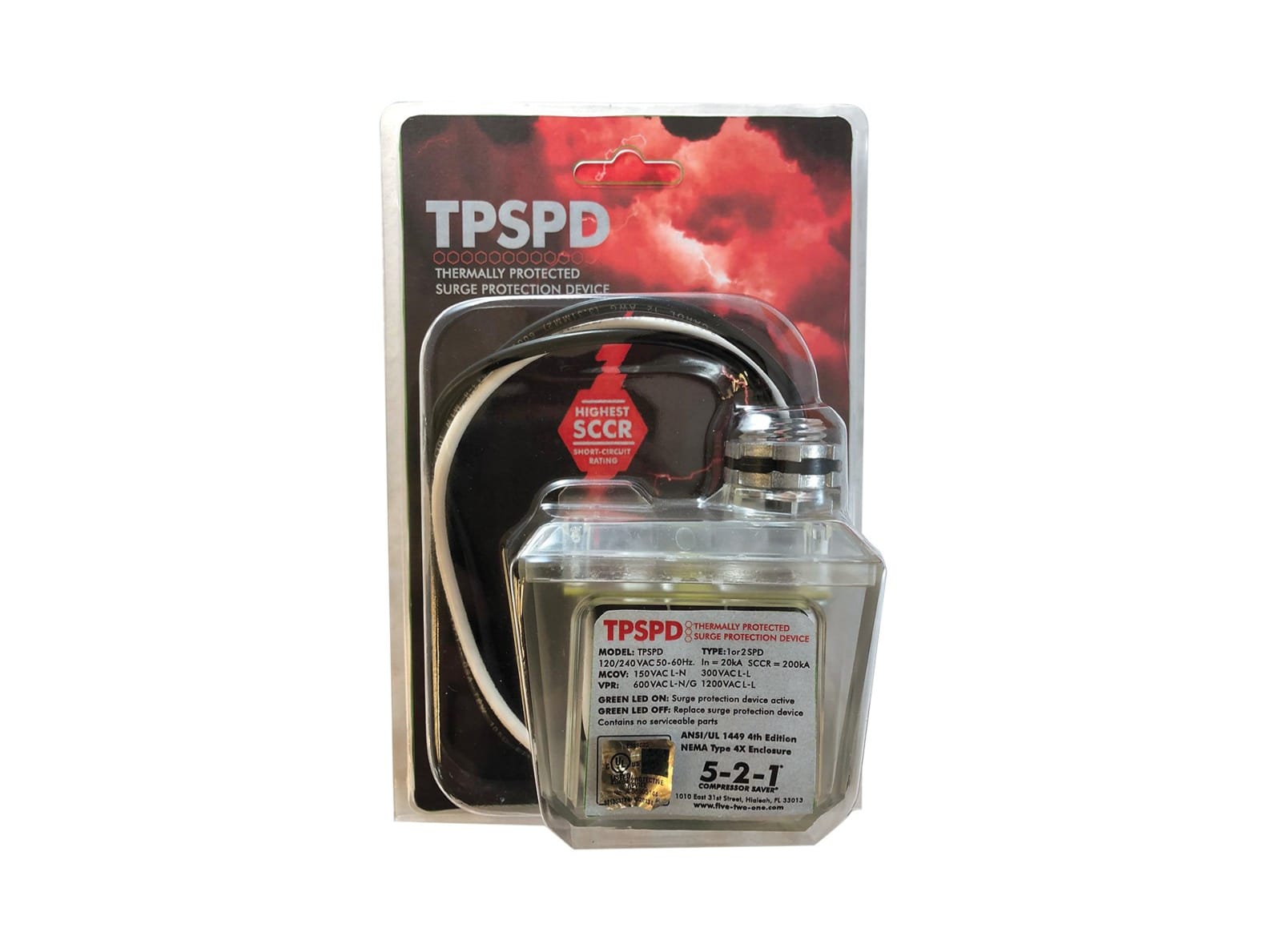

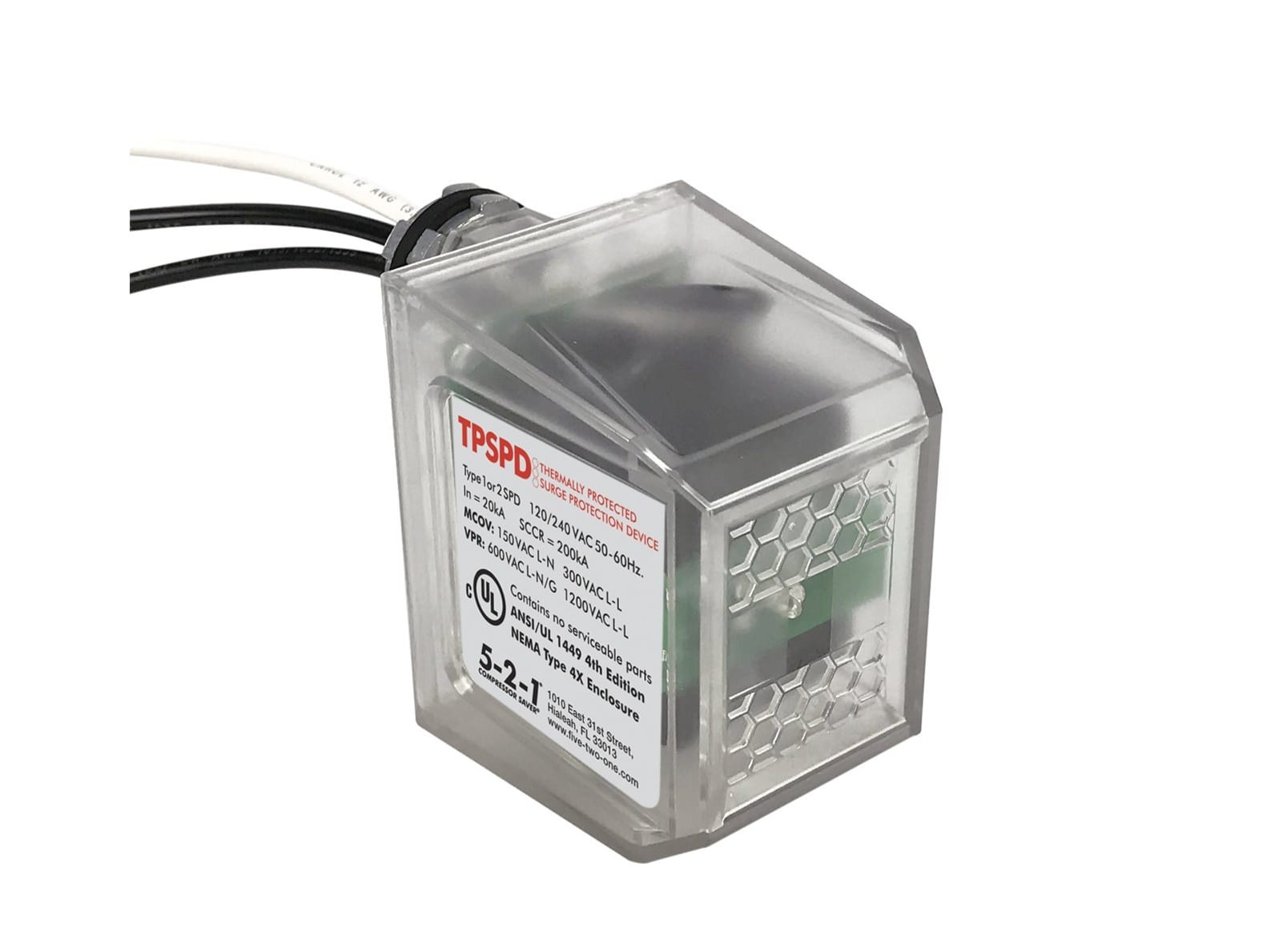

Five Two One TPSPD Thermally Protected Surge Protector

Product Description

The Five Two One TPSPD is a surge protector designed to safeguard HVAC systems and other electrical devices from damaging surges. It employs Thermally Protected Metal Oxide Varistor (MOV) technology for reliable performance. This surge protector is suitable for Type 1 or 2 installations and is housed in a NEMA 4X enclosure, making it suitable for both indoor and outdoor settings. An indicator LED shows the operational status of the device.

• Maximum surge current of 100,000 Amps
• Works in temperatures from minus ten degrees Celsius to fifty degrees Celsius
• NEMA 4X enclosure designed for diverse installation environments

Product Highlights

The TPSPD is ideal for protecting sensitive electronics in both residential and commercial settings. Its robust construction and high surge capacity ensure longevity and reliability in demanding conditions.

Product Information

Standard Information

• Brand: Five Two One
• Model: TPSPD

Technical Specifications

• MPN: TPSPD
• Operating Temperature: -10 degrees Celsius to 50 degrees Celsius
• Warranty: Three years with up to $10,000 Connected Equipment warranty
• Maximum Surge Current: 100,000 Amps
• SPD Type: Type 1 or 2
• Service Voltage: 120/240 volts (single phase), 50 or 60 Hz
• Nominal Discharge Current Rating: 20 kA
• Short Circuit Rating (SCCR): 200 kA
• Maximum Continuous Operating Voltage (MCOV): 150 VAC L-N, 300 VAC L-L
• Voltage Protection Rating (VPR): 600 VAC L-N/G, 1200 VAC L-L
• Diagnostic Indicator: Green LED (ON) for active protection; Green LED (OFF) indicates device replacement needed
• Approvals: UL 1449 4th Edition, ANSI, cUL
• Enclosure: NEMA 4X
• Installation: Connectable to Electrical Disconnect, Junction Box, or Electrical Panel
