Fisher Paykel 555798 Pcb Lcd Harness 6-wire Bus

Product Description

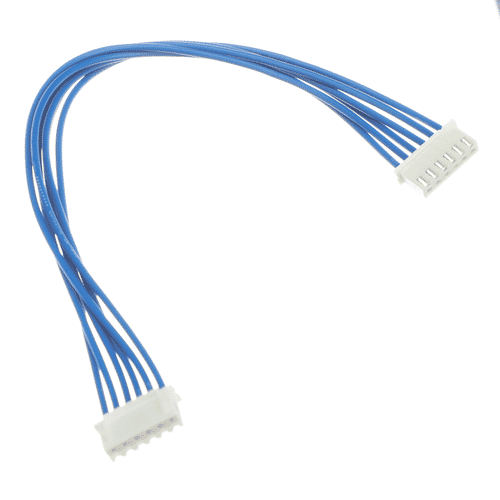

The FISHER PAYKEL 555798 is a PCB-to-LCD wiring harness that provides the electrical bus connection between a printed circuit board and the liquid crystal display assembly in compatible Fisher Paykel home appliances. This 6-wire bus harness carries control signals and power between the main control board and the user-interface display panel. It is a direct OEM-style replacement component installed by appliance service technicians during display or control board diagnostics and repair. Proper harness integrity is critical to display function and accurate communication between the control board and the front panel.

This harness is used in residential Fisher Paykel appliance applications where the PCB and LCD display are separate assemblies connected by a multi-wire bus. Typical installation scenarios include display replacement, control board swaps, or repair of intermittent display faults caused by a damaged or failed harness. Service technicians working on Fisher Paykel washers, dryers, or other appliances should verify the connector type and pin count match the original harness before installation.

Key Features

• 6-wire bus configuration for PCB-to-LCD signal and power routing
• OEM replacement harness for Fisher Paykel appliance control systems
• Maintains accurate communication between control board and display panel
• Designed to match original connector housings and pin layout

Compatibility

Designed as an OEM-style replacement wiring harness for Fisher Paykel home appliances equipped with a PCB-to-LCD 6-wire bus interface. Consult the appliance model and service documentation to confirm fitment before installation.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect the appliance from mains power before removing or connecting any wiring harness. Handle connector housings carefully to avoid damage to locking tabs or pins. Verify that the replacement harness part number matches the original before completing reassembly.

Technical Specifications

• Harness Type: PCB to LCD Bus
• Wire Count: 6

Standard Information

• Brand: FISHER PAYKEL
• Manufacturer Part Number: 555798
