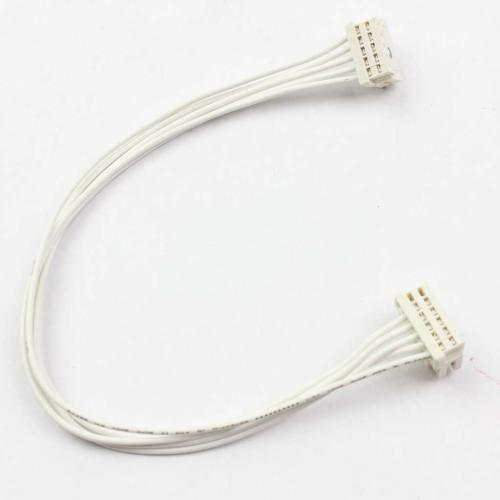

Fisher Paykel 529854 Harness Badge Isolator 605

Product Description

The FISHER PAYKEL 529854 is a harness badge isolator designed as a wiring and identification component used in Fisher Paykel home appliances. This part functions as an electrical isolator integrated into the wiring harness assembly, helping to secure and identify wiring routes within the appliance cabinet. It is typically installed by appliance service technicians during repair or component replacement procedures. The 529854 is an OEM-specified part sourced directly from Fisher Paykel, ensuring proper fit and function within supported appliance systems.

This isolator is intended for use in Fisher Paykel residential home appliances where harness routing and badge identification are required as part of the internal wiring assembly. It is commonly encountered during service calls involving wiring harness inspection, replacement, or reassembly. Technicians working on Fisher Paykel appliances should reference the appliance service manual to confirm this part number is appropriate for the specific unit being serviced before installation.

Key Features

• OEM Fisher Paykel replacement part for wiring harness assemblies
• Functions as an isolator within the harness badge assembly
• Designed for use in residential Fisher Paykel home appliances
• Direct OEM sourcing ensures proper fitment and specification compliance

Compatibility

Designed as an OEM-style replacement harness badge isolator for Fisher Paykel residential home appliances. Consult the appliance service manual or Fisher Paykel parts documentation to confirm compatibility with the specific model being serviced.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect and lock out all power to the appliance before accessing internal wiring harness components. Handle wiring assemblies carefully to avoid damaging connectors or insulation during removal and reinstallation. Refer to the appliance service documentation for harness routing and reassembly procedures specific to the unit.

Technical Specifications

• Part Type: Harness Badge Isolator
• Series: 605

Standard Information

• Brand: FISHER PAYKEL
• Manufacturer Part Number: 529854
