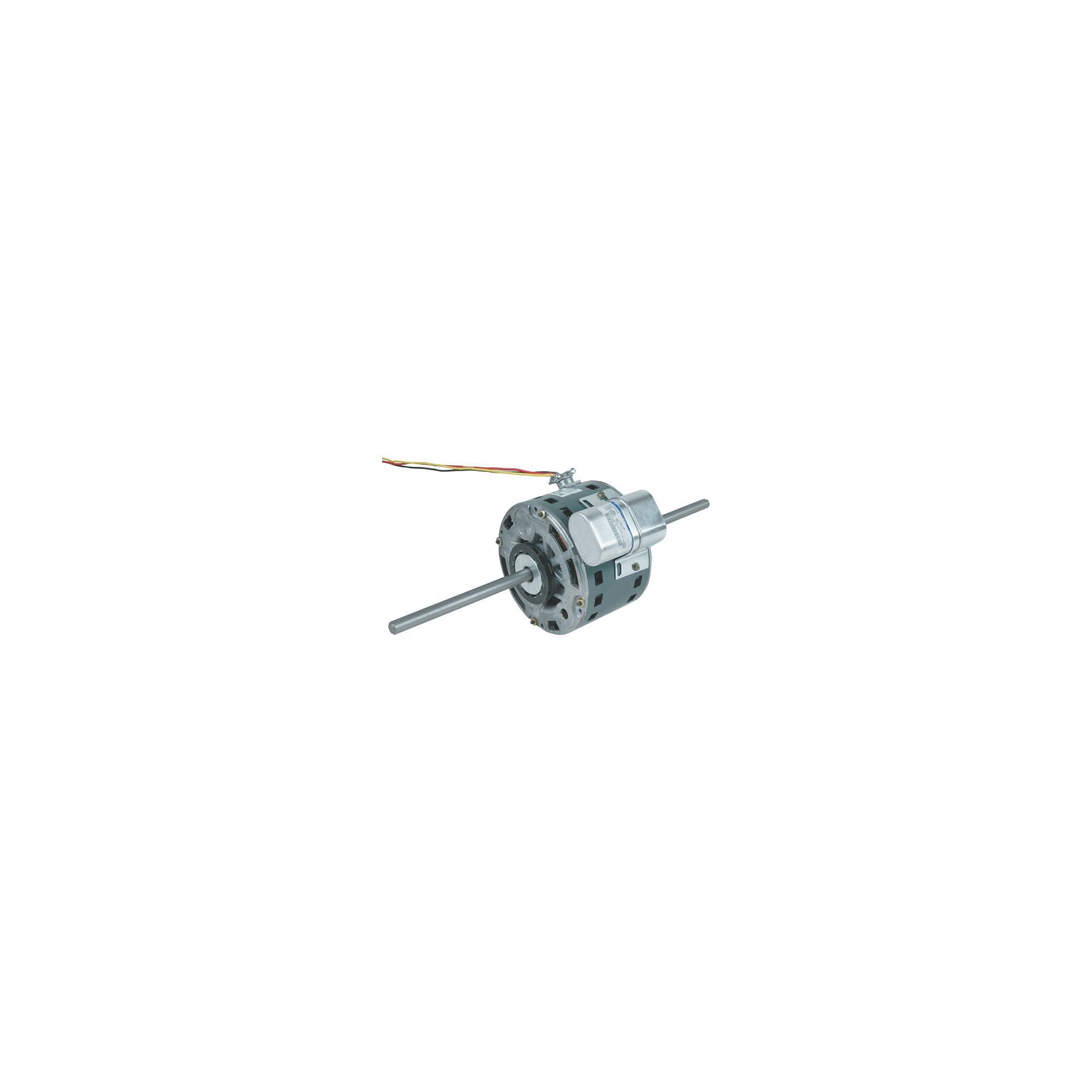

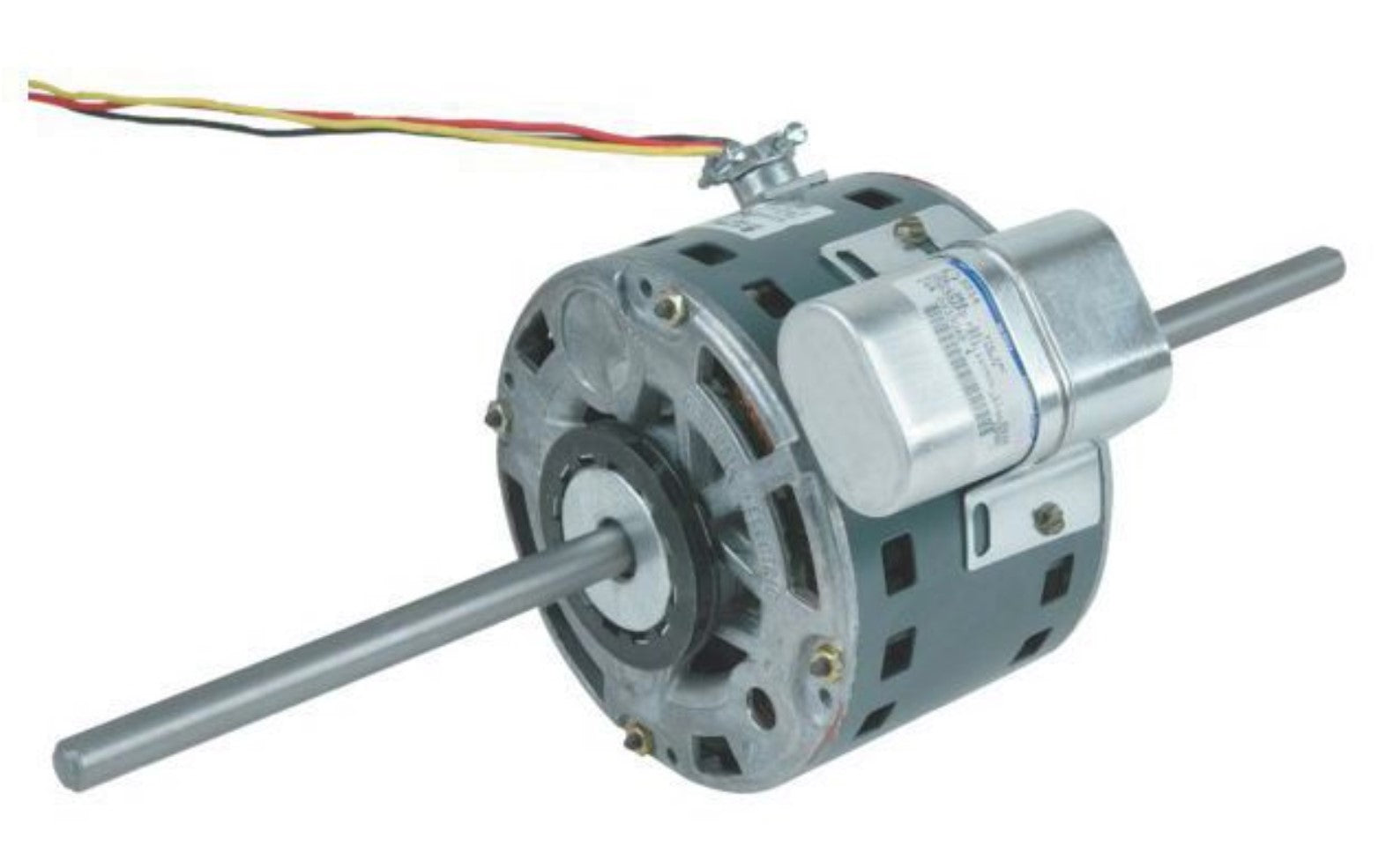

First Company M205 Condenser Motor, PSC 1/10 HP 208-230 VAC For 12/18SPU(X)

Product Description

The FIRST COMPANY M205 is a Permanent Split Capacitor (PSC) condenser motor designed for HVAC applications. Operating at 208-230 VAC with a single phase and 60 Hz frequency, this 1/10 HP motor provides continuous duty at 1125 RPM. It is specifically engineered for 12/18SPU(X) units, offering reliable performance for condenser fan operations. This motor replaces previous 1/10 HP motors, ensuring compatibility and efficient system function.

• PSC (Permanent Split Capacitor) motor type for efficient operation.
• Operates at 208-230 VAC, single phase, 60 Hz for broad compatibility.
• Designed for continuous duty with 1125 RPM and clockwise rotation.

Product Highlights

Ideal for 12/18SPU(X) units, providing reliable condenser fan motor replacement.

Product Information

Standard Information

• Brand: FIRST COMPANY
• Manufacturer Part Number: M205
• Country of Origin: USA

Technical Specifications

• Amps: 0.83
• Basis Of Rotation View: Lead End
• Frequency: 60 Hz
• Duty Cycle: Continuous (S1)
• Insulation Class: B
• Horsepower: 1/10 HP
• Motor Type: PSC (Permanent Split Capacitor)
• Number of Speeds: 1 (Single)
• Phase: Single
• Protection: No Protection
• Rotation: Clockwise (CW)
• RPM: 1125
• Input Voltage: 208-230 VAC
• Application: for 12/18 SPU(X)
• Product Type: Condenser Motor
