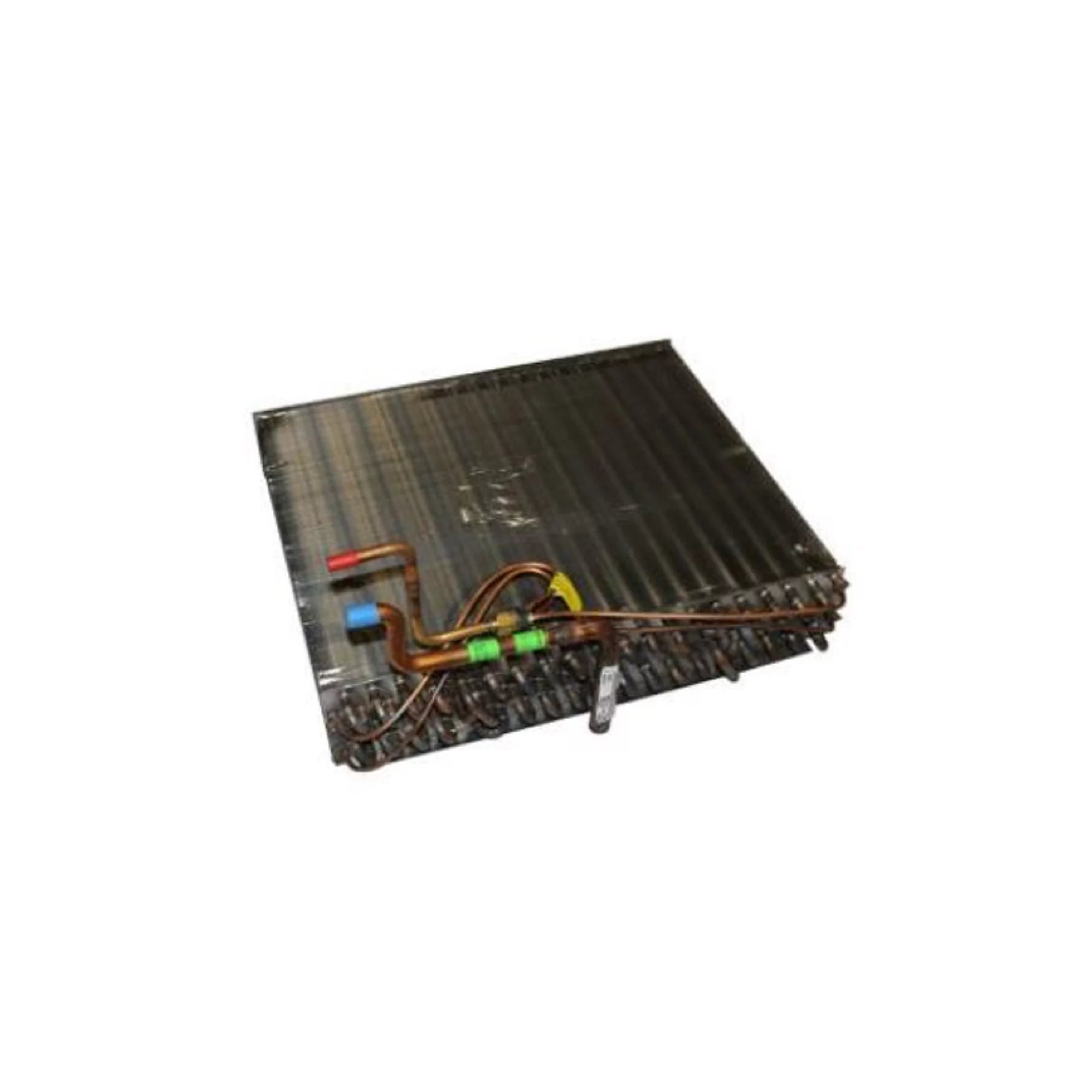

First Company 9-321-19-1 1.5 Ton Uncased Evaporator Coil 18000 BTU (Horizontal) 9-321-19-1

Product Description

The First Company 9-321-19-1 is a 1.5 ton uncased evaporator coil designed for indoor horizontal airflow applications using R-410A refrigerant. It provides a nominal cooling capacity of 18,000 BTU, features aluminum coil fins, and uses sweat or braze fittings for the liquid and suction lines. The unit is intended for AHRI indoor coil installations and carries a Prop 65 warning.

• Nominal cooling capacity: 18,000 BTU; rated 1.5 ton uncased evaporator coil
• Designed for R-410A refrigerant with aluminum coil fins and horizontal airflow
• Liquid and suction line fittings: sweat or braze; product weight 20 lbs; dimensions 43 x 10 x 21 in

Product Highlights

Uncased indoor evaporator coil for horizontal R-410A systems with aluminum fins and sweat or braze connections.

Product Information

Standard Information

• Brand: FIRST COMPANY
• Manufacturer Part Number: 9-321-19-1

Technical Specifications

• Brand: First Company
• MPN: 9-321-19-1
• SKU: 9321191
• Product Name: 1.5 Ton Uncased Evaporator Coil
• Alternate Product Name: Coil 3R 8TH 30LG
• Coil Type: Evaporator
• Tonnage: 1.5
• Cooling Capacity (BTU/hr): 18000
• Refrigerant: R-410A
• Air Flow Direction: Horizontal
• Coil Fin Material: Aluminum
• Liquid Line Fitting Type: Sweat or Braze
• Suction Line Fitting Type: Sweat or Braze
• AHRI Usage: Indoor Coil
• Cased: No
• Corrosion Protected Coil: No
• Prop 65: Yes
• Weight (product, lbs): 20
• Dimensions (L x W x H, inches): 43 x 10 x 21
• Package Length (inches): 45.435
• Package Width (inches): 13.7
• Package Height (inches): 22.88
• Package Weight (lbs): 20
• Cubic Measurement (ft^3): 5.2257
