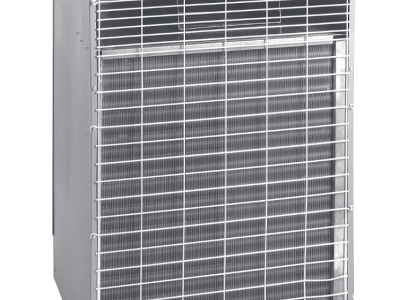

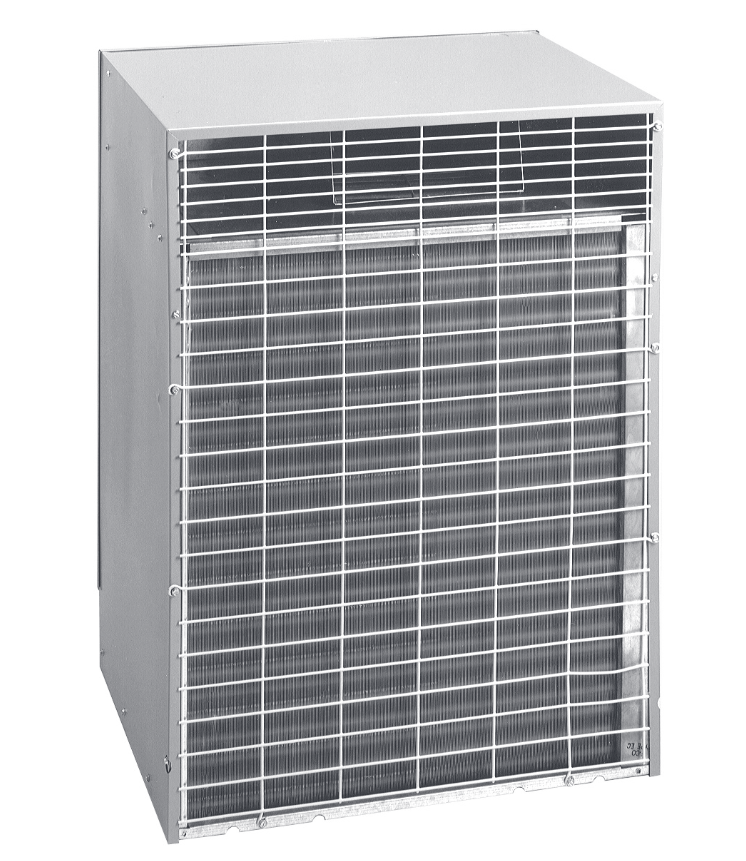

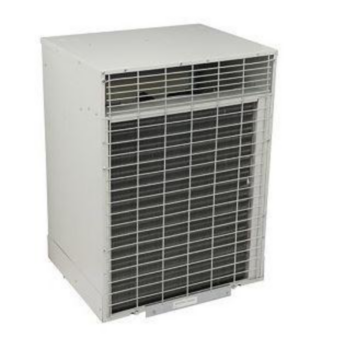

First Company 75G2412BC Condenser Unit

Product Description

The First Company 75G2412BC is a condenser unit designed for through-the-wall installation. This unit is compatible with blower coils and air handlers that use ECM motors, ensuring efficient operation. It utilizes environmentally friendly R410A refrigerant, which may require field adjustments. Key features include a high-pressure switch for safety, a propeller-type fan with an ECM motor for optimal airflow, and a sloped base pan for effective drainage. A plastic-coated coil guard protects the unit from damage, and a filter drier is included to maintain refrigerant quality.

• Designed for through-the-wall installation.
• Utilizes R410A refrigerant.
• Includes a high-pressure switch and ECM motor fan.

Product Highlights

This condenser unit is engineered for residential use, providing reliable cooling performance in a compact design.

Product Information

Standard Information

• Manufacturer: First Company
• Product Code: 75G2412BC

Technical Specifications

• Refrigerant: R-410A
• Tonnage: 1.5 to 2.5
• Nominal Capacity (Tons): 24000
• Electrical Designation: 1-60-208/230
• SEER: 12.0
• Compressor Speed: Single
• Suction Line Size: 3/4 inches
• Liquid Line Size: 3/8 inches
• Minimum Circuit Breaker: 18
• Rated Load Amperes (RLA): 12.8
• Locked Rotor Amperes (LRA): 58.3
• Building Type: Residential
• Weight: 200 pounds
• Dimensions: 19 inches x 28 inches x 25.75 inches
