First Company 72fhe12050a2 Vertical Pthp Heat Pump 12000 Btu/h

Product Description

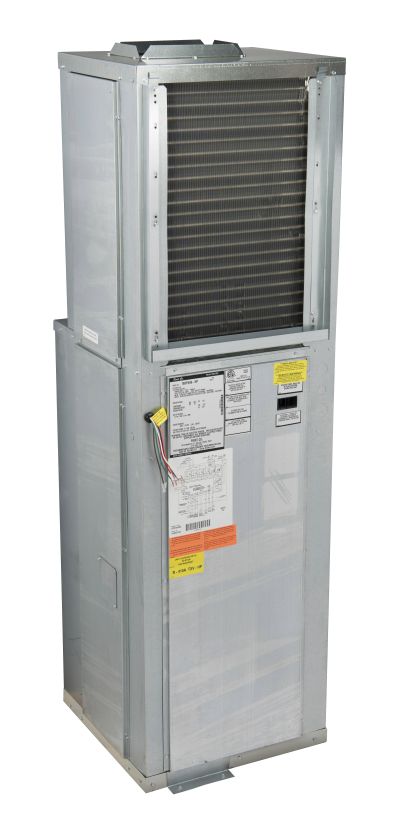

The FIRST COMPANY 72fhe12050a2 is a vertical packaged terminal heat pump (PTHP) chassis designed for through-the-wall heating and cooling applications. It operates on 208/240V single-phase 60 Hz power and delivers 12000 BTU/h of heat pump capacity. Backup electric heat is built in, rated at 4.5 kW at 240V or 3.4 kW at 208V. This is a chassis-only unit intended for installation by a licensed HVAC technician into a compatible PTHP wall sleeve.

The 72fhe12050a2 is suited for vertical PTHP installations in hotels, motels, assisted living facilities, dormitories, and multi-tenant residential buildings where individual room temperature control is required. The unit provides both heating and cooling from a single chassis, eliminating the need for a separate electric furnace or boiler connection. This model replaces the Amana VTH123E05AA and is noted as a direct chassis substitution for that application.

Key Features

• 12000 BTU/h heat pump capacity for room-by-room climate control
• Backup electric heat at 4.5 kW (240V) or 3.4 kW (208V) for low-ambient heating support
• 208/240V single-phase 60 Hz operation compatible with standard commercial branch circuits
• Vertical PTHP chassis-only configuration fits existing through-the-wall sleeves
• Direct replacement for Amana model VTH123E05AA

Compatibility

Designed as a chassis-only replacement for vertical PTHP wall sleeve installations. Replaces Amana model VTH123E05AA. Confirm sleeve dimensions and electrical configuration before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician familiar with PTHP systems and NEC requirements for dedicated branch circuits. Disconnect and lock out power to the wall sleeve before removing the existing chassis or inserting the replacement. Verify that the existing sleeve, drain pan, and electrical supply are compatible with this chassis prior to installation. This is a special-order, non-returnable, non-cancellable item — confirm part number and application before placing an order.

Technical Specifications

• Cooling/Heating Capacity: 12000 BTU/h
• Voltage: 208/240V
• Phase: Single Phase
• Frequency: 60 Hz
• Backup Electric Heat (240V): 4.5 kW
• Backup Electric Heat (208V): 3.4 kW
• Unit Configuration: Vertical PTHP Chassis Only

Standard Information

• Brand: FIRST COMPANY
• Manufacturer Part Number: 72fhe12050a2
