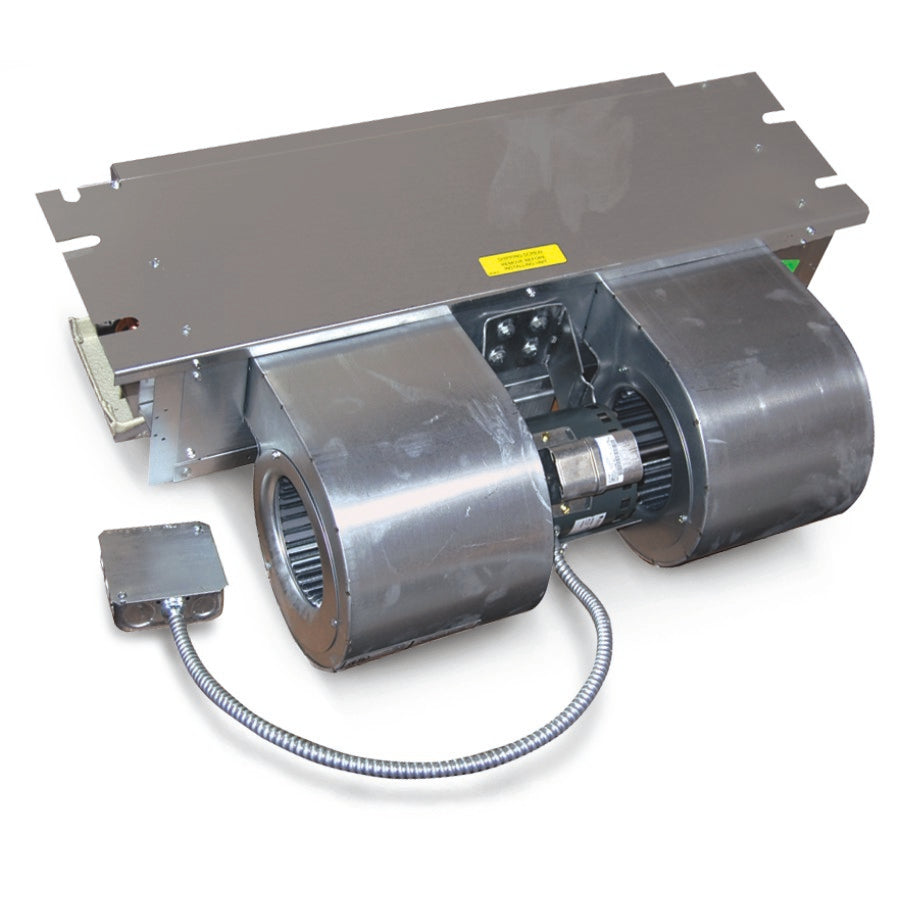

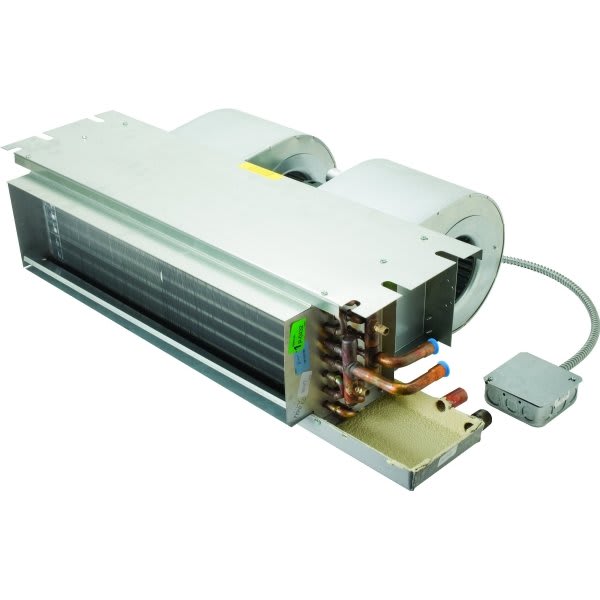

First Company 4HBC3-RH HBC Series Fan Coil 400 CFM Right Hand

Product Description

The First Company 4HBC3-RH HBC Series fan coil is suitable for concealed installations, allowing efficient use of space while ensuring easy maintenance access. With a maximum airflow of four hundred CFM, this horizontal fan coil is equipped with copper tubes and manual air vents. It operates at one hundred twenty VAC and includes a sloped, insulated drain pan.

• Designed for fully concealed applications
• Insulated with Tuf-Skin
• Positive slope drain pan

Product Highlights

This fan coil is engineered to function optimally in various heating and cooling configurations, making it ideal for residential or commercial settings.

Product Information

Standard Information

• Product Category: Hydronic Air Handler
• Type: Fan Coil

Technical Specifications

• Configuration: Horizontal
• Maximum Air Flow: 400 CFM
• Product Width: 36-1/8 inches
• Product Depth: 21-1/2 inches
• Tons: 1 nominal
• Rows: 3
• Connection Size: 5/8 inches
• Drain Connection Size: 3/4 inches
• Amperage Rating: 1.1 A
• Country of Origin: US
• Flow Rate: 400 CFM
• Frequency Rating: 60 Hz
• Manufacturer Name: First Co.
• Material: Aluminum/Copper
• Motor HP: 1/12 hp
• Motor RPM: 1050 RPM
• Motor Type: PSC
• Mounting Type: Ceiling
• Number of Phases: 1
• Refrigerant Type: R-410A
• Series: HBC
• Voltage Rating: 120 VAC
• CFM: 400
• Connection Type: Right
• Height: 10 inches
• Nom. CFM: 400
• Nom. Tons: 1
• Volts: 120
• UNSPSC: 40101718
• Package Quantity: 1
• Voltage: 120
• Certifications & Standards: AbilityOne, ADA Compliant, GSA Approved, Made in the USA, TAA/BAA Compliant, UL Listed
