First Company 4HBC3-LH HBC Series Fan Coil 400 CFM Left Hand

Product Description

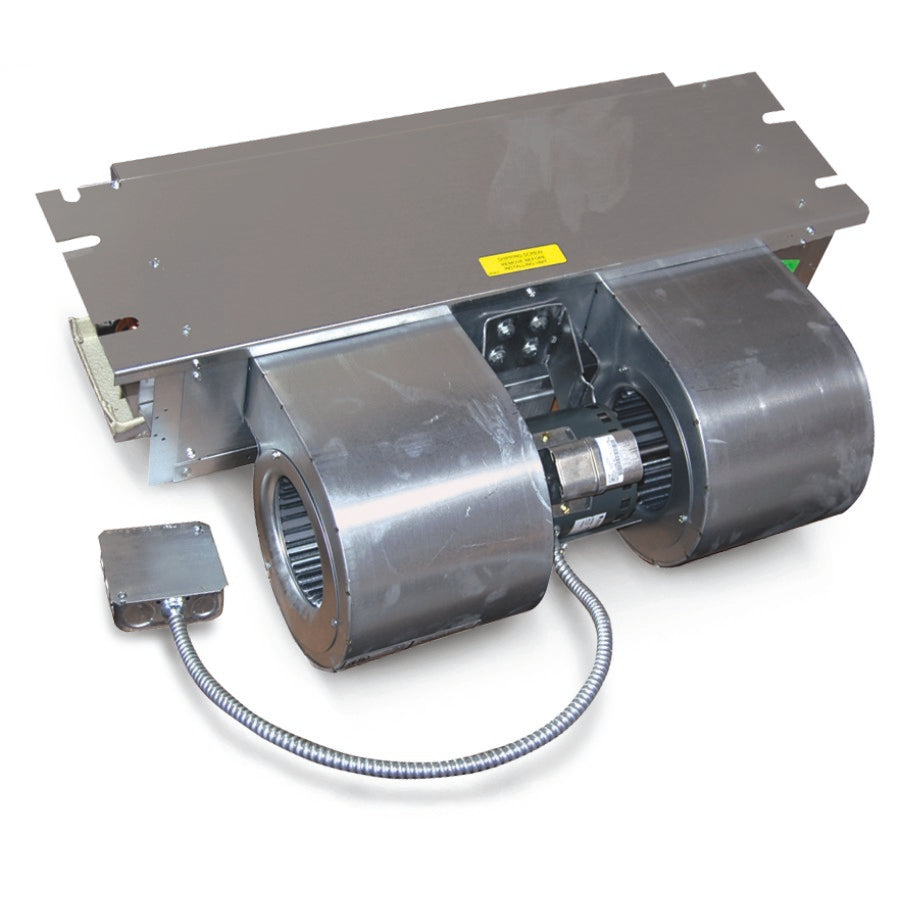

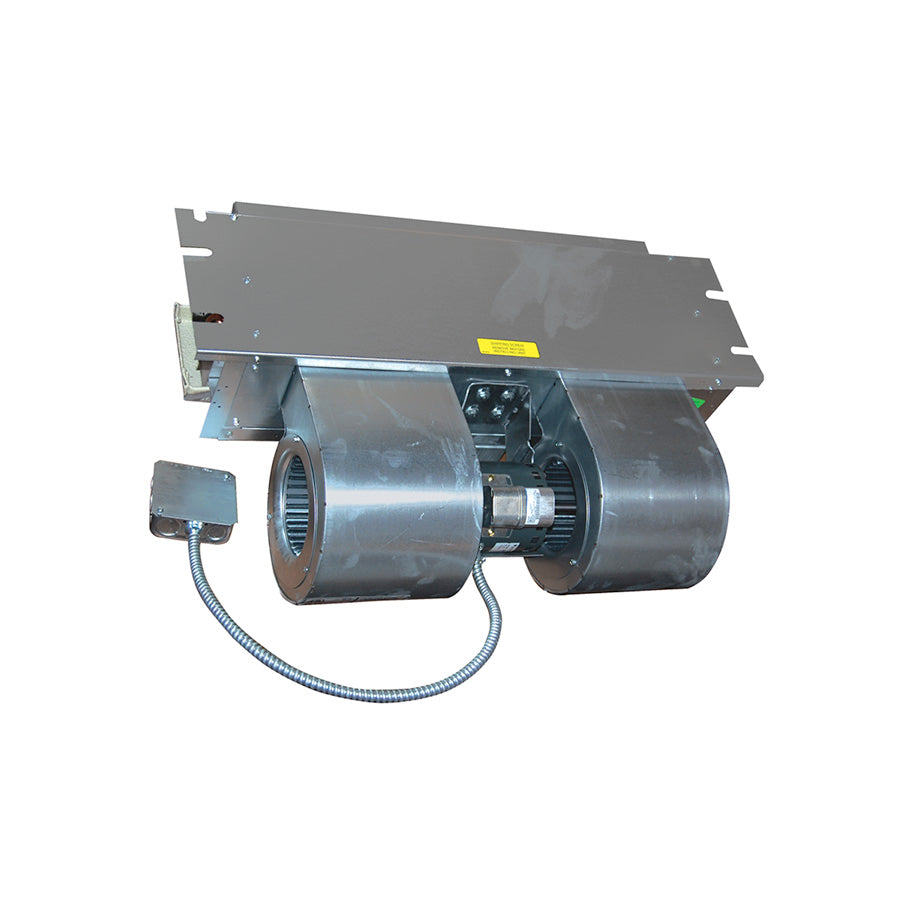

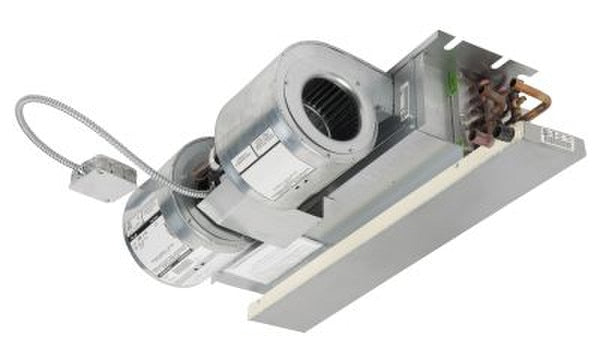

The First Company 4HBC3-LH is a concealed ceiling fan coil designed for effective air handling in hidden spaces. Its horizontal format and maximum airflow capacity of four hundred cubic feet per minute (CFM) make it suitable for various HVAC applications that require space-saving solutions. Featuring top-quality insulation with Tuf-Skin, the unit also incorporates seamless copper tubes and headers for efficient operation.

• Designed for concealed applications
• Features Tuf-Skin insulation
• Includes positive slope drain pan

Product Highlights

This unit operates quietly while providing optimal airflow, perfect for consistent indoor comfort.

Product Information

Standard Information

• Type: Fan Coil
• Brand: First Company

Technical Specifications

• Product Line: HBC Series
• Configuration: Horizontal
• Maximum Air Flow: 400 CFM
• Width: 36.125 inches
• Depth: 21.5 inches
• Height: 10 inches
• Amperage Rating: 1.1 A
• Country of Origin: US
• Flow Rate: 400 CFM
• Frequency Rating: 60 Hz
• Material: Aluminum/Copper
• Motor HP: 1/12 hp
• Motor RPM: 1050 rpm
• Motor Type: PSC
• Mounting Type: Ceiling
• Number of Phases: 1
• Voltage Rating: 120 VAC
• Connection Type: Left
• Connection Size CW: 5/8 inches
• Connection Size HW: 5/8 inches
• Drain Connection: 3/4 inches
• Nominal Tons: 1
