First Company 451003R Horizontal, Ceiling Mount Air Handler 1000CFM 3 Row Cooling Coil Right Hand

Product Description

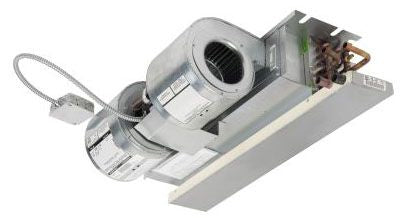

The FIRST COMPANY 451003R is a horizontal, ceiling mount hydronic air handler designed for chilled or hot water systems. This unit provides 1000CFM airflow and features a 3-row cooling coil in a right-hand configuration. Operating at 120 VAC, 3.6 Amps, and 60 Hz, it includes a 1/4 HP blower motor with 1550 RPM. Its compact dimensions of 52.1 inches width, 21.0 inches length, and 10.0 inches height make it suitable for various ceiling installations.

• Horizontal mounting and ceiling mount design for flexible installation.
• 1000CFM airflow with a 3-row cooling coil for efficient temperature control.
• Hydronic system compatibility for chilled or hot water applications.

Product Highlights

Compact hydronic air handler with 1000CFM airflow and 3-row cooling coil for ceiling mount applications.

Product Information

Standard Information

• Brand: FIRST COMPANY
• Manufacturer Part Number: 451003R
• Country of Origin: USA

Technical Specifications

• Weight: 67.0 LB
• Length: 21.0 Inches
• Width: 52.1 Inches
• Height: 10.0 Inches
• Series: HBC Series
• Equipment Type: Hydronic
• Refrigerant Requirement: None Required
• Input Voltage: 120 VAC
• Current: 3.6 Amps
• Phase: Single
• Frequency: 60 Hz
• Blower Motor Horsepower: 1/4 HP
• Blower Motor RPM: 1550
