First Company 450303L 3HBC3-LH Coil Fan Uncased PSC 120V 3 Ton Left Hand Replaces 26280 SUB 2

Product Description

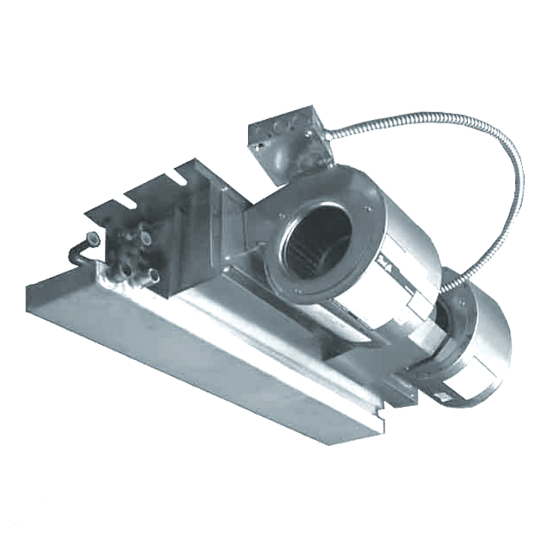

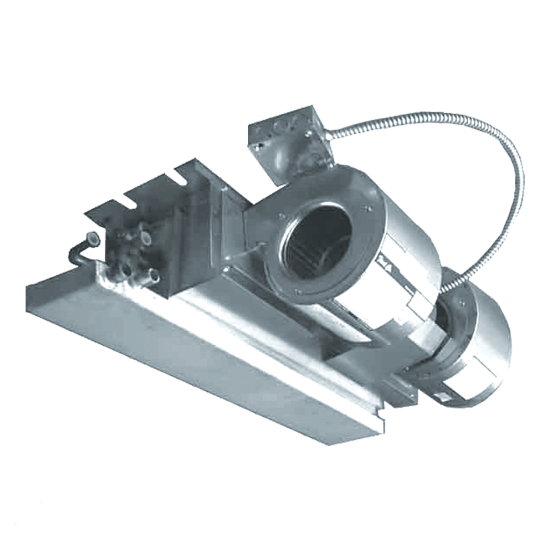

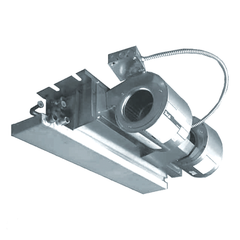

The FIRST COMPANY 450303L is a 3-ton uncased PSC coil fan designed for horizontal, ceiling mount air handler applications. Operating at 120V, this hydronic unit features a 3-row cooling coil configuration and a 1/20 HP blower motor with 1050 RPM, delivering 300 CFM. It is suitable for chilled or hot water systems, providing efficient air handling in various settings. Its compact dimensions of 30 1/8 inches width, 21 inches depth, and 10 inches height allow for versatile installation.

• 3-ton capacity with a 3-row cooling coil configuration for effective temperature control.
• Operates on 120V with a 1/20 HP PSC blower motor, providing 300 CFM airflow.
• Designed for horizontal, ceiling mount hydronic air handler applications, featuring a left-hand configuration.

Product Highlights

Compact 3-ton uncased PSC coil fan for hydronic ceiling mount air handling, featuring 120V operation and 300 CFM.

Product Information

Standard Information

• Brand: FIRST COMPANY
• Manufacturer Part Number: 450303L
• Country of Origin: USA

Technical Specifications

• Capacity: 3 Ton
• Depth: 21 inches
• Input Voltage: 120V
• Width: 30 1/8 inches
• Height: 10 inches
• Connection Size: 5/8 inch
• Drain Size: 5/8 inch
• Model Number: 3HBC3 LH
• Replacement Part Identifier: 26280 SUB 2
• Part Number: 121853
• Series: HBC Series
• Equipment Type: Hydronic
• Refrigerant Requirement: None Required
• Airflow: 300 CFM
• Amperage: 0.09 A
• Phase: Single
• Frequency: 60 Hz
• Blower Motor Horsepower: 1/20 HP
• RPM: 1050
