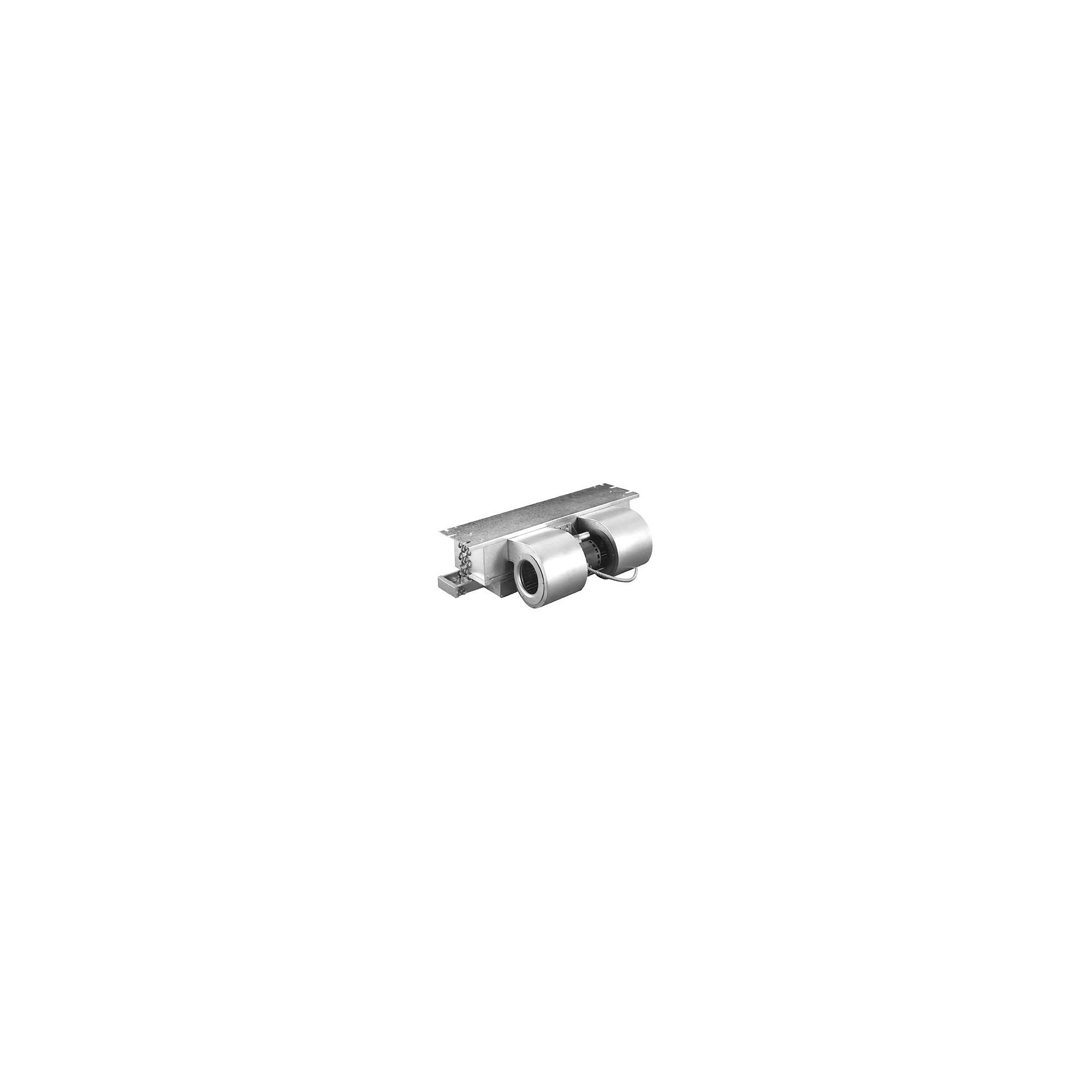

First Company 413010 2.5 Ton Air Handler, 208-240/1/60, Horizontal, R-410A

Product Description

The FIRST COMPANY 413010 is a 2.5 Ton Air Handler designed for ceiling mount DX applications. This unit features a sloped and insulated drain pan with primary and secondary drains for efficient condensate management. It includes a 240/24V relay/transformer and copper tube coils. Factory-installed electric heat is included, with the exception of 0 kW models.

• Sloped and Insulated Drain Pan
• Primary and Secondary Drains
• Easy Service Access

Product Highlights

Space-saving HX Series fan coil is only 10" high, allowing it to recess in a ceiling. Compatible with most split-system condensing units and heat pumps.

Product Information

Standard Information

• Brand: FIRST COMPANY
• Manufacturer Part Number: 413010
• Country of Origin: USA

Technical Specifications

• CFM: 1000
• EER: 10.5-12.2
• SEER: 13-14.5
• Brand: First Company
• Phase: Single
• Stage: Single
• Width: 43.25
• Height: 10
• Length: 21
• Tonnage: 2.5
• Voltage: 208-240 VAC
• ETL Listed: Yes
• Cycle/Hertz: 60 Hz
• Refrigerant: R-410A
• AHRI - Usage: Indoor AHU
• Product Family: HX Series
• Blower Motor HP: 1/4 HP
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Cooling Capacity: 30000
• Blower Motor Type: PSC (Permanent Split Capacitor)
• Energy Star Rated: No
• Maximum Fuse Size: 50, 60
• Air Flow Direction: Horizontal
• Heat Pump Compatible: No
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 3/8"
• Suction Line Size (OD): 7/8"
• Electric Heat Range [kW]: 10
• Liquid Line Fitting Type: Sweat or Braze
• Drain Connection Quantity: 2
• Suction Line Fitting Type: Sweat or Braze
• Minimum Circuit Ampacity (MCA): 48
• Maximum Overcurrent Protection (MOCP): 60
• Heating Capacity: 34100
• Amps: 43.6
• Minimum Circuit Amps: 48
• Kilowatt (KW): 10
• Manufacturer Product Number: 413010
• Model: 30HX10
• MPN: 413010
