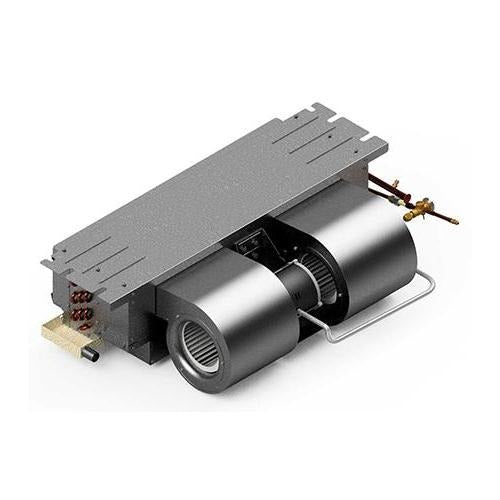

First Company 413005 2 1/2 Ton Horizontal Ceiling-Mount DX Air Handler 5 kW (2 1/2 Ton)

Product Description

The First Company 413005 is a horizontal ceiling-mount direct-expansion (DX) air handler rated for 2.5 ton systems, providing 30,000 BTU cooling, 17,000 BTU heating and 5 kW electric heat. It operates on 208–240 VAC with a 240 V motor, delivers approximately 1000 CFM, and is factory-configured for R-410A refrigerant. Electrical data include 22.8 A running current, 25 A minimum circuit amps, and 25/30 A maximum fuse sizes.

• 2.5 ton horizontal ceiling-mount DX air handler with 30,000 BTU cooling and 17,000 BTU heating capacity
• 5 kW electric heat; input voltage 208–240 VAC with 240 V motor; rated current 22.8 A, MCA 25 A, max fuse 25/30 A
• Factory-configured for R-410A refrigerant, approx. 1000 CFM airflow; refrigerant line sizes 7/8 in suction and 3/8 in liquid

Product Highlights

Horizontal ceiling-mount DX air handler, 2.5 ton, 5 kW electric heat, 1000 CFM, R-410A

Product Information

Standard Information

• Brand: FIRST COMPANY
• Manufacturer Part Number: 413005
• Country of Origin: USA

Technical Specifications

• Brand: First Company
• Manufacturer Part Number: 413005
• SKU / PIM Number: 1369225200667
• ERP Number: 41501
• Unit of Measure: EA
• Tonnage: 2.5 Ton
• Cooling Capacity: 30,000 BTU
• Heating Capacity: 17,000 BTU
• Electric Heat (kW): 5 kW
• Refrigerant: R-410A
• CFM: 1000
• Input Voltage: 208-240 VAC
• Motor Voltage: 240 V
• Rated Current: 22.8 A
• Minimum Circuit Amps: 25 A
• Maximum Fuse Size: 25 A / 30 A
• Suction Line Size: 7/8 in
• Liquid Line Size: 3/8 in
• SEER: 13 / 14.5
• EER: 11 / 11.5 / 12.2 / 10.5
• Weight: 71 lb
• Dimensions: 21.0 x 43.3 x 10.0 in (L x W x H)
• Mounting Type: Horizontal ceiling mount
• Hazardous Material: No
• EPA Certification Required: No
• Country of Origin: USA
• Tier: HX Series
