First Co 36HX10 HX Series 3 Ton Horizontal Aluminum Copper Uncased Coil Galvanized Steel

Product Description

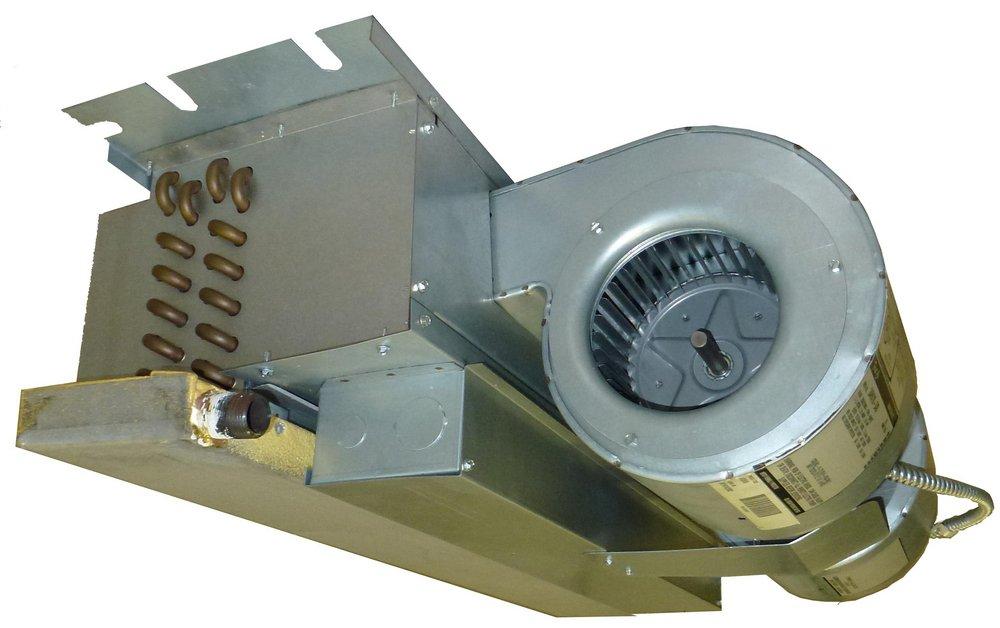

The First Co HX Series with MPN 36HX10 is a 3-ton horizontal aluminum and copper coil housed in galvanized steel. Designed for residential HVAC systems, this uncased coil ensures efficient cooling and heating with a high-static fan coil setup.

• Rated for 36000 Btu/hr cooling capacity
• 34100 Btu/hr heating capacity
• Horizontal recessed mount

Product Highlights

This First Co HX Series coil can handle 36000 Btu/hr for cooling and 34100 Btu/hr for heating. It's made for horizontal recessed installation and is equipped with a sloped and insulated drain pan. The unit utilizes a 208/240 VAC power supply and features primary and secondary drain connections.

Product Information

Standard Information

• Brand: First Co
• MPN: 36HX10
• Series: HX Series
• Type: High-Static
• Color: Silver
• Mounting Type: Horizontal Recessed
• Manufacturer Name: First Co

Technical Specifications

• Cooling Capacity: 36000 Btu/hr
• Heating Capacity: 34100 Btu/hr
• Nominal Capacity: 34121 Btu/hr
• Flow Rate: 1200 cfm
• Voltage Rating: 208/240 VAC
• Amperage Rating: 44.5 A
• Refrigerant Type: R-410A
• Liquid Line Size: 3/8 in
• Suction Line Size: 7/8 in
• Motor HP: 1/3 hp
• Dimensions: 49-1/4 in L x 10 in W x 21 in H
