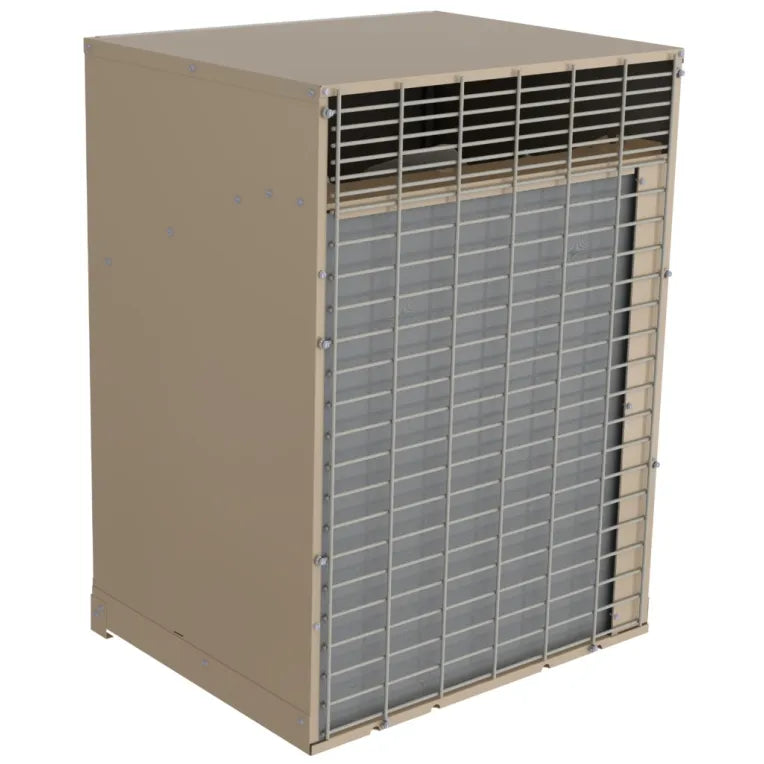

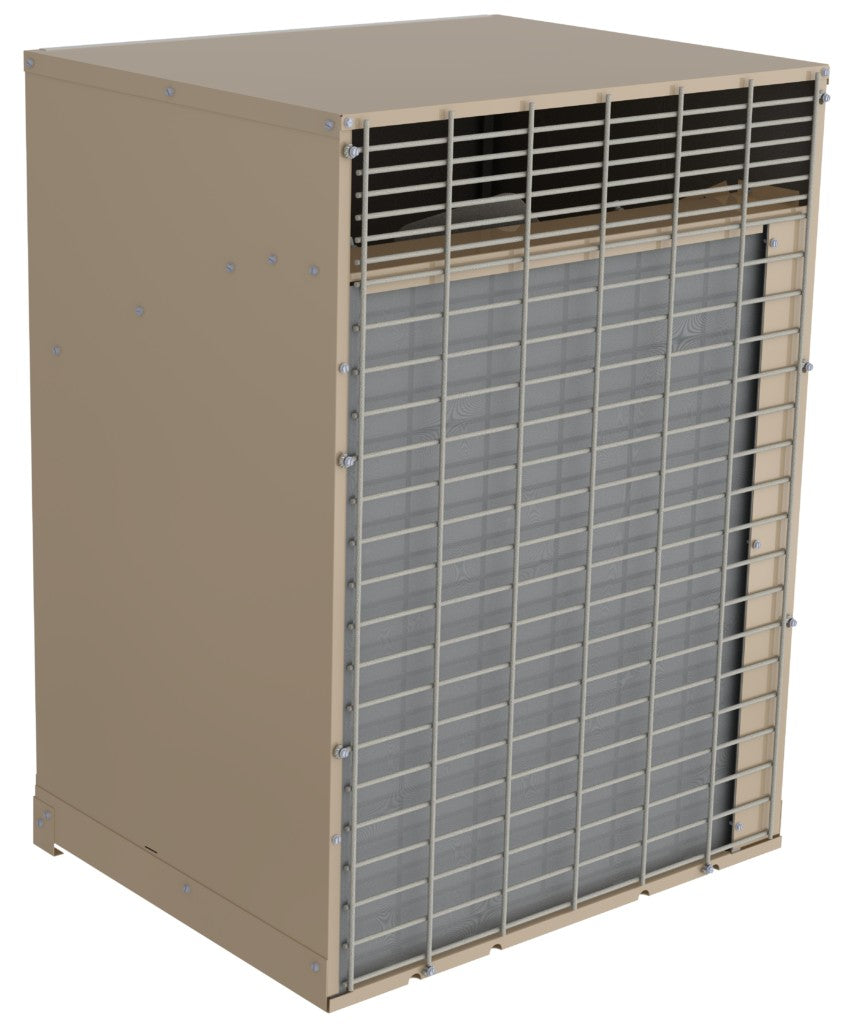

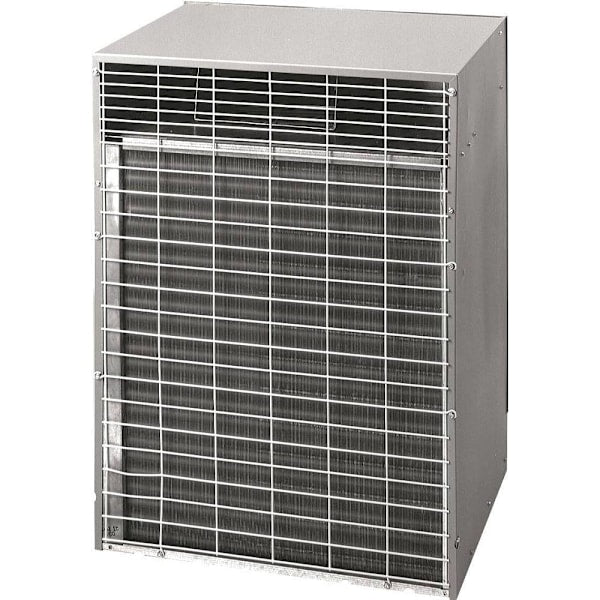

First Company 24WCX2BA200F Thru-The-Wall Cond R454B 24K BTU

Product Description

The First Company 24WCX2BA200F is designed for through-the-wall installation in R454B refrigerant applications. This unit features a cabinet designed to enhance water containment and operates with an extra-high efficiency compressor that is factory charged. The field adjustment is needed for the refrigerant charge upon installation.

• Factory charged with R454B refrigerant requiring field adjustment
• Unique cabinet design for improved water management
• Propeller type fan for effective air circulation

Product Highlights

This condensing unit is engineered for reliable cooling performance in various settings.

Product Information

Standard Information

• Application: Condensing Unit Through-The-Wall
• Brand: First Company
• Model: 24WCX2BA200F

Technical Specifications

• Cooling Capacity: 24000 BTU
• Nominal Capacity: 24000 BTU
• Nominal Tons: 2 Ton
• Refrigerant Type: R454B
• Voltage: 208/230 V
• Shipping Weight: 200 lbs
• Unit Height: 32 inches
• Unit Width: 24 inches
• Unit Depth: 19 inches
• Liquid Line Size: 3/8 inches
• Suction Line Size: 3/4 inches
• SEER: 12
