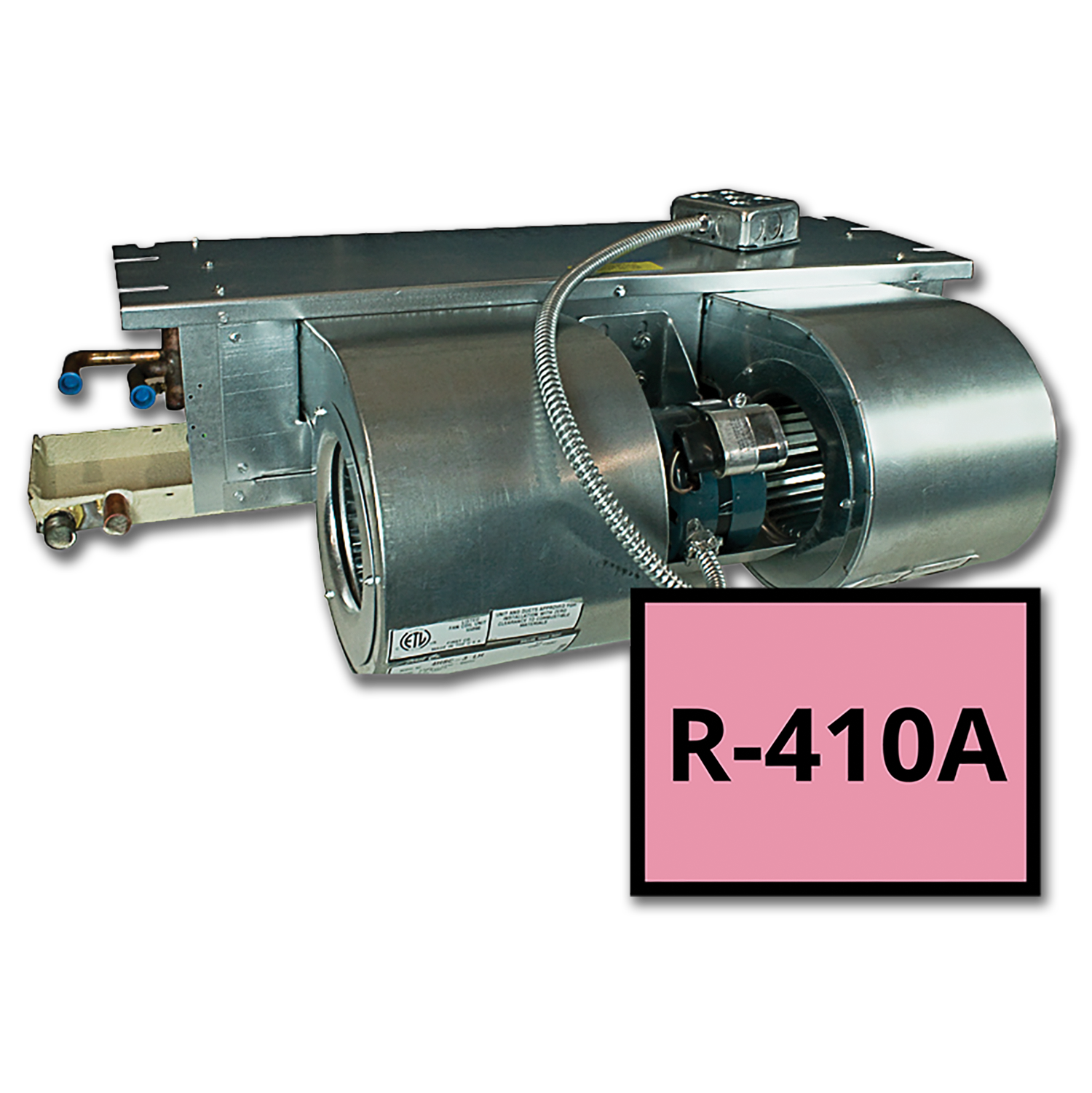

First Company 24HXS0502UAP000AAF HX Series Fan Coil Unit, 2 Tons, 5,000 W

Product Description

The FIRST COMPANY 24HXS0502UAP000AAF HX Series fan coil unit is designed to save space with its 10-inch height, allowing for easy recessed ceiling installation. This horizontal design eliminates the need for equipment closets. It includes a 240/24V transformer and a 5 kW heater element. Compatible with most split-system condensing units and heat pumps.

• Designed for horizontal recessed ceiling installation, saving valuable floor space.
• Includes a factory-installed 5 kW electric heat package and a 240/24V transformer.
• Features a reliable PSC blower motor delivering up to 800 CFM nominal airflow.

Product Highlights

Space-saving HX Series fan coil with horizontal, recessed design. Includes electric heat and is compatible with most split-system condensing units and heat pumps.

Product Information

Standard Information

• Brand: FIRST COMPANY
• Manufacturer Part Number: 24HXS0502UAP000AAF

Technical Specifications

• Amperage Rating: 22.8 A (FLA), 25 A (MCA, 208V), 30 A (MCA, 240V)
• BTU Rating: 24,000 Btu/hr
• CFM Rating: 800 CFM
• Coil Type: Horizontal Fan Coil
• Connection Type: 3/4" NPT (Drain Pan)
• Domestic/Import: Domestic
• Drive Type: PSC
• Finish: Galvanized
• Frequency Rating: 60 Hz
• Fuse Rating: 25 A (208V), 30 A (240V)
• HP Rating: 1/4 HP
• Material: Galvanized Steel (Drain Pan), Copper/Aluminum (Coils)
• Metering Device: TXV
• Model: 24HXS0502UAP000AAF
• Mounting Type: Recessed Ceiling Mount (Horizontal)
• Phase: 1
• Power Rating: 5,000 W (Electric Heat)
• Refrigerant Type: R-410A
• Series: HX Series
• Suitable For Use With: Most Split System Condensing Units and Heat Pumps (Heat Pumps Require Field Kit #942-1); R-410A Refrigerant
• Tonnage: 2.0 Ton
• Voltage Rating: 208-230 V
• Width: 22 in
• Height: 10 in
• Depth: 21 in
• Liquid: 3/8 in
• Suction: 5/8 in
• Heat: 5 KW
