First Company 19HX5-C HX Series 1.5 Ton Piston Uncased Horizontal Recessed Ceiling Fan Coil 5kW Heat

FIRST COMPANY
Brand: FIRST COMPANY
SKU: 19HX5-C
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$803.89
$803.89
LTL Delivery

This product weighs 60 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

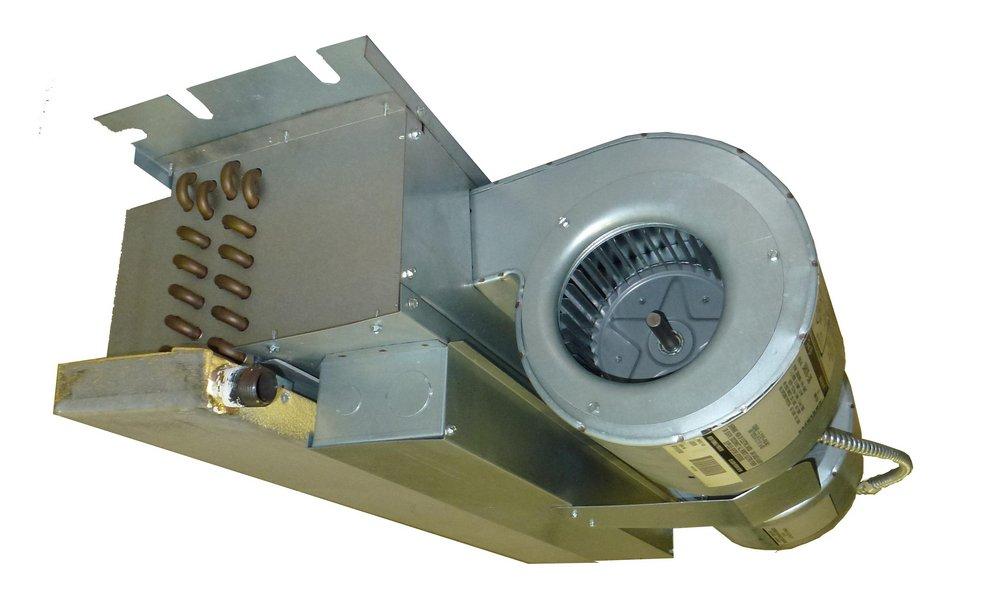

The FIRST COMPANY 19HX5-C HX Series fan coil unit is designed for HVAC systems, sold to licensed contractors. This uncased horizontal unit features primary and secondary drains and easy service access. It utilizes copper tube coils and a sloped, insulated drain pan. The unit operates with R-410A refrigerant and has a 240V relay and 24V transformer.

  • Features primary and secondary drains
  • Easy service access
  • Copper tube coils
  • Sloped and insulated drain pan

Product Highlights

Uncased horizontal fan coil with copper tube coils, primary/secondary drains, and easy access.

Product Information

Standard Information

  • Brand: FIRST COMPANY
  • Manufacturer Part Number: 19HX5-C

Technical Specifications

  • A2L Compatible: No
  • BTU: 18000
  • BTU Cooling Rating: 18000 Btu/h
  • BTU Heat Rating: 17000 Btu/h
  • CFM: 600 ft3/min
  • Casing: Uncased
  • Coating: Galvanized
  • Collection: HX Series
  • Configuration: Horizontal
  • Depth: 21 in
  • ETL Listed: Yes
  • Height: 10-3/8 in
  • Liquid Line (OD): 3/8 in
  • MBH: 18
  • Material: Aluminum, Copper, Steel
  • Refrigerant: R-410A
  • Refrigeration Control Type: Piston
  • Suction Line (OD): 5/8 in
  • Tonnage: 1.5 Ton
  • UL Listed: No
  • Width: 37-1/4 in
