First Company 18HX5 HX Series 1.5 Ton Horizontal Fan Coil 5kW Heat

Product Description

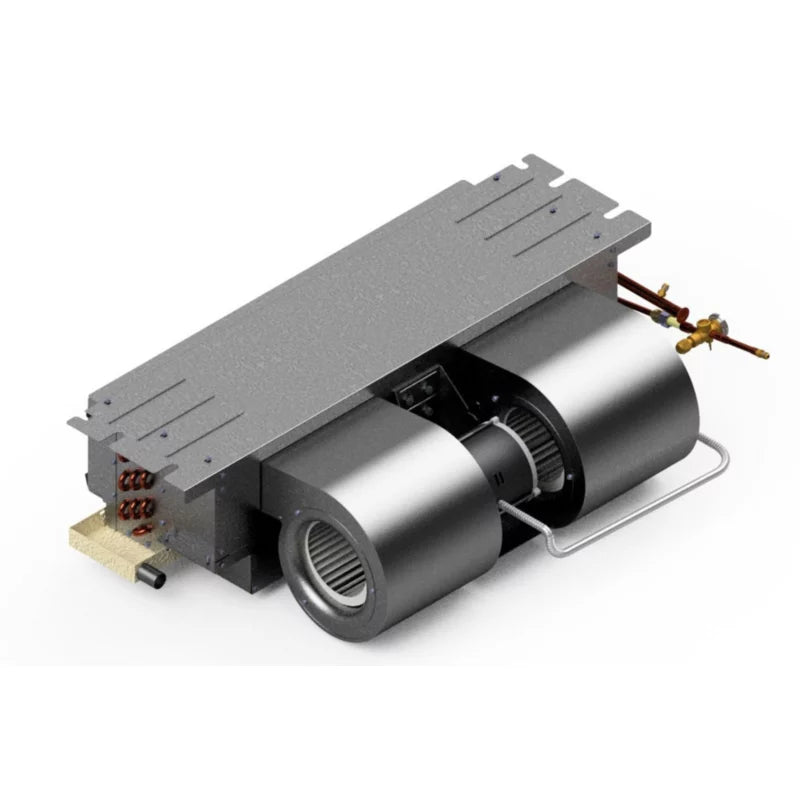

The First Company HX Series is designed as a horizontal fan coil unit with model number 18HX5. This unit is suitable for both heating and cooling applications, featuring electric heat capabilities at five kilowatts. The fan coil is engineered for efficiency and space conservation, measuring ten inches in height, thirty-seven and a quarter inches in width, and twenty-one inches in depth.

• Horizontal recessed design
• Includes 240/24V transformer
• Pre-wired for easy installation

Product Highlights

The First Company HX Series offers a compact design that saves floor space while delivering reliable performance for HVAC applications.

Product Information

Standard Information

• Brand: First Company
• Model Number: 18HX5

Technical Specifications

• Performance Capacity: 1.5 Tons
• Electrical Data Phase: 1
• Voltage: 208/240 Volts
• Cooling BTU: 18000
• Heating BTU: 17000
• Product Depth: 21 Inches
• Product Width: 37.25 Inches
• Product Height: 10 Inches
• Electrical Data Frequency: 60 Hz
• Shipping Weight: 58 Pounds
• Minimum Air Flow: 600 CFM
• AHRI Certified: Yes
• Warranty: 1 Year
• Drain Outlet Diameter: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Suction Connection Size: 5/8 Inch
• Electric Heat Capacity: 5 kW
• Refrigerant Type: R410A
• Minimum Circuit Ampacity: 22.8 Amps
• Recommended Breaker Size: 35 Amps
