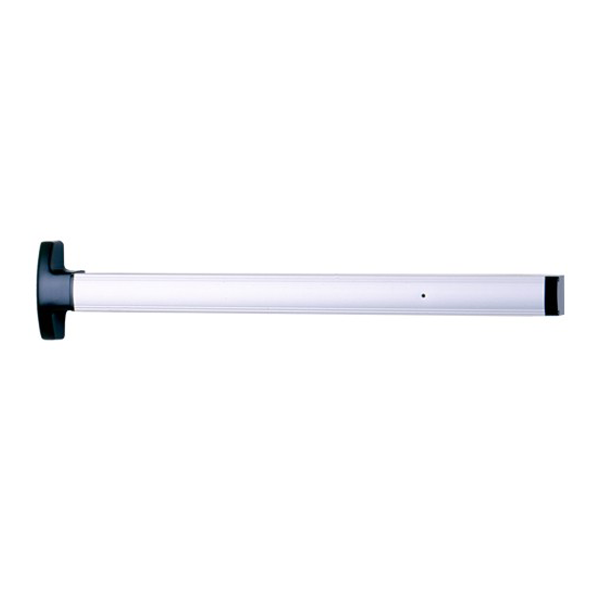

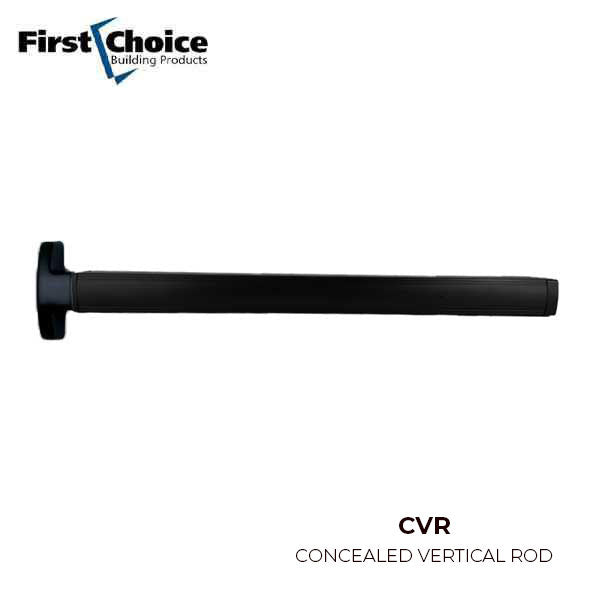

First Choice Building Products 369036-BL Narrow Stile Concealed Vertical Rod Exit 36 Inch

Product Description

The First Choice Building Products 369036-BL is a concealed vertical rod exit device designed for narrow stile applications. This device is suitable for aluminum storefront doors and requires no trim. It meets ANSI Grade 1 standards, rated for five hundred thousand cycles, and is UL listed for reliability.

• ANSI Grade 1 certified for durability
• UL listed for safety and security
• Features two steel vertical rods with steel latch bolts

Product Highlights

This exit device is meant for commercial use, ensuring strong security and easy operation in emergency exits.

Product Information

Standard Information

• Product Type: Exit Device
• Manufacturer: First Choice Building Products

Technical Specifications

• SKU: 369036-BL
• Grade: Grade 1
• Installation: Commercial
• Base Material: Aluminum
• ANSI Number: 156.3
• Device Type: Concealed Vertical Rod
• Device Length: 36 inches
• Hand: Non-Handed
• Door Material: Metal or Wood
• Door Width: 36 inches
• Key Cylinder Preparation: No Trim - Exit Only
• Application: Narrow Stile Application
• Bolt: Half Inch Bottom Latch Bolt Throw
• Device Lengths: 36 inches (914 mm)
• Limited Manufacturer Warranty: 2 Years
• Fire Rated: No
• Dimensions: 2 and a half inches Push Bar Height
• Centerline Height Typical: 41 and 5/16 inches
• Center Case Cover: 6 and 5/8 inches Tall by 1 and 1/4 inches Wide
• Certifications: ANSI A156.3 - 2008 Grade 1
