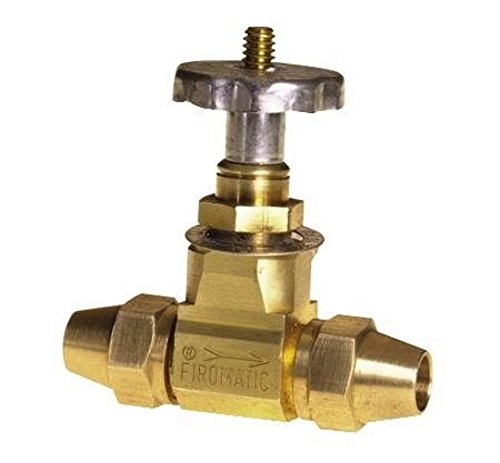

Fir-O-Matic B205F 1/2 Flare Fusible Safety Valve

Product Description

The Fir-O-Matic B205F 1/2 Flare Fusible Safety Valve is specifically designed to reduce fire damage by shutting off the flow of oil from the oil tank in the event of a fire. This safety valve conforms to UL/ULC 842 and is recognized in both the US and Canada. It is required by code in residential oil heating installations in accordance with NFPA 31.

• Fusible inline valve
• Heavy-duty brass design
• Ideal for use when fusible tank valve cannot be installed

Product Highlights

This safety valve is made with heavy-duty, high-quality brass and is suitable for use with no. 2 fuel oil, kerosene, and up to 20% biodiesel blend. Each valve includes a unique part number identification ring and directional oil flow embossing for easy installation and identification. The seal stem uses a double seal washer/O-Ring system with high-grade Viton equivalent materials.

Product Information

Standard Information

• Brand: Fir-O-Matic
• MPN: B205F
• Manufacturer: APR Supply Co.
• UPC: 685728607108

Technical Specifications

• Product Dimension: 2.0 inches L x 1.75 inches W x 1.0 inch H
• Weight: 0.51588108 lbs (packaged), 0.29982832 lbs (item)
• Compliance: UL/ULC 842
• Materials: High-grade brass, Viton equivalent materials
• Country of Origin: United States
