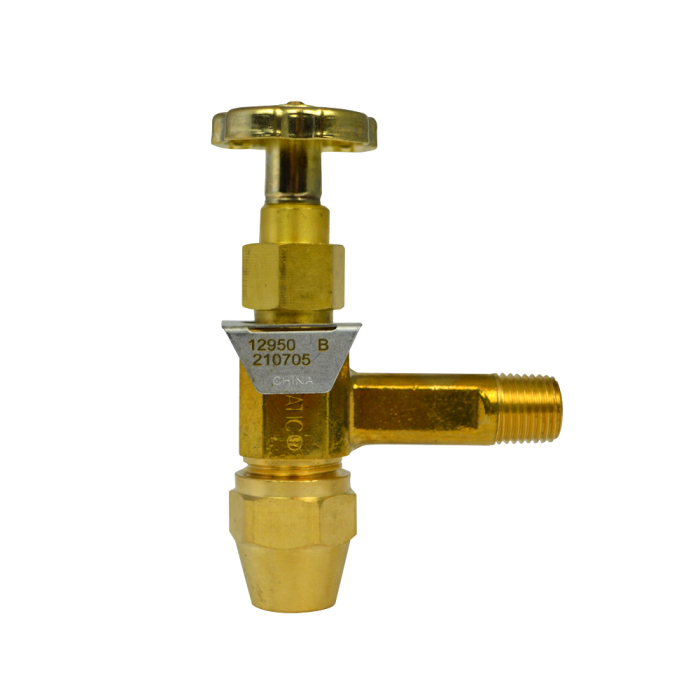

Firomatic 12950 Fusible Burner Angle Valve - 1/2 ODF x 1/4 MPT

Product Description

The Firomatic 12950 is a fusible burner angle valve intended for oil product applications. This reliable valve is made from brass and features a 1/2 flare inlet connection and a 1/4 NPT outlet connection. It includes a fusible element that melts at two hundred degrees Fahrenheit, which automatically shuts off the fuel flow to prevent unsafe conditions. This valve is suitable for liquid heating fuels, including renewable fuels like B100 and R100.

• Fusible element melts at 200°F to stop fuel flow.
• Constructed from brass with 1/2 flare inlet and 1/4 NPT outlet.
• UL Listed with cUlus 842 Certification for safety.

Product Highlights

This valve is designed to prevent overpressure conditions and features an inlet pressure maximum of ten PSI, ensuring safe operation in various heating scenarios.

Product Information

Standard Information

• Brand: Firomatic
• Model Number: B-204-CF

Technical Specifications

• Inlet Connection: 1/2 Flare
• Outlet Connection: 1/4 NPT
• Maximum Inlet Pressure: 10 PSI
• Temperature Rating: 200°F
• Material: Brass
• Shipping Weight: 0.45
• Shipping Dimensions: Width 4.20, Length 5.70, Height 1.00
• UPC: 045558133862
