Product Description

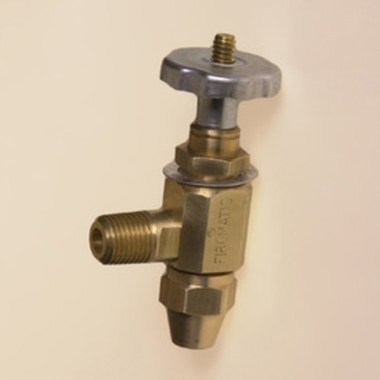

The FIROMATIC 12910 Fire Safety Fusible Burner Valve is essential for controlling fuel flow in case of fire or high temperatures. This valve stops fuel from flowing automatically when exposed to fire, helping to minimize damage. Constructed from durable brass, the valve indicates fuel flow direction with an embossed arrow. It is designed with a double-seal washer and O-ring system made from high-quality materials, ensuring reliability and safety. This valve works with various liquid heating fuels, including renewable options like B100 and R100. The valve meets UL Listing standards and has cULus 842 Certification, which makes it suitable for use in both the US and Canada. It operates effectively up to a maximum pressure of ten PSI and activates at two hundred degrees Fahrenheit.
- Shuts off fuel flow automatically during a fire, limiting potential damage.
- Certified to cULus 842 standards for use in both US and Canada.
- Compatible with a range of fuels, including renewable options up to B100/R100.
Product Highlights
This burner valve enhances fire safety in heating applications by automatically stopping fuel flow when necessary.
Product Information
Standard Information
-
Brand: FIROMATIC
-
MPN: 12910
Technical Specifications
-
Maximum Pressure Rating: 10 PSI
-
Certification: cULus MH 46634, UL842
-
Fuel Compatibility: Liquid heating fuels including renewable fuels to B100/R100
-
Inlet Connection: 3/8 inch or 1/2 inch ODF flare
-
Outlet Connection: 1/4 inch MPT
-
Temperature Activation: 200°F (Fusible Link)
