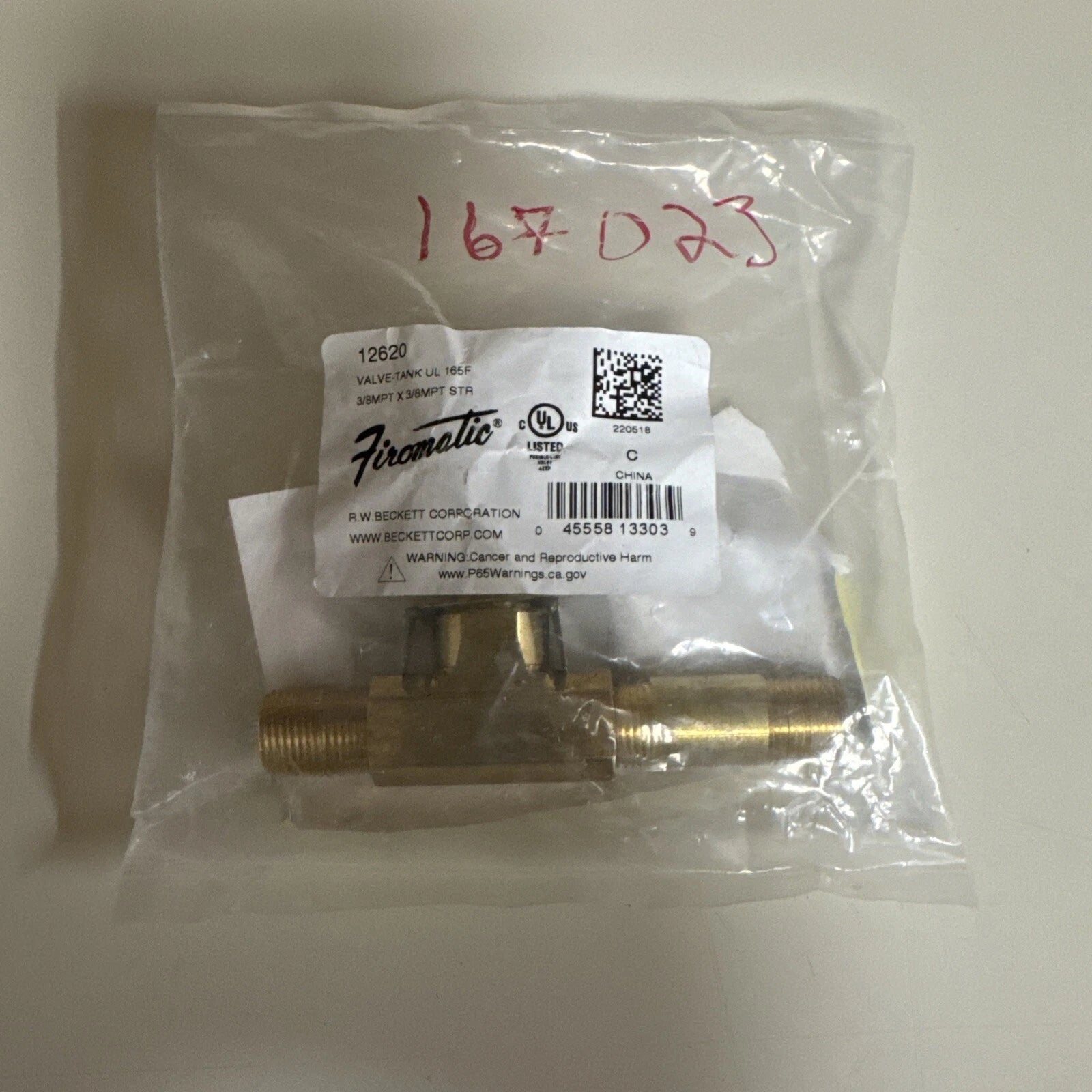

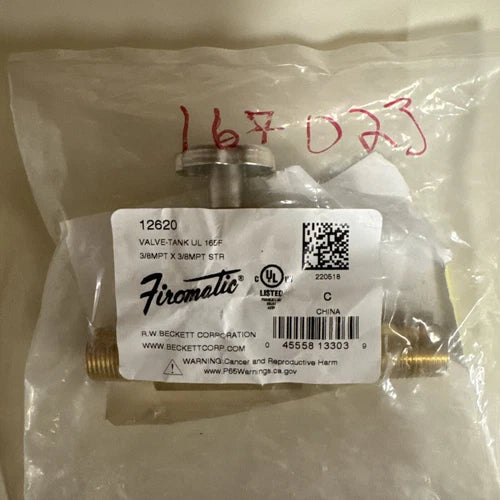

Firomatic 12620 - 3/8 MPT Fusible Oil Tank Valve

Product Description

The FIROMATIC 12620 is a fusible oil tank valve designed to automatically stop fuel flow in case of fire or high temperatures. It fits at the outlet of most oil tanks and is compatible with liquid heating fuels, including renewable fuels up to B100/R100. This valve features a straight configuration with three-eighths MPT inlet and outlet connections and is suitable for manual operation. Designed for side mounting, it is especially effective with older oil tank models.

• Stops fuel flow automatically during fire or extreme heat.
• Complies with UL and cULus 842 standards for use in the US and Canada.
• Meets NFPA 31 and CSA B139 Series: 19 codes for various installations.

Product Highlights

This valve is a crucial safety device for oil tanks, ensuring effective fuel control under emergency conditions.

Product Information

Standard Information

• Part Number: 12620
• Description: 3/8 MPT Inlet X 3/8 MPT Outlet - Straight

Technical Specifications

• Temperature Rating: 165 degrees Fahrenheit
• Brand: Firomatic
• Product Type: Valve
• Size: 3/8 inches
• Connection Type: MNPT x MNPT
• Valve Operation: Manual
